LCN 4841 EDA AL Auto Equalizer Pneumatically Powered - Parallel arm (Push Side)

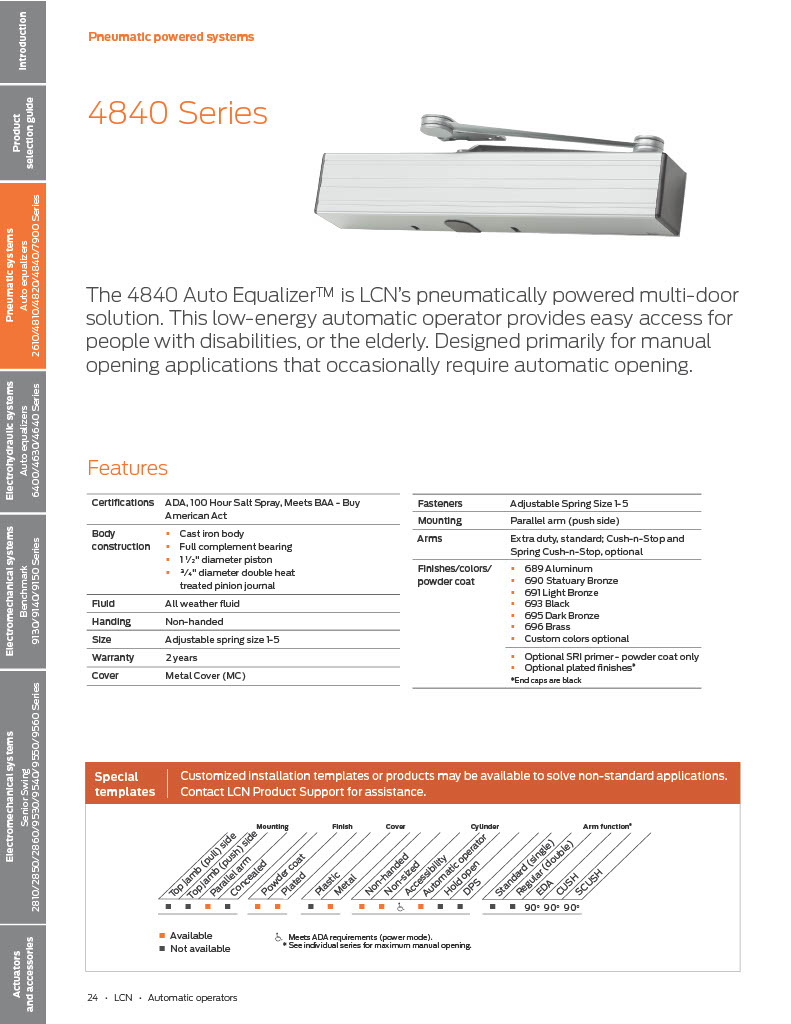

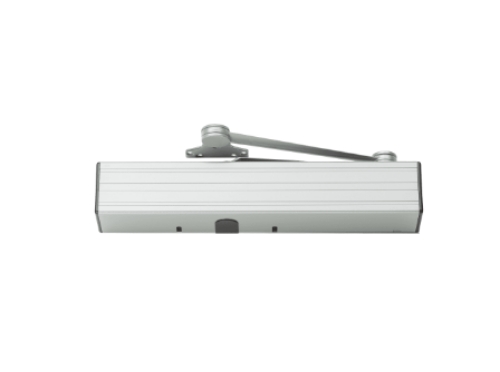

LCN 4841 EDA Auto Equalizer Pneumatically Powered

*Parallel arm (Push Side)*

Non-sized:4840 Series cylinder is adjustable from size 1 through size 5 and is shipped set to size 3

Closing power of 4840 Series closers may be increased 50%

Requires control box with integral compressor or control box using auxiliary air supply.

Certifications Grade:1

ANSI A117.1, A156.19 UL228, ADA, 100 Hour Salt Spray, Meets BAABuy American Act

Body Construction:Cast Iron Body

Full Complement Bearing1-1/2˝ Diameter Piston - 3/4˝ Diameter Double Heat Treated Pinion Journal

Arm: Extra heavy duty, standard.

Fluid:All Weather Fluid

Fasteners:Wood and machine screws

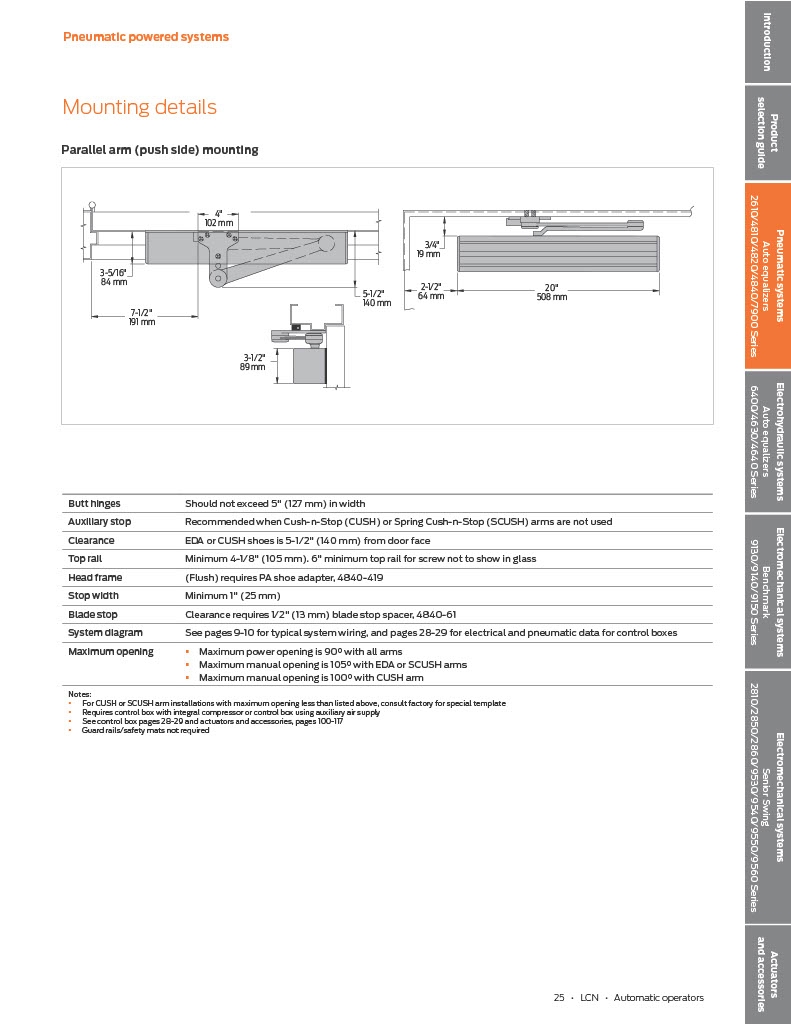

Mounting:Parallel arm (Push Side)

Top Rail:Minimum 4-1/8˝ (105 mm). 6˝ minimum top rail for screw not to show in glass

Stop Width:Minimum 1˝ (25 mm)
