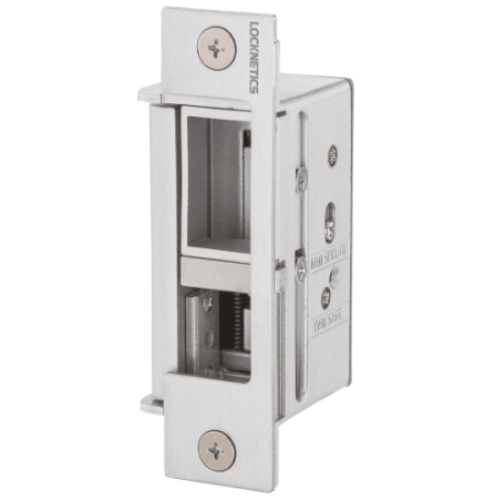

Locknetics MDS100-32D MDS Series 100 Model Electric Strike, 1 Inch Deep, 5 Faceplates

Locknetics MDS100-32D MDS Series 100 Model Electric Strike, 1 Inch Deep, 5 Faceplates, Satin Stainless Steel

Product name:MDS100-32D Product description:E-strike - 1" deep; 5 face plates Finish: 630/US32D Voltage:12/24 VDC UPC:043156645985

Features and benefits:

Heavy duty design with vertical adjustments for flexibilityField selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw reversal on non-fire rated modelsIncluded trim piece for installation flexibility and improved appearanceMounting tabs included for aluminum frame installation on non-fire rated doors in non-fire rated applicationsFive stainless steel face plates included for optional flexibility (4 7⁄8" x 1 1 ⁄4" with differing cutouts)Field selectable 12/24 VDCBuilt-in voltage spike suppressor includedOptions:

Fire ratingLatch bolt monitoring availableAccessories:

 Buzzer rectifier with timer (TBR-100)Faceplate kits in 613/US10B finishMetal template kit

Specifications:

UL1034 Burglar-resistant electric locking mechanisms, listedUL294 (indoor), listedStatic strength of 1500 lb. static load, UL certifiedDynamic strength of 70 ft.-lb. dynamic load, UL certified250,000 cycles endurance, UL certifiedElectrical:

Dual voltage:  12VDC @ 0.3A/24VDC @ 0.15AStrike dimensions:

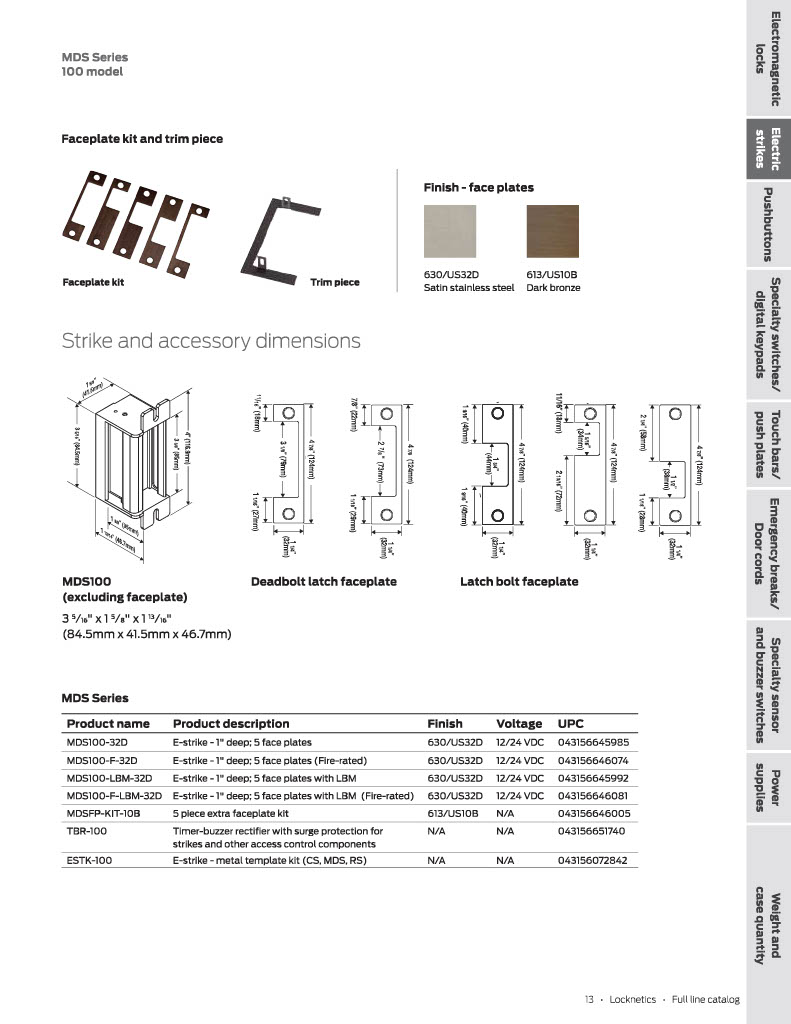

MDS100:(excluding faceplate) 3 5⁄16" x 1 5⁄8" x 1 13⁄16" (84.5mm x 41.5mm x 46.7mm)
