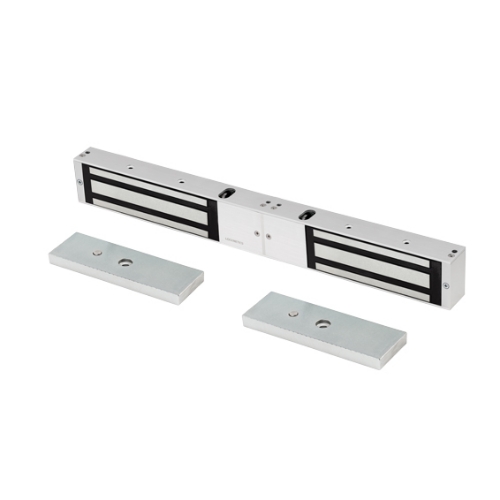

Locknetics MG1200-2 Double Maglock, 1200Lb Holding Force, 12/24VDC, Satin Stainless Steel

Locknetics MG1200-2 Double Maglock, 1200Lb Holding Force, 12/24VDC, Satin Stainless Steel

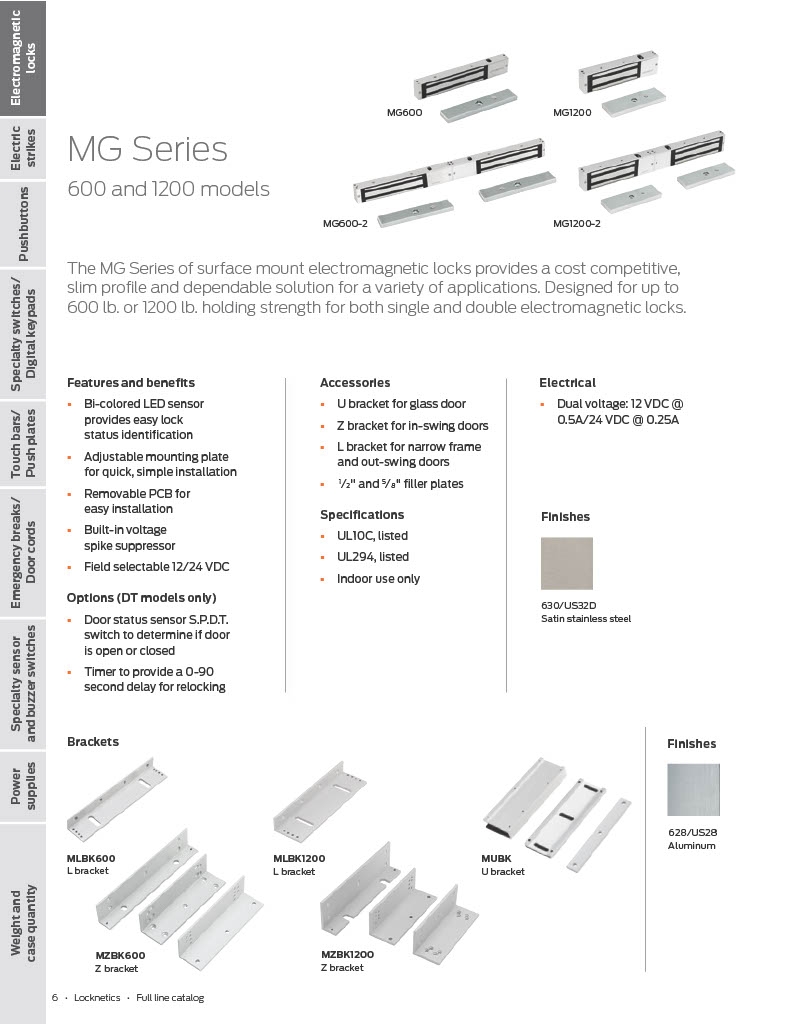

The MG Series of surface mount electromagnetic locks provides a dependable, cost competitive, slim profile solution. It's offered in single and double lock configurations for both standard and Door Status Sensor with Timer (DT) models. The MG Series covers a wide range of applications with holding strengths of up to 600 or 1200 pounds.

Features and benefits:

1200 lb. hold force model for high security applicationsBi-colored LED sensor provides easy lock status identificationAdjustable mounting plate for quick, simple installationRemovable Printed Circuit Board (PCB) for easy configurationBuilt-in voltage spike suppressorField selectable 12/24 VDCStainless steel housing in 630 satin finish5-year limited warrantyOptional accessories:U bracket for glass door

Z bracket for inswinging doorsL bracket for narrow frame and outswinging doorsFiller plates

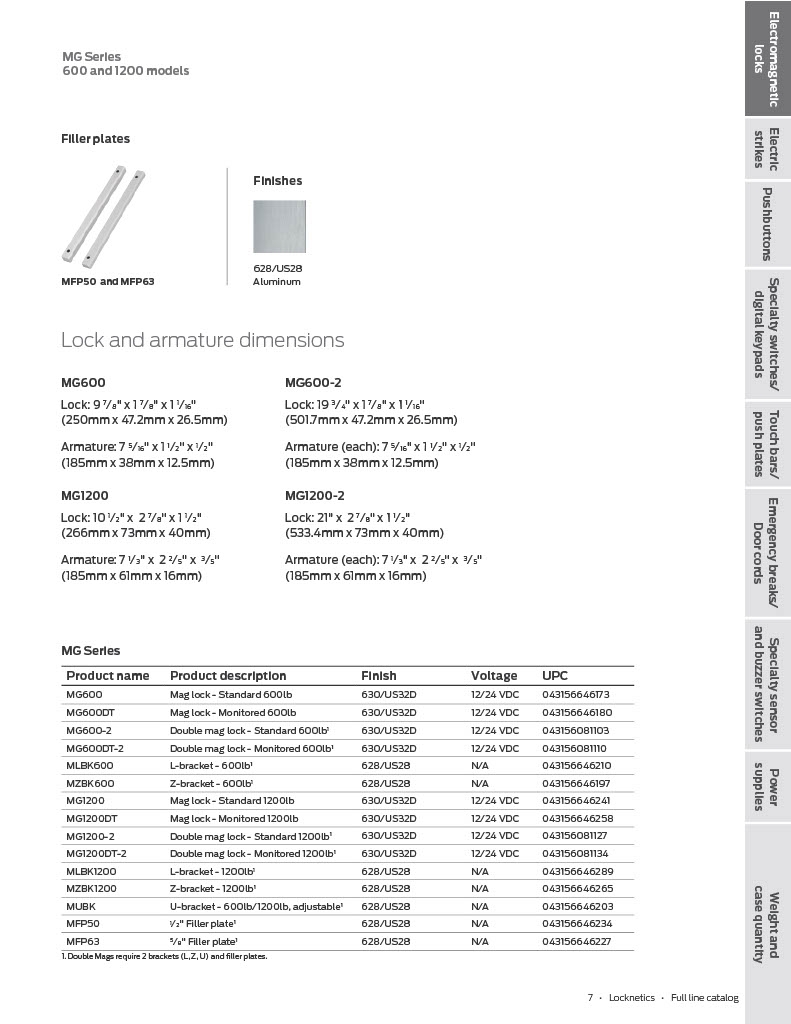

Holding force:1200 LB. Input voltage:(field selected) 12/24 VDC Current draw:(amps standard unit) 12 VDC @ 1A 24 VDC @ 0.5A BHMA finish:630 Satin Stainless Steel Height:2 7⁄8"  (73mm) Length:21"  (533.4mm) Depth:1 1⁄2" (40mm) Armature dimensions (each):7 1 ⁄3" x  2 2⁄5" x  3⁄5"   (185mm x 61mm x 16mm) Weight: 11 lbs. Certifications:UL10C listed, UL294 listed, indoor use only
