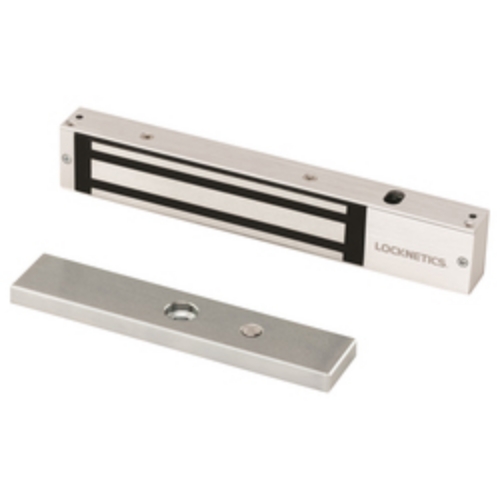

Locknetics MG600 Maglock, 600Lb Holding Force, 12/24VDC, Satin Stainless Steel

Locknetics MG600 Maglock, 600Lb Holding Force, 12/24VDC, Satin Stainless Steel

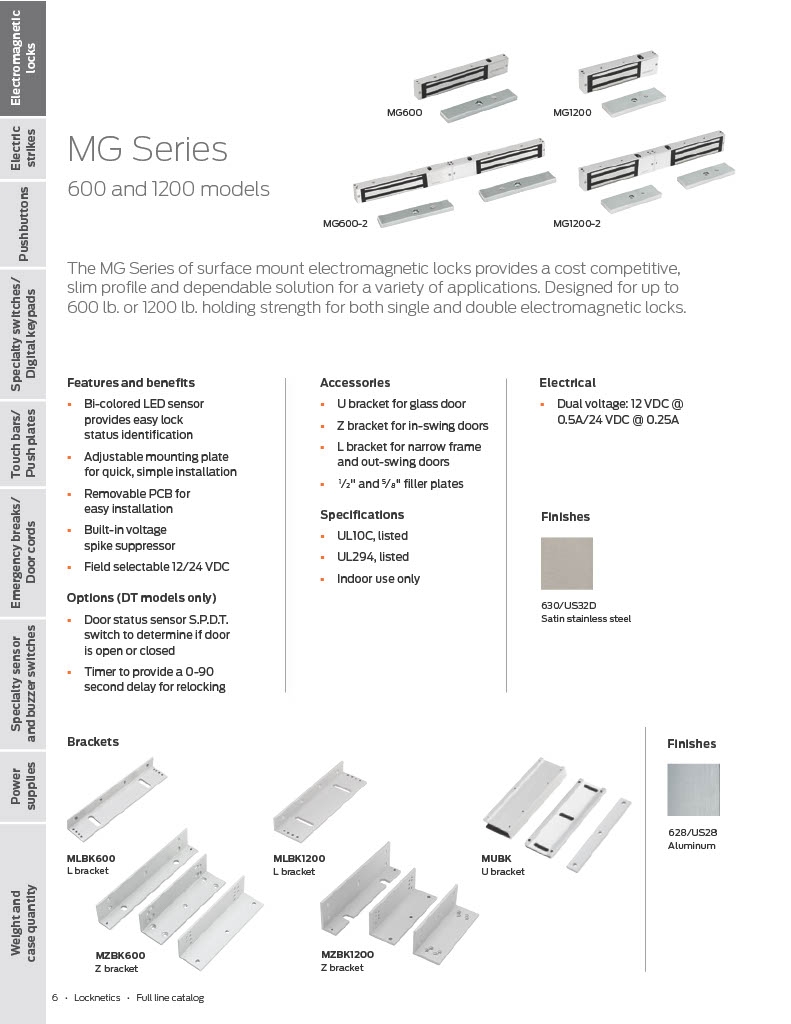

The MG Series of surface mount electromagnetic locks provides a dependable, cost competitive, slim profile solution. It's offered in single and double lock configurations for both standard and Door Status Sensor with Timer (DT) models. The MG Series covers a wide range of applications with holding strengths of up to 600 or 1200 pounds.

Features and benefits:

600 lb. hold force model for traffic control applications1200 lb. hold force model for high security applicationsBi-colored LED sensor provides easy lock status identificationAdjustable mounting plate for quick, simple installationRemovable Printed Circuit Board (PCB) for easy configurationBuilt-in voltage spike suppressorField selectable 12/24 VDCStainless steel housing in 630 satin finish5-year limited warrantyOptional accessories:U bracket for glass door

Z bracket for inswinging doorsL bracket for narrow frame and outswinging doorsFiller plates

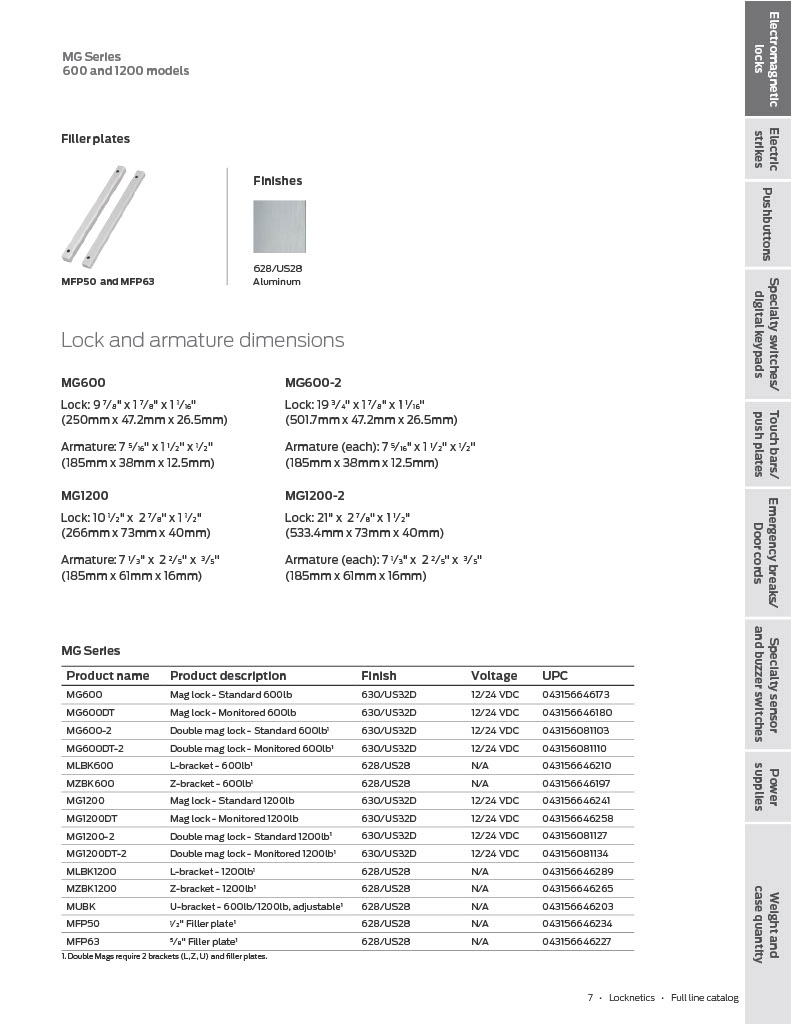

Holding force:600 lb. Input voltage:(field selected) 12/24 VDC Current draw:(amps standard unit) 12 VDC @ 0.5A 24 VDC @ 0.26A BHMA finish:630 Satin Stainless Steel Height:1 7 ⁄8"  (47.2mm) 1 7 ⁄8"  (47.2mm) Length:9 7 ⁄8"  (250mm) 19 3⁄4"  (501.7mm)  Depth:1 1 ⁄16" (26.5mm) 1 1 ⁄16" (26.5mm) Armature dimensions (each):7 5⁄16" x 1 1 ⁄2" x 1 ⁄2"    (185mm x 38mm x 12.5mm) Weight:2.22 lbs. Certifications:UL10C listed, UL294 listed, indoor use only
