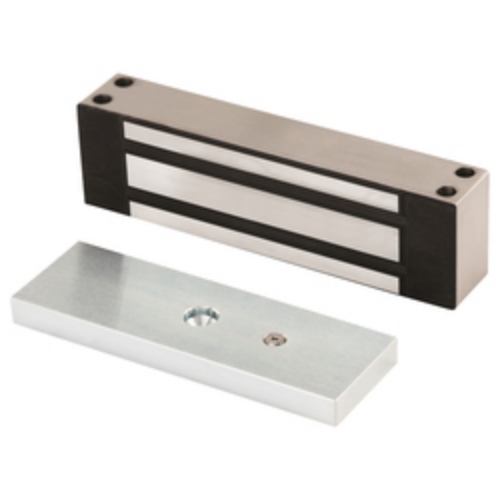

Locknetics WMG1200 Weatherproof Maglock, 1200Lb Holding Force, 12/24VDC, Satin Stainless Steel

Locknetics WMG1200 Weatherproof Maglock, 1200Lb Holding Force, 12/24VDC, Satin Stainless Steel

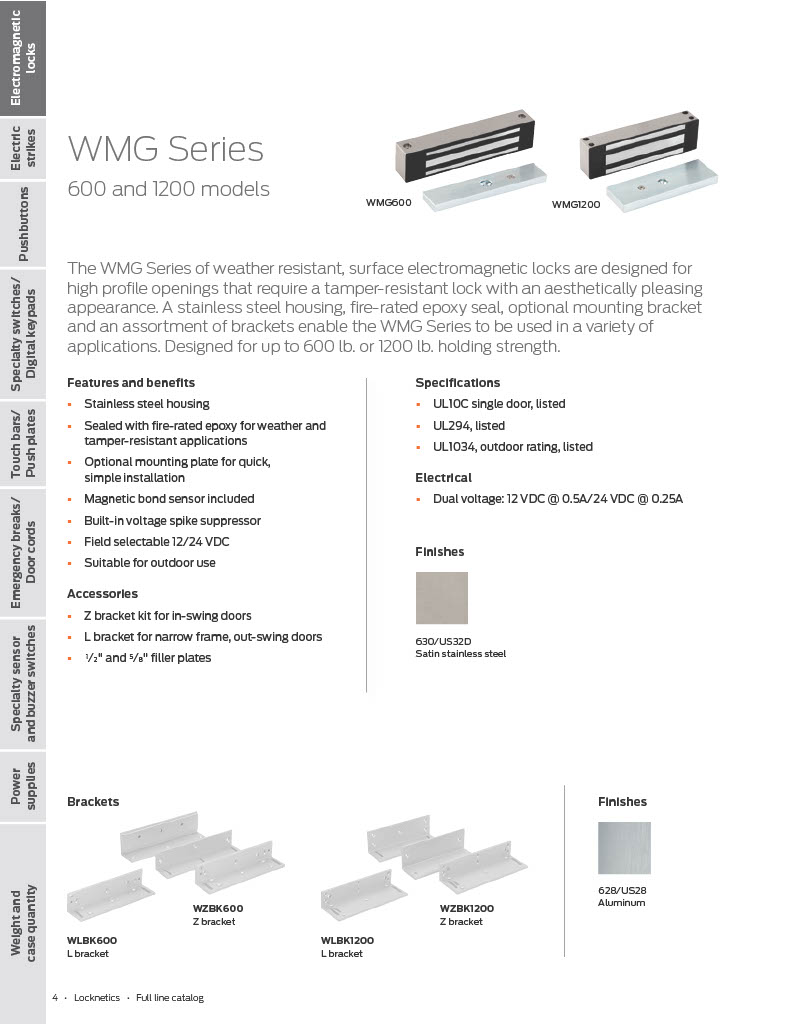

The WMG Series of weather resistant, surface electromagnetic locks are designed for high profile openings that require a tamper-resistant lock with an aesthetically pleasing appearance. A stainless steel housing, fire-rated epoxy seal, optional mounting bracket and an assortment of brackets enable the WMG Series to be used in a variety of applications. Designed for up to 600 lb. or 1200 lb. holding strength.Features and benefits:

Stainless steel housingSealed with fire-rated epoxy for weather and tamper-resistant applicationsOptional mounting plate for quick, simple installationMagnetic bond sensor includedBuilt-in voltage spike suppressorField selectable 12/24 VDCSuitable for outdoor useAccessories:

****Z bracket kit for in-swing doorsL bracket for narrow frame, out-swing doors1⁄2" and 5⁄8" filler plates

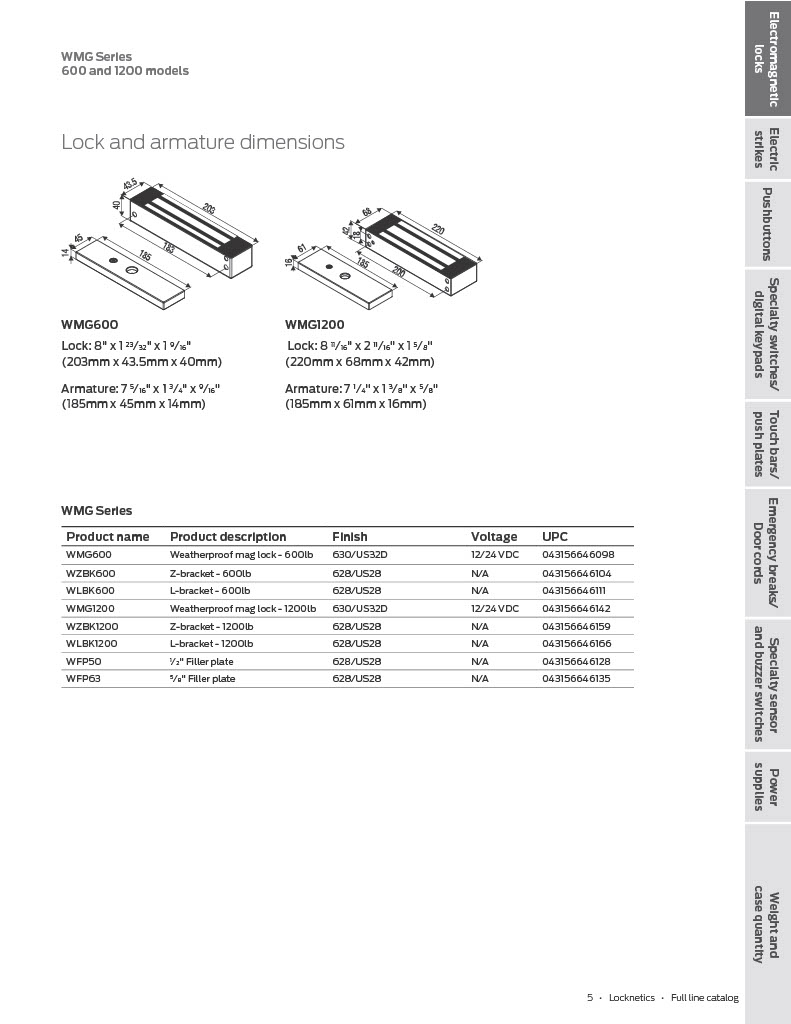

UL10C single door, listedUL294, listedUL1034, outdoor rating, listedElectrical:Dual voltage: 12 VDC @ 0.5A/24 VDC @ 0.25A Finishes:630/US32D, Satin stainless steel Brackets:WLBK600 - L bracket, WZBK600 - Z bracket, WLBK1200 - L bracket, WZBK1200 - Z bracket WMG1200*Lock and armature dimensions: Lock:8 11⁄16" x 2 11⁄16" x 1 5⁄8" (220mm x 68mm x 42mm) *Armature:7 1⁄4" x 1 3⁄8" x 5⁄8" (185mm x 61mm x 16mm)
