Nortek - Linear 212W Indoor / Outdoor Flush-mount Weather Resistant Keypad

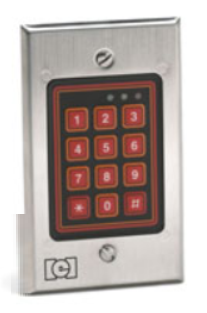

Nortek 212W Indoor / Outdoor Flush-mount Weather Resistant Keypad

The w style features a sealed membrane keypad that allows the keys to be cleaned and resist moisture.

There are three LED's to indicate operation status and provide the user with visual PIN entry confirmation.

The w style keypad mounts to most standard single-gang electrical back boxes.

**Features

120 usersSingle-gang design**

Indoor/outdoor use

Functionality mode:212, 2321 SPDT 2 amp relay and three 50mA negative voltage outputs With 212 mode;Optional 293 relay board converts 3 voltage outputs to SPDT relays

Specifications * *Dimensions: 2.75″ W x 4.50″ H x 1.13″ D

Dimensions including the 293 relay module:2.75″ W x 4.50″ H x 1.675″ D Operating voltage: 12-24 VAC/DC - auto adjusting

Current draw:94 mA maximum (add 30 mA for each additional relay)

Temperature tolerance:-20F to 130F

Nortek 212w, 212w Nortek, 212w,Order number: 211222,211222,
