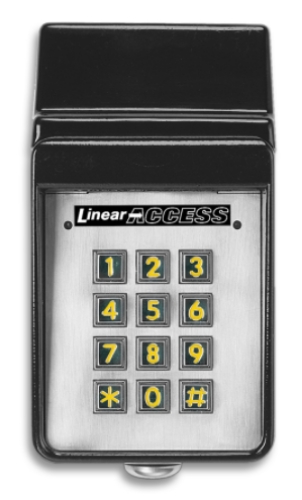

Nortek - Linear MDKP Exterior Wireless Keypad

Nortek Linear MDKP Exterior Wireless Keypad

Access codes are programmed into the access controller or receiver, the maximum number of codes possible depends on the receiver model used.

To operate the MDKP, a user simply enters a PIN followed by the # key, and the code is transmitted to the receiver for validation.

Downlighting can be turned on by pressing the # key twice; it remains on for 30 seconds or until a code is sent.

The MDKP can be mounted on either a wall or a gooseneck.

*Features * Internal antenna 1-6 digit PIN for each user Long life lithium battery Rugged cast aluminum housing Built-in downlight

Specifications

Power: 9-volt lithium battery Codes: 1,000,000+ (MegaCode format) Frequency: 318 MHz Battery Life: 5 years with 25 activations per day Operating Temperature: -22 Degree to +149 Degree  F (-30 Degree to +65 Degree C)

Dimensions: 4″ W x 7″ H x 3″ D (101.6 x 177.8 x 76.2 mm)

Accessories for use with the MDKP

GNB-1 Burial Mount Gooseneck GNC-1 Curb Mount Gooseneck

*Models compatible with the MDKP * AKR-1 Exterior Digital Keypad with Radio Receiver AM-RPR Remote Proximity Receiver AM-RRR Remote Radio Receiver MDR 1-Channel Receiver MDR-2 2-Channel Receiver MDRG 1-Channel Gate Receiver SMDRG 1-Channel Gate Receiver WOR Wiegand Output Receiver
