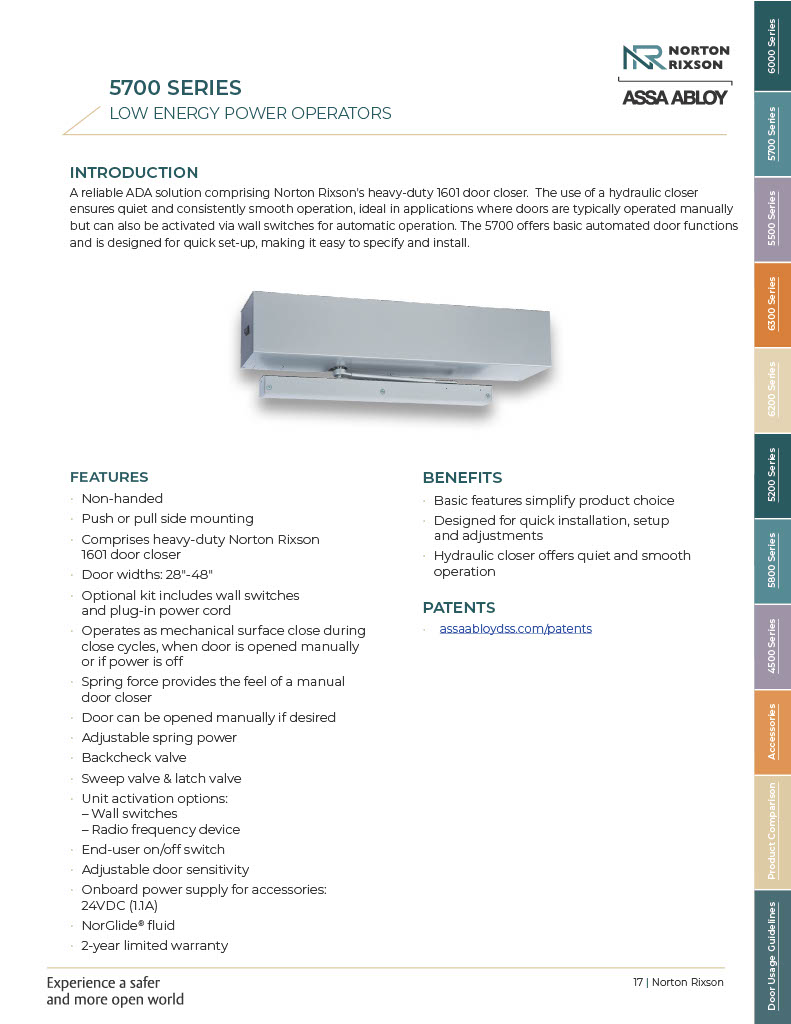

Norton Rixson 5740 Low Energy Door Operator, Surface Mount, Push or Pull Side, Slide Track or Top Jamb

Norton Rixson 5740 Low Energy Door Operator,

Surface Mount, Push or Pull Side, Slide Track or Top Jamb, Slide Track Arm and Double Lever Arm Regular

5740 Kit Includes: Operator Cover Push and Pull Arms

Features: Non-handedPush or pull side mounting

Comprises heavy-duty

Norton Rixson 1601 door closer

Door widths: 28"-48"

Optional kit includes wall switches and plug-in power cord

Operates as mechanical surface close during close cycles, when door is opened manually or if power is off

Spring force provides the feel of a manual door closer

Door can be opened manually if desiredAdjustable spring power

Backcheck valve

Sweep valve & latch valve

Unit activation options: Wall switches

Radio frequency device

End-user on/off switch

Adjustable door sensitivity

Onboard power supply for accessories: 24VDC (1.1A)

Benefits: Basic features simplify product choice Designed for quick installation, setup and adjustments Hydraulic closer offers quiet and smooth operation

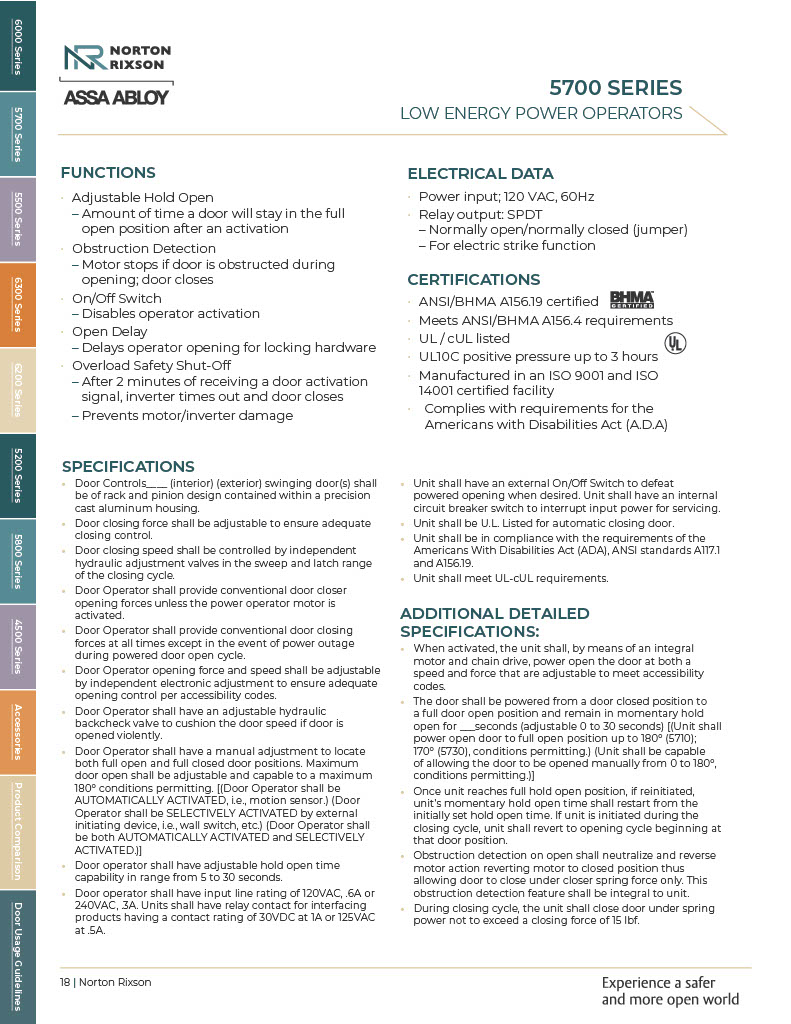

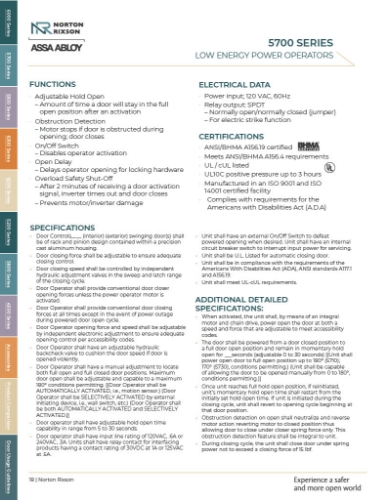

Functions: Adjustable Hold Open Amount of time a door will stay in the full open position after an activation Obstruction Detection Motor stops if door is obstructed during opening; door closes On/Off Switch

Disables operator activation

Open Delay Delays operator opening for locking hardware

Overload Safety Shut-Off After 2 minutes of receiving a door activation signal, inverter times out and door closes

Prevents motor/inverter damage

Specifications:

Door Controls (interior) (exterior) swinging door(s) shall be of rack and pinion design contained within a precision cast aluminum housing. Door closing force shall be adjustable to ensure adequate closing control. Door closing speed shall be controlled by independent hydraulic adjustment valves in the sweep and latch range of the closing cycle. Door Operator shall provide conventional door closer opening forces unless the power operator motor is activated. Door Operator shall provide conventional door closing forces at all times except in the event of power outage during powered door open cycle. Door Operator opening force and speed shall be adjustable by independent ele. adjustment to ensure adequate opening control per accessibility codes. Door Operator shall have an adjustable hydraulic backcheck valve to cushion the door speed if door is opened violently. Door Operator shall have a manual adjustment to locate both full open and full closed door positions. Maximum door open shall be adjustable and capable to a maximum 180 deg. conditions permitting. [(Door Operator shall be AUTOMATICALLY ACTIVATED, i.e., motion sensor.)(Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e., wall switch, etc.) (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]

Door operator shall have adjustable hold open time capability in range from 5 to 30 seconds. Door operator shall have input line rating of 120VAC, .6A or 240VAC, .3A. Units shall have relay contact for interfacing products having a contact rating of 30VDC at 1A or 125VAC at .5A.Unit shall have an external On/Off Switch to defeat powered opening when desired. Unit shall have an internal circuit breaker switch to interrupt input power for servicing. Unit shall be U.L. Listed for automatic closing door. Unit shall be in compliance with the requirements of the Americans With Disabilities Act (ADA), ANSI standards A117.1 and A156.19. Unit shall meet UL-cUL requirements.

Certifications: ANSI/BHMA A156.19 certified Meets ANSI/BHMA A156.4 requirements UL / cUL listed UL10C positive pressure up to 3 hours Manufactured in an ISO 9001 and ISO 14001 certified facility Complies with requirements for the Americans with Disabilities Act (A.D.A)

Electrical Data: Power input; 120 VAC, 60Hz

Relay output: SPDT Normally open/normally closed (jumper) For electric strike function

Additional Detailed Specifications: When activated, the unit shall, by means of an integral motor and chain drive, power open the door at both a speed and force that are adjustable to meet accessibility codes. The door shall be powered from a door closed position to a full door open position and remain in momentary hold open for seconds (adjustable 0 to 30 seconds) [(Unit shall power open door to full open position up to 180 deg. (5710); 170 deg. (5730), conditions permitting.) (Unit shall be capable of allowing the door to be opened manually from 0 to 180 deg., conditions permitting.)] Once unit reaches full hold open position, if reinitiated, units momentary hold open time shall restart from the initially set hold open time. If unit is initiated during the closing cycle, unit shall revert to opening cycle beginning at that door position. Obstruction detection on open shall neutralize and reverse motor action reverting motor to closed position thus allowing door to close under closer spring force only. This obstruction detection feature shall be integral to unit. During closing cycle, the unit shall close door under spring power not to exceed a closing force of 15 lbf. 2-year warranty (refer to current Norton price book for terms & conditions)

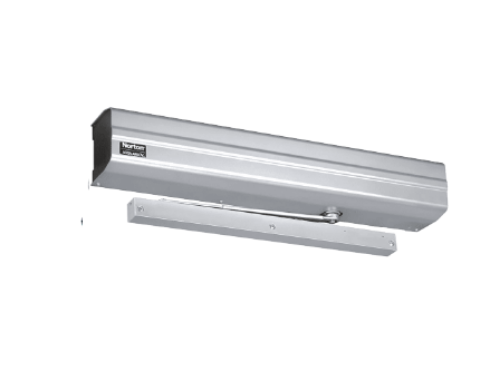

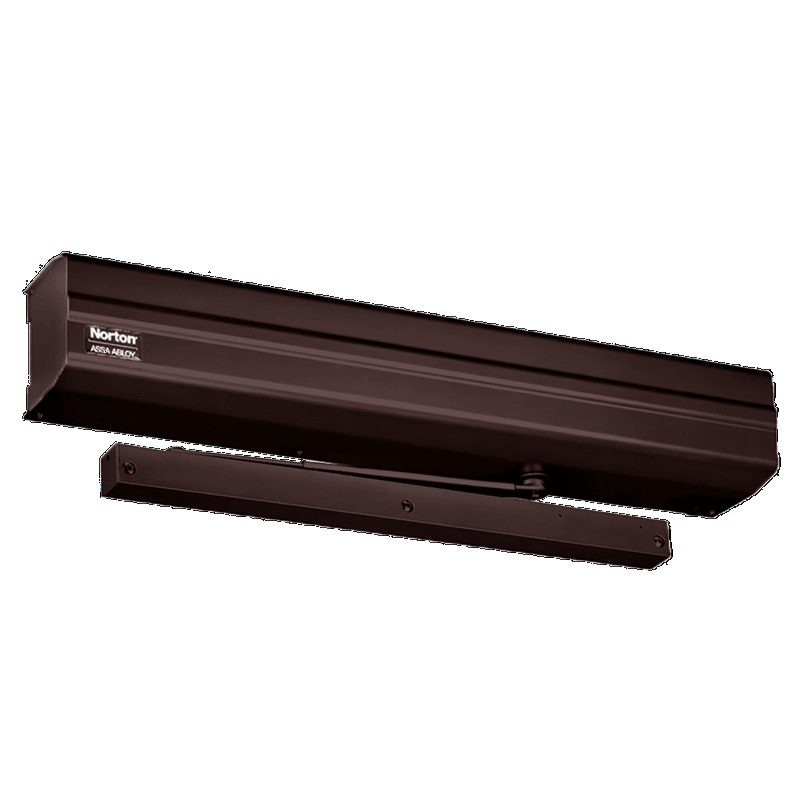

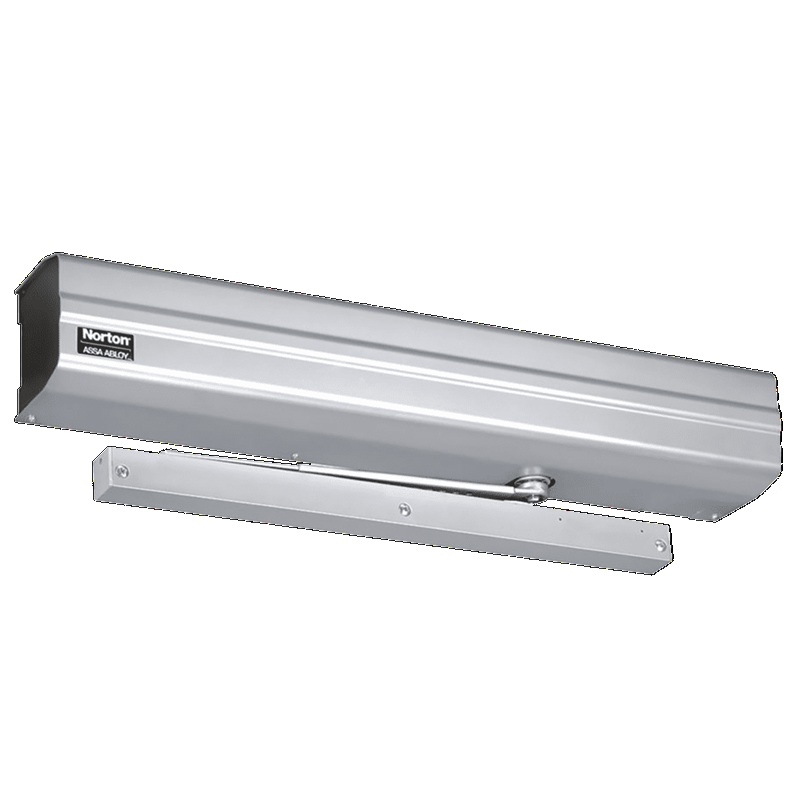

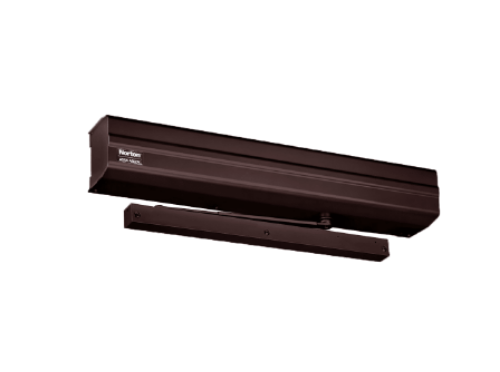

Model: Norton, 5740, 57410-RF1,690, 689, Aluminum
