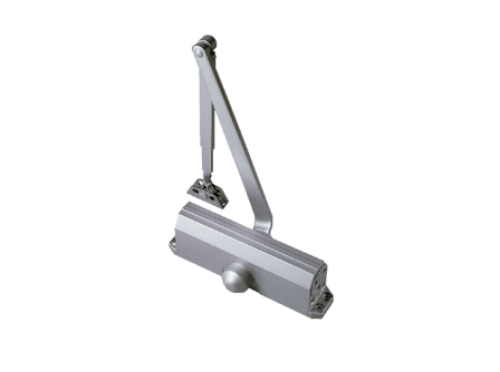

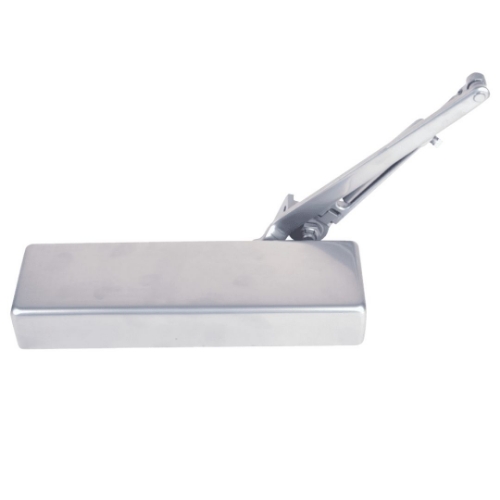

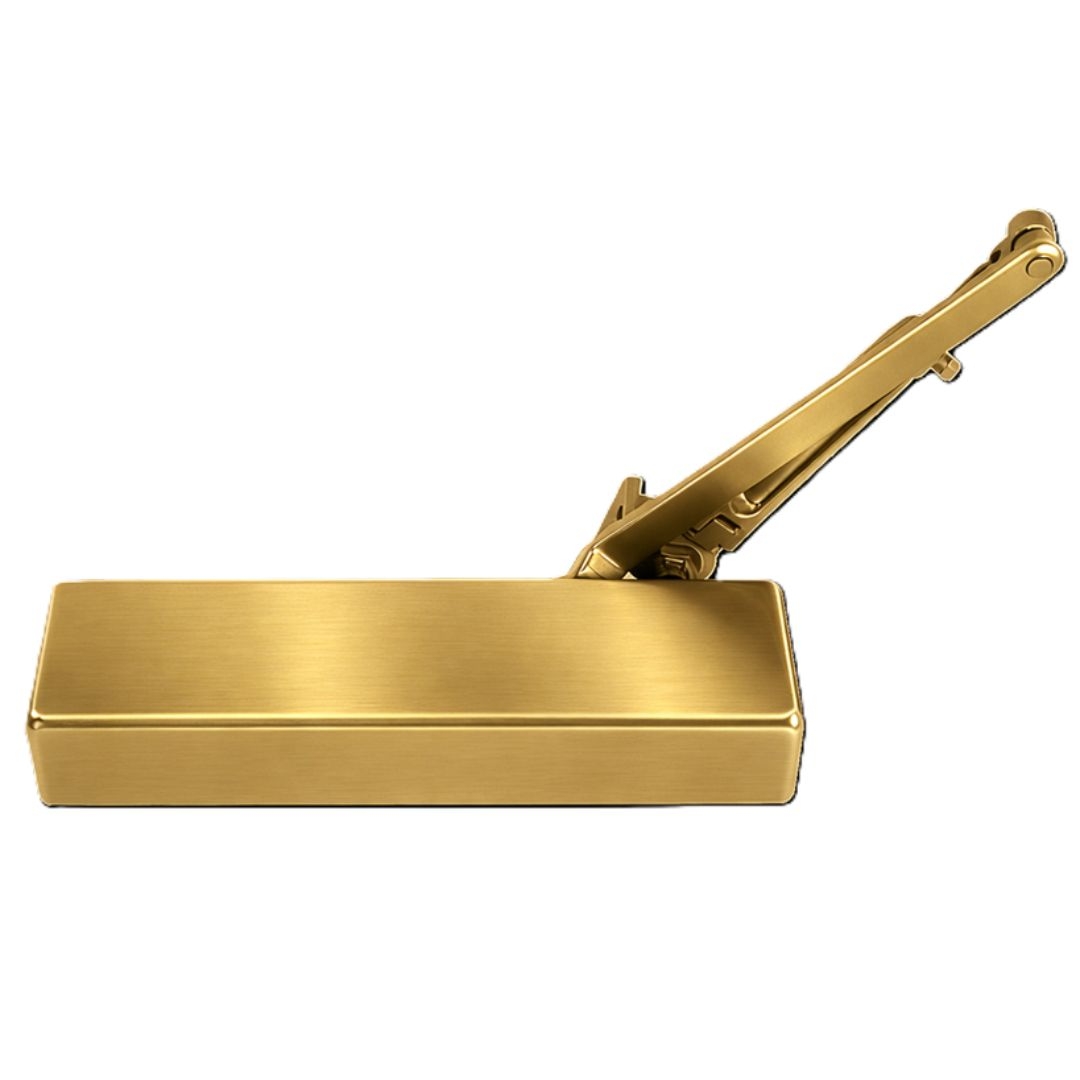

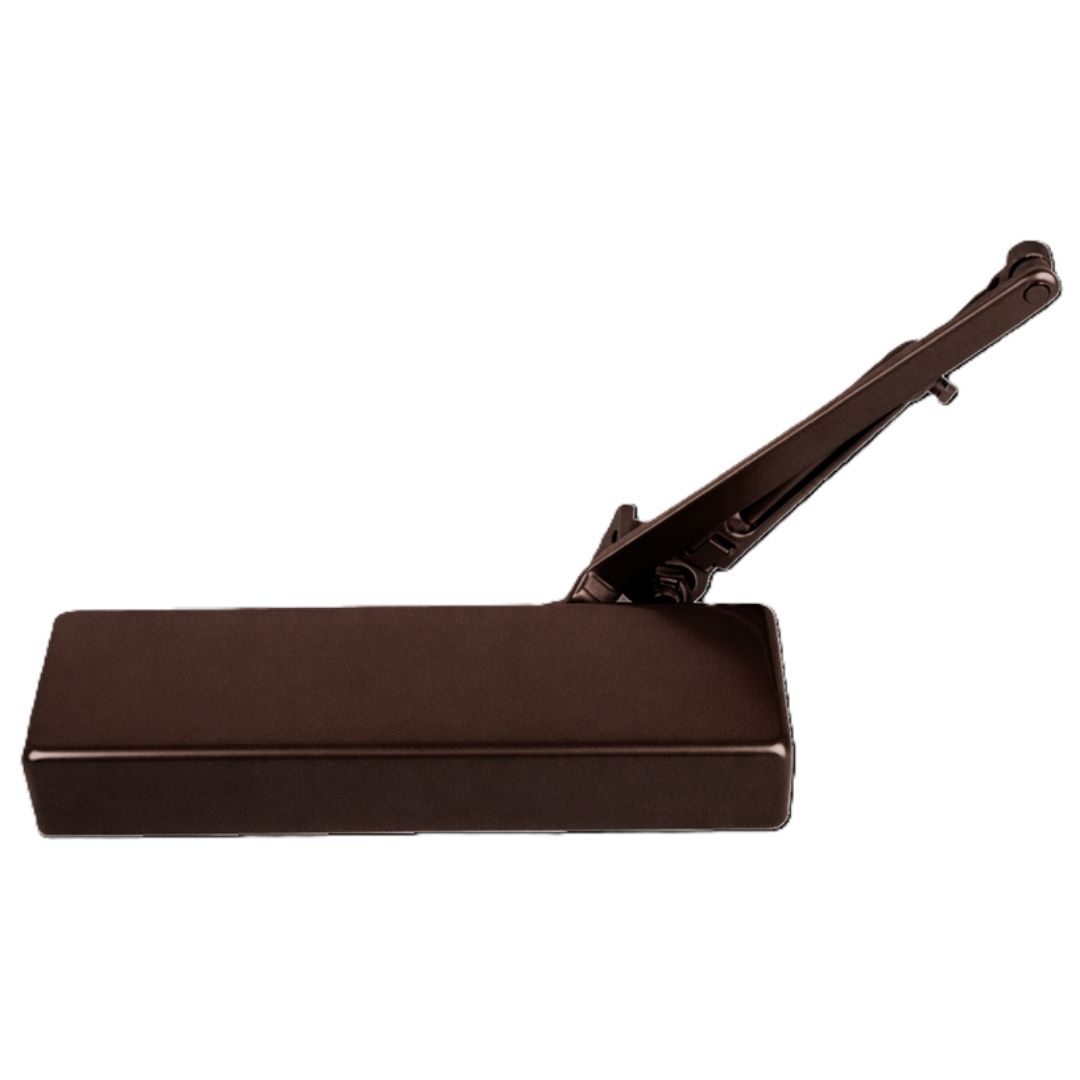

Norton Rixson J1601 Top Jamb Mount, Deep Reveal Closer

Norton Rixson *J1601 Top Jamb Mount, Deep Reveal Closer*

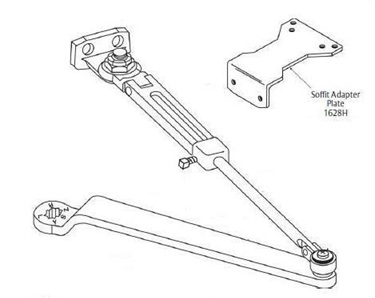

Deep Reveal Arm

Use top jamb J1600 closer for frame reveals from 3" to 7" (76 to 178mm).  Use top jamb J1600H closer for frame reveals from 2-3/4" to 6-3/4" (70 to 171mm).

Non-handed

Power Size:Multi-Sized Door Closer Adjustable through the power range of sizes 1 through 6.

Separate and independent, latch, sweep and backcheck intensity valves

*Sweep Speed:*Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

*Latch Speed:*Allows adjustment of door speed from approximately 10 Degree down to the door's fully closed position.

*Backcheck:*Provides control of the door in the opening cycle, beginning at approximately 75 Degree of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

All standard arm applications allow doors to swing 180 Degree, conditions permitting

15-year limited warranty

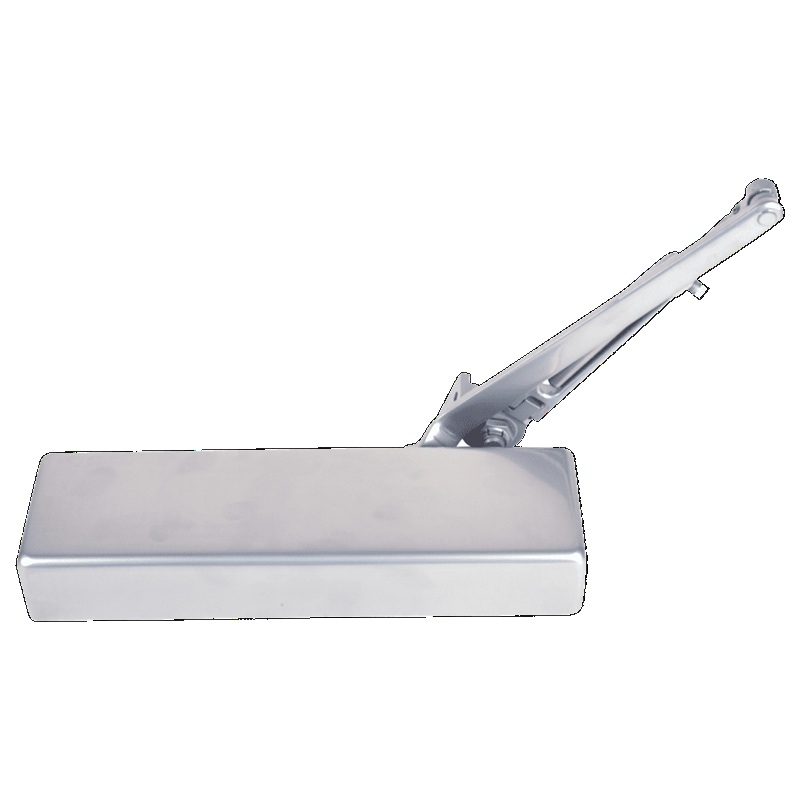

Model: Norton Rixson Door Closer, J1601, J1601H, 689, Silver Aluminum PainHed, J1601689, J1601H689

Aluminum Alloy Housing:Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interaction with steelcomponents and operating conditions.

*Rack & Pinion Operation:*Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not limit door swing.

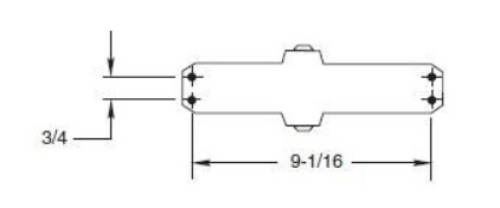

2-7/8" (73mm) projection

1-3/8" (35mm) diameter piston

5/8" (16mm) diameter pinion journals

Complicance Standards

ANSI/BHMA A156.4, Grade 1 certified

UL listed

UL10C compliant for positive pressure

A.D.A. compliant (1601BF)
