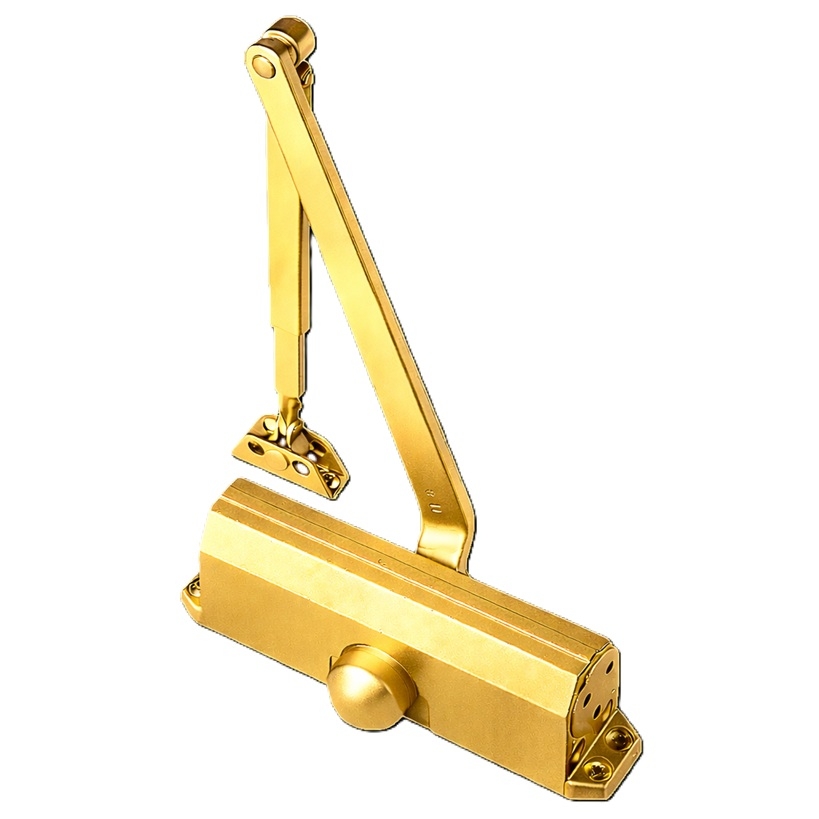

Norton Rixson 1601 Multi-Sized Door Closer

Norton Rixson* 1601 Multi-Sized Door Closer - Size 1 - 6*

F*eatur*es

Non-handed

Power Size:Multi-Sized Door Closer Adjustable through the power range of sizes 1 through 6.

Standard, separate and independent, latch, sweep and backcheck intensity valves

*Sweep Speed:*Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

*Latch Speed:*Allows adjustment of door speed from approximately 10 Degree down to the door's fully closed position.

*Backcheck:*Provides control of the door in the opening cycle, beginning at approximately 75 of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

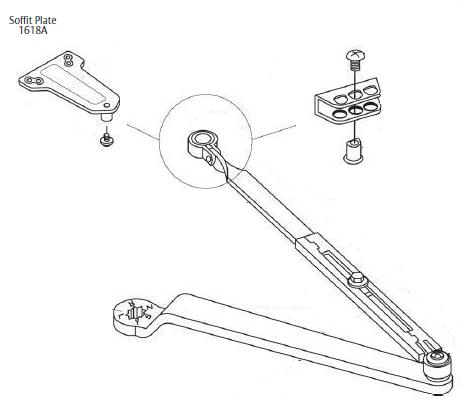

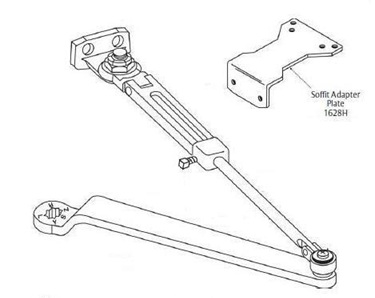

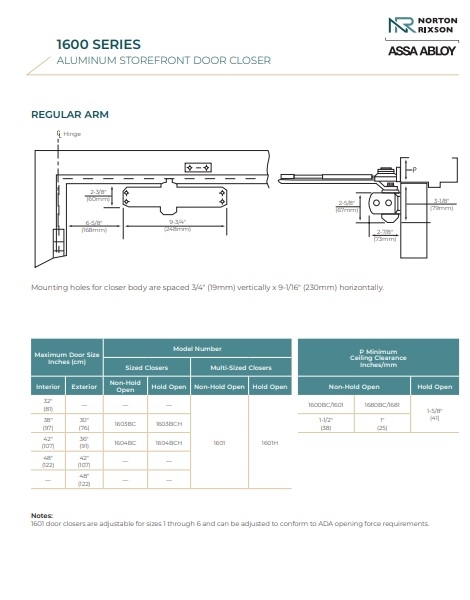

Tri-Stylepackaging (regular arm, top jamb and parallel arm mounting)

All standard arm applications allow doors to swing 180 Degree , conditions permitting

Warranty:These closers carry a limited 15-year warranty against defects and a limitedlifetime warranty on the aluminum housing.

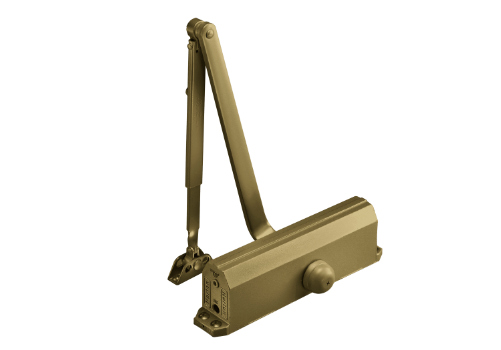

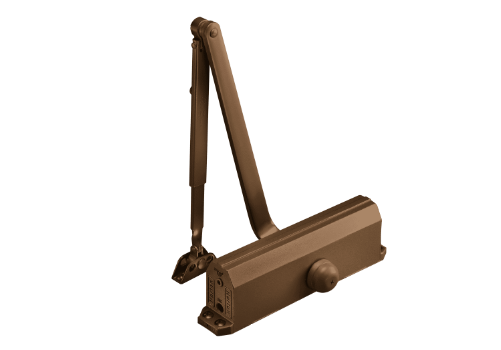

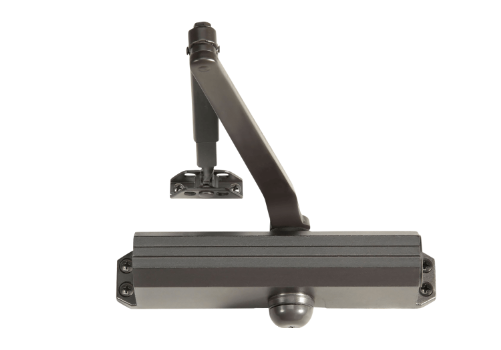

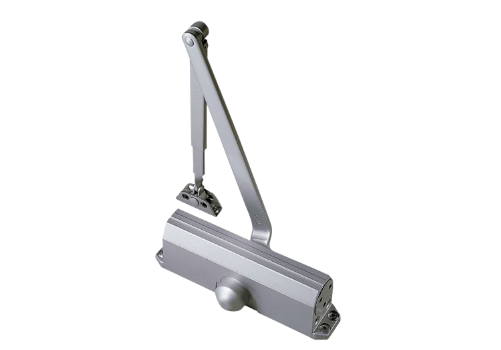

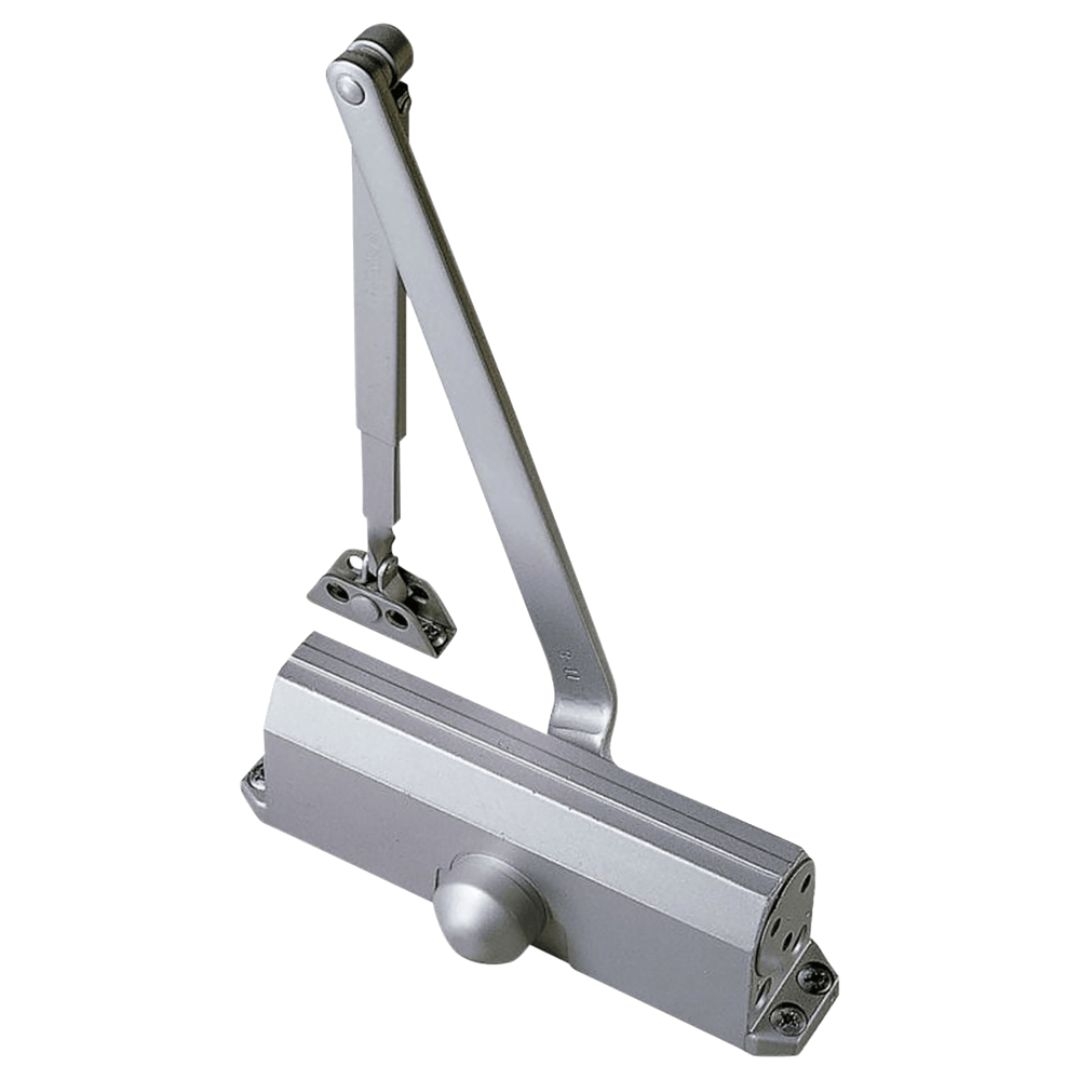

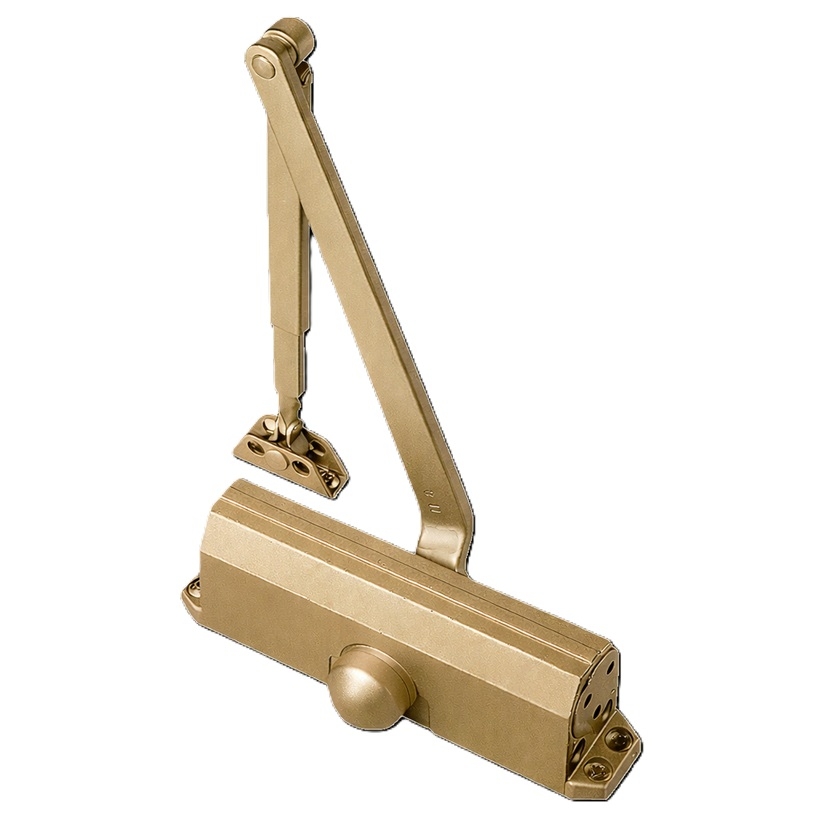

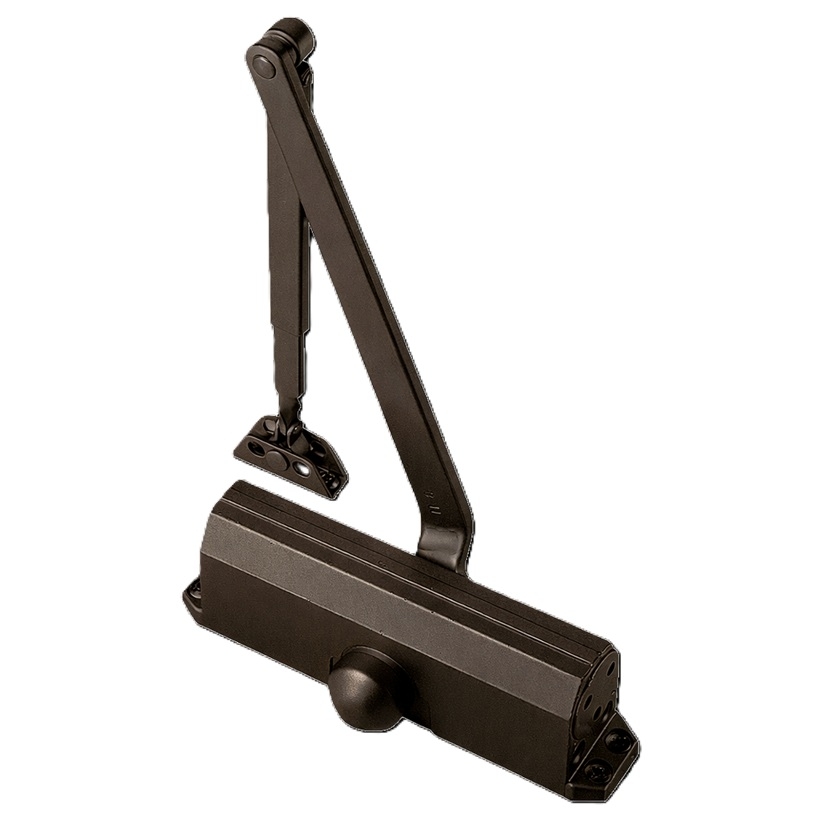

Model: NortonDoor Closer, 1601, 1601H, 1601DA, 689, 690, 691, 696, Silver Aluminum, Dark Bronze, Light Bronze, Satin Brass, 1601689, 1601690, 1601691, 1601696, 1601H689, 1601H690, 1601H691, 1601H696, (GR # 1RM12), (GR # 1RM13)

Aluminum Alloy Housing:Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interaction with steelcomponents and operating conditions.

*Rack & Pinion Operation:*Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not limit door swing.

Complicance Standards

ANSI/BHMA A156.4, Grade 1 certified

UL listed

UL10C compliant for positive pressure

A.D.A. compliant
