Norton Rixson CLP1601 Door Closer w/Closer Plus Arm (Parallel Arm Only)

Norton Rixson CLP1601 Door Closer w/Closer Plus Arm

Features

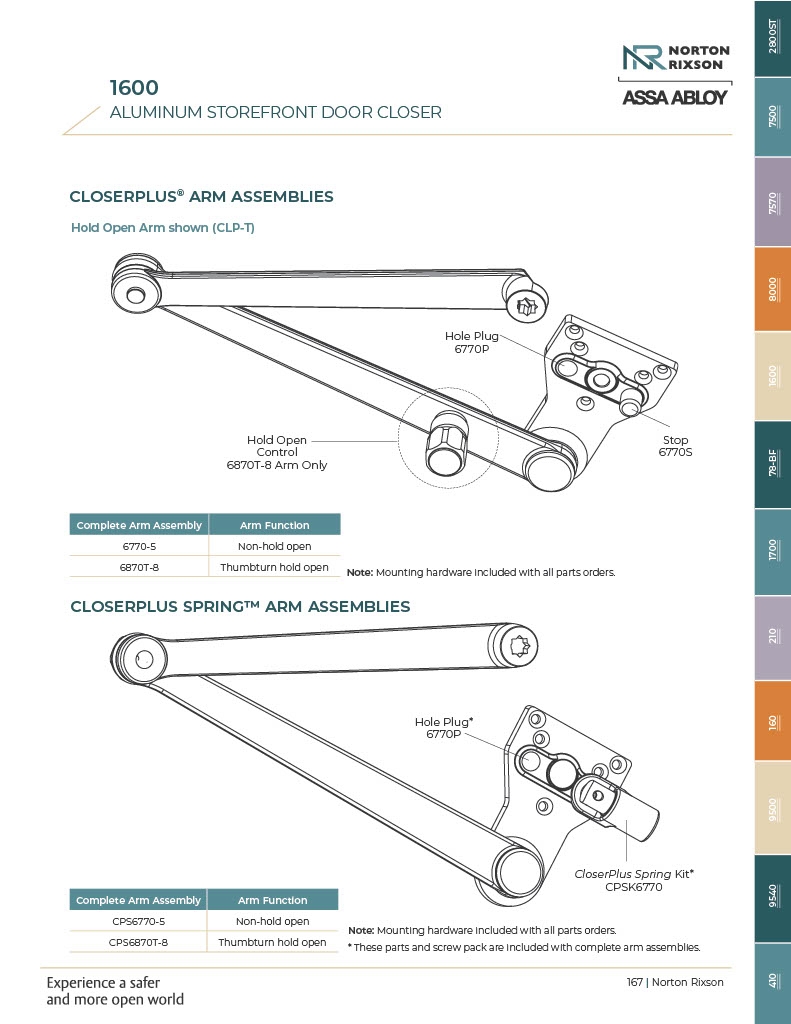

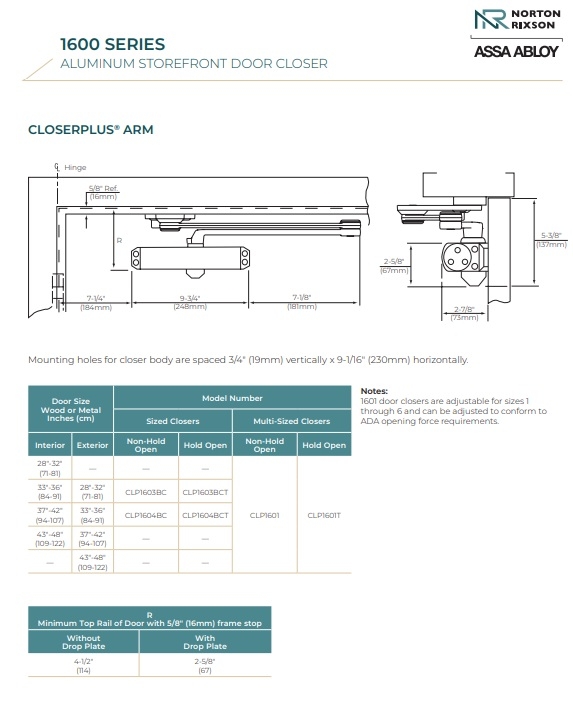

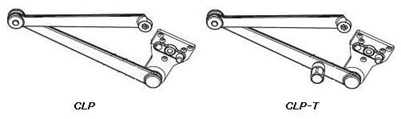

CloserPlus Arm - Similar to the Parallel Rigid arm, this arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments. Prior to dead stop the door closer’s backcheck feature slows the door speed to reduce the impact of the stop action.

The CloserPlus Arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated. Where more extreme conditions are expected, use of a Unitrol® arm is recommended.

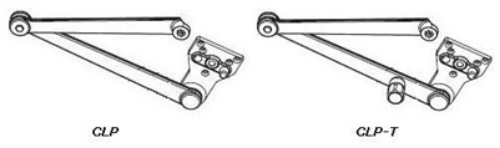

Hold open arm available; hold open tension is adjustable.

Non-handed

Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes 1 through 6 Degree.

Separate and independent, latch, sweep and backcheck intensity valves

Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

Latch Speed: Allows adjustment of door speed from approximately 10 Degree down to the door's fully closed position.

Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75 of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

All standard arm applications allow doors to swing 180 Degree, conditions permitting 15-year limited warranty

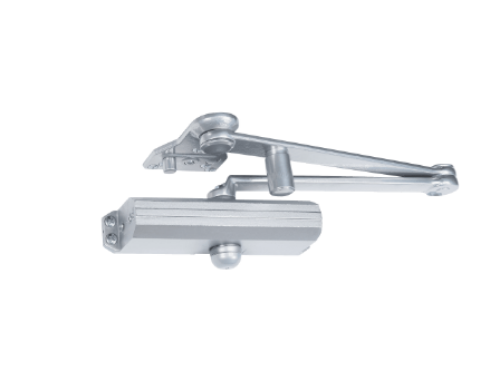

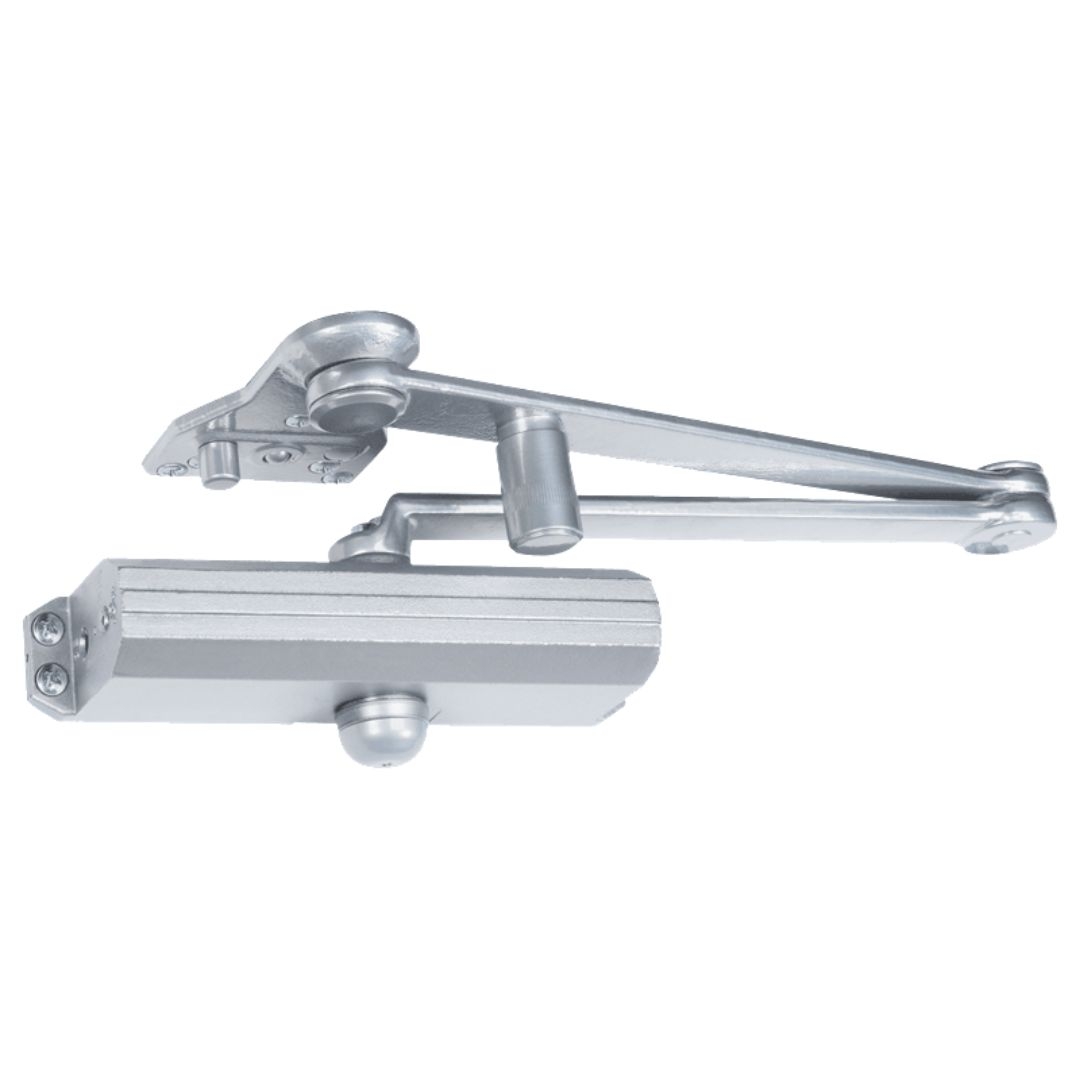

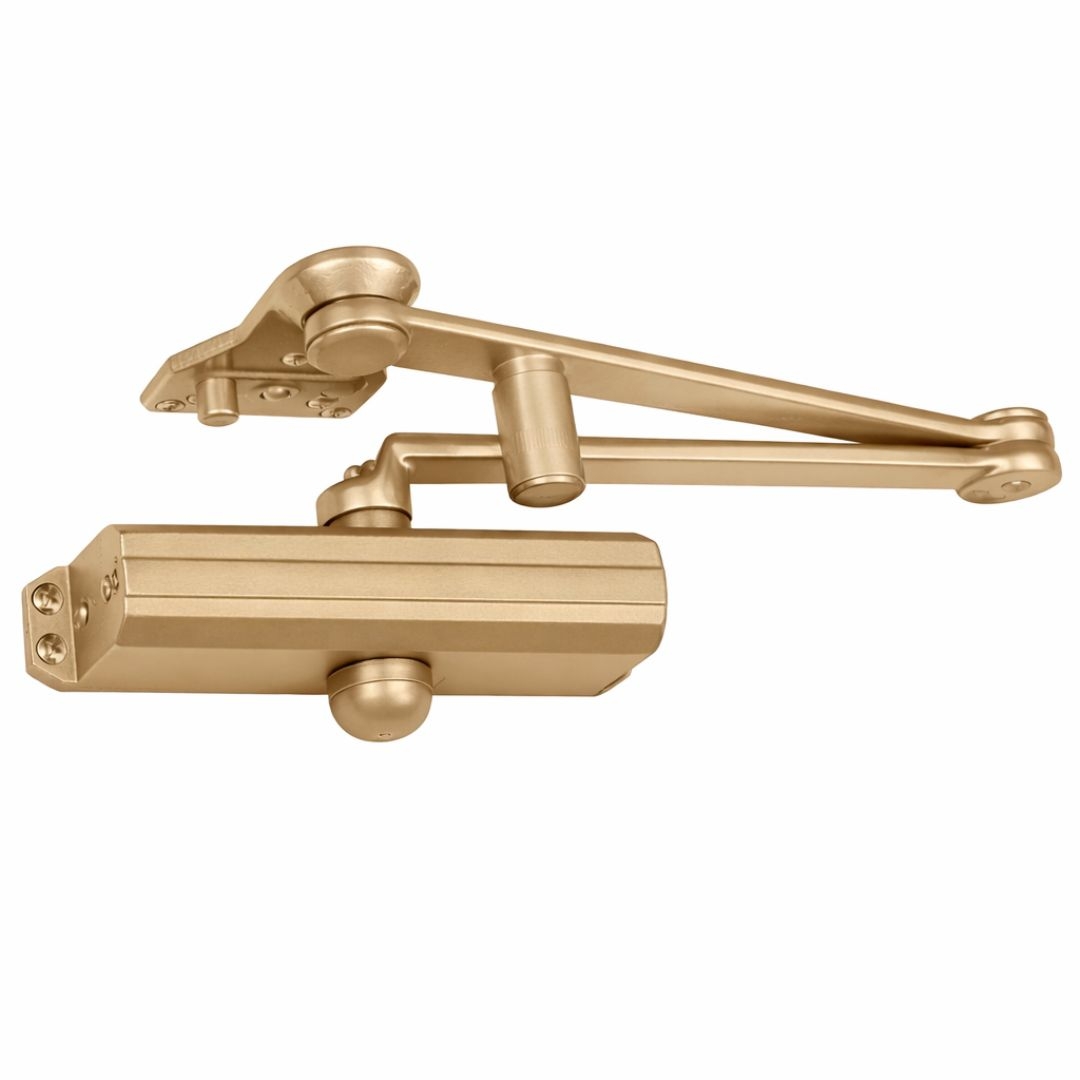

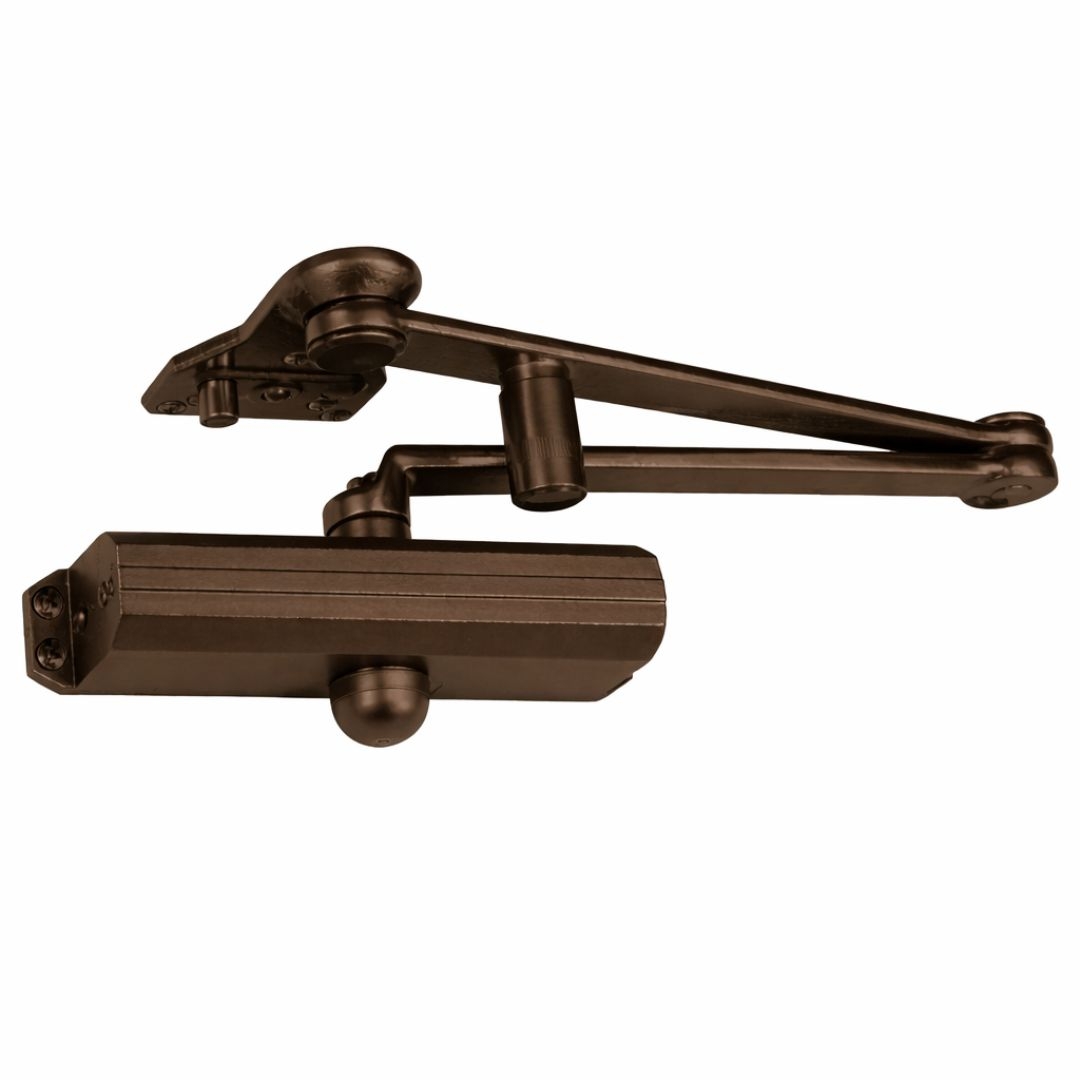

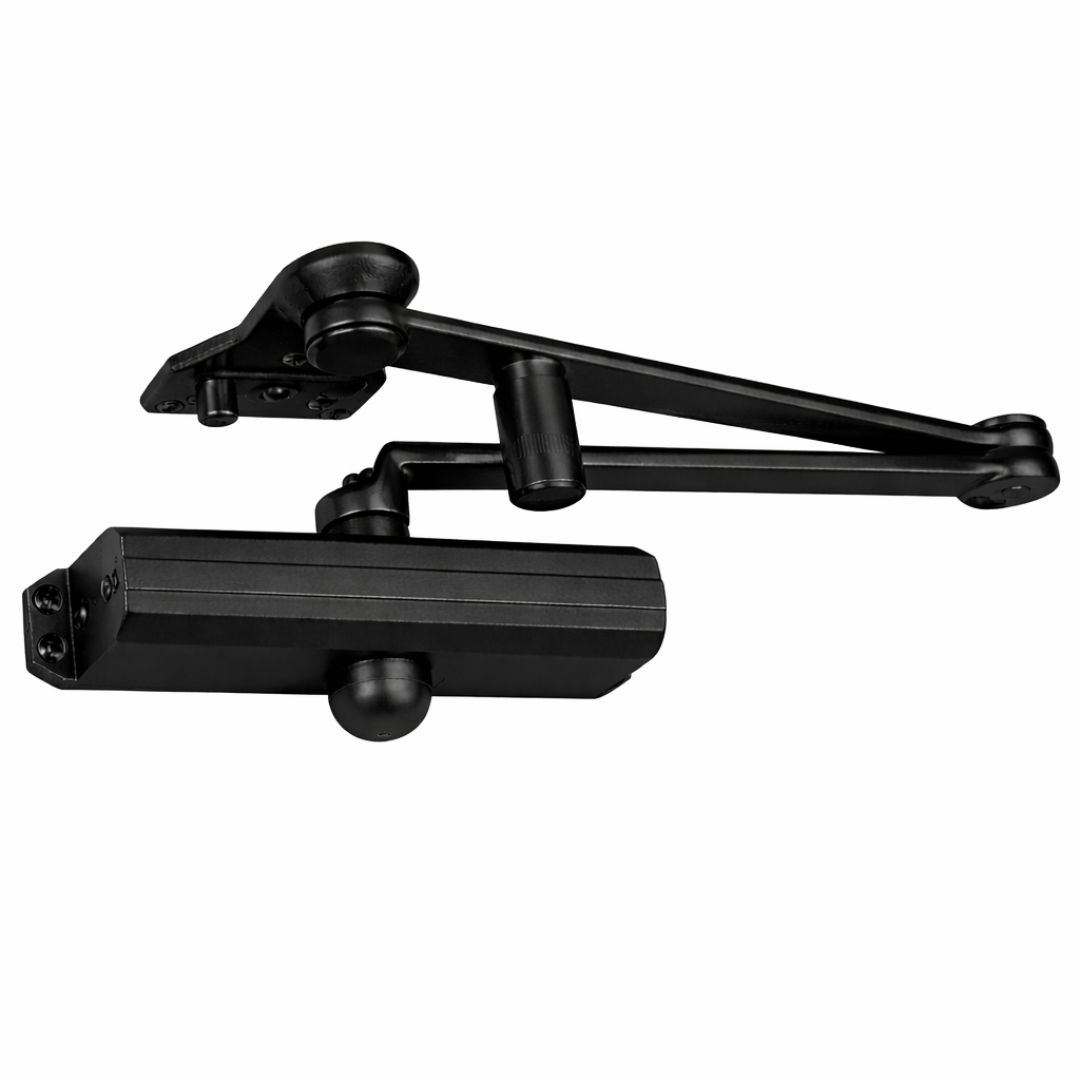

Model: Norton Rixson Door Closer, CLP1601, CLP1601BF, CLP1601T, 689, Silver Aluminum Painted, CLP1601689, CLP1601BF689, CLP1601T689

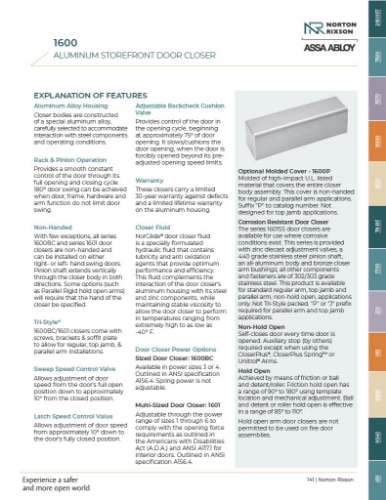

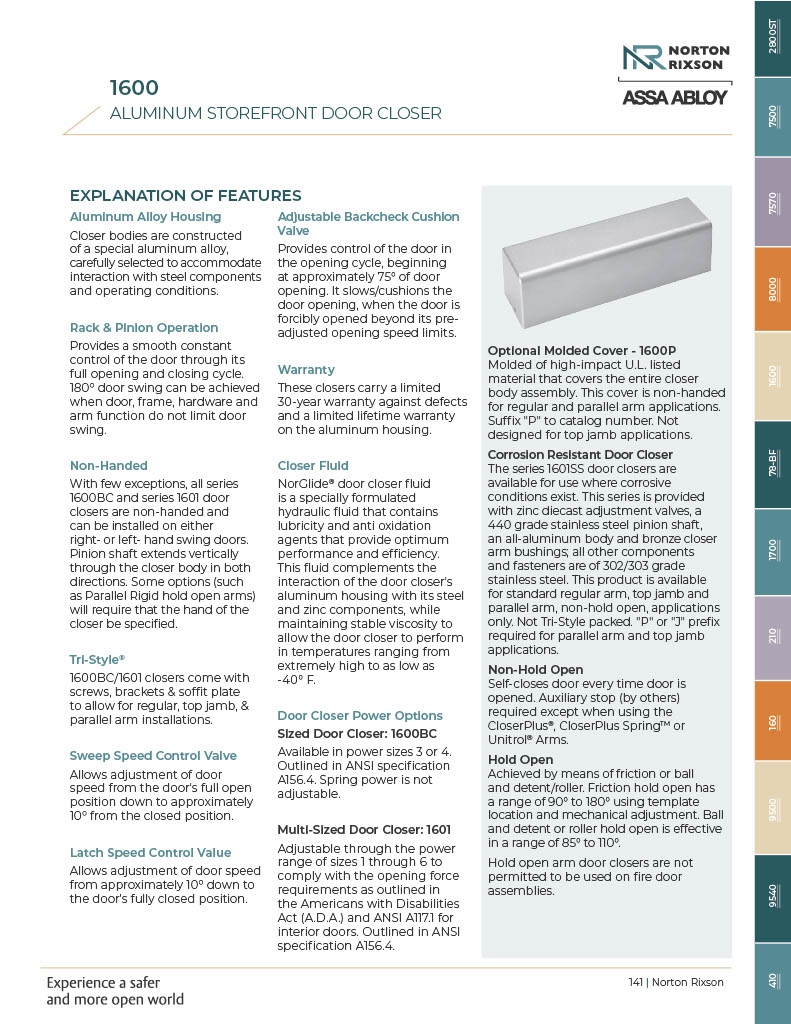

Aluminum Alloy Housing: Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interaction with steelcomponents and operating conditions.

Rack & Pinion Operation: Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not limit door swing.

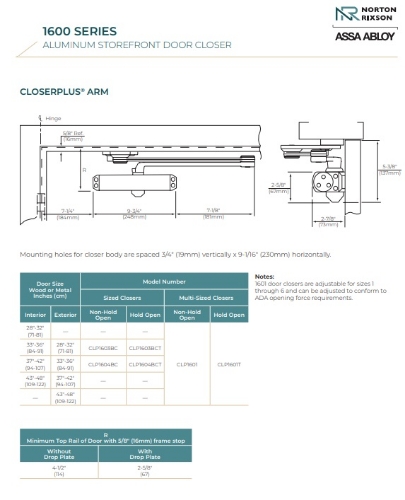

2-7/8" (73mm) projection

1-3/8" (35mm) diameter piston

5/8" (16mm) diameter pinion journals

Complicance Standards

ANSI/BHMA A156.4, Grade 1 certified

UL listed

UL10C compliant for positive pressure

A.D.A. compliant (1601BF)
