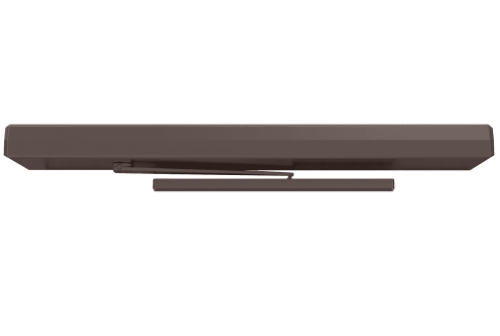

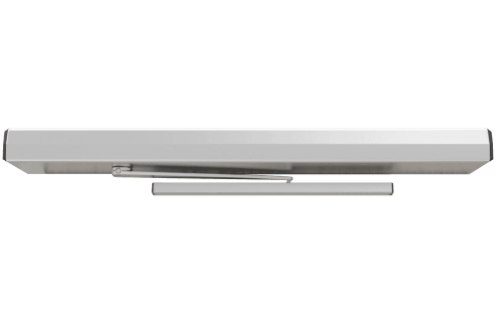

Norton Rixson 6312 689 / 690 Door Operator, Surface Mount, Pull Side, Slide Track, Rigid Arm (Track) - 39-5/8" Length
Product Details
Norton Rixson 6312 689 / 690 Door Operator, Surface Mount, Pull Side, Slide Track, Rigid Arm (Track) - 39-5/8" Length
6312
HINGE (PULL) SIDE OF DOOR RIGID ARM AND SLIDE TRACK - 39-5/8"Electromechanical low energy operators feature a motor and gearbox for consistent automatic operationThese units are used in applications where automatic mode (activated by wall switches, motion sensors, etc.) is the primary function

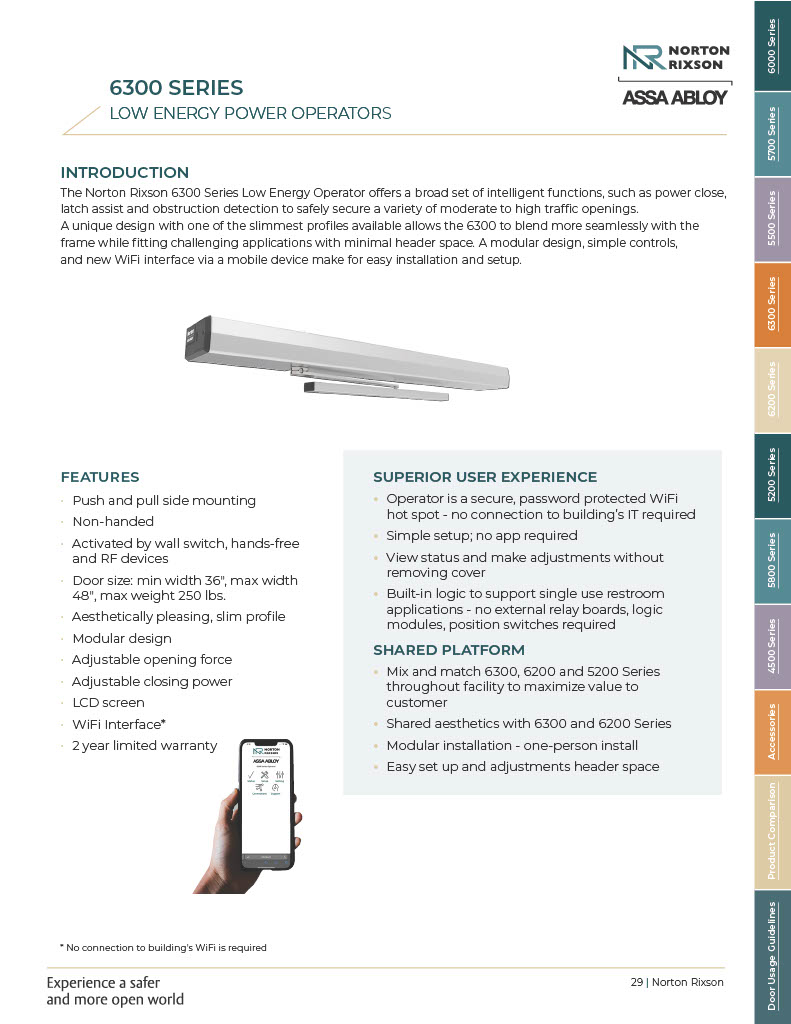

FEATURES:
Push or pull side mountingNon-handedActivated by wall switch, hands-free, and RF devicesDoor size: min width 36", max width 48", max weight 250 lbs.Aesthetically pleasing, slim profileModular designAdjustable opening forceAdjustable closing powerLCD screenWiFi Interface 2 year limited warranty*
*SMARTPower close ensures door closes to secure facilityOccupant safety enhanced by obstruction detection, power assist, and push & go functionsCustomizable inputs and outputs for accessories, including security override and fire safetySIMPLEModular design allows for one-person installationHeavy-duty back plate serves as template simplifying and speeding installationUnit learns door properties (approximate weight) during installation for easy programming and set-upEasy setup via a mobile deviceGOOD LOOKINGSimply opens and closes the door to automate interior, non-fire rated doorsIDEAL FOR RETROFIT APPLICATIONSUnique design with slim profile blends seamlessly with frameLow profile easily fits applications with minimal header space**

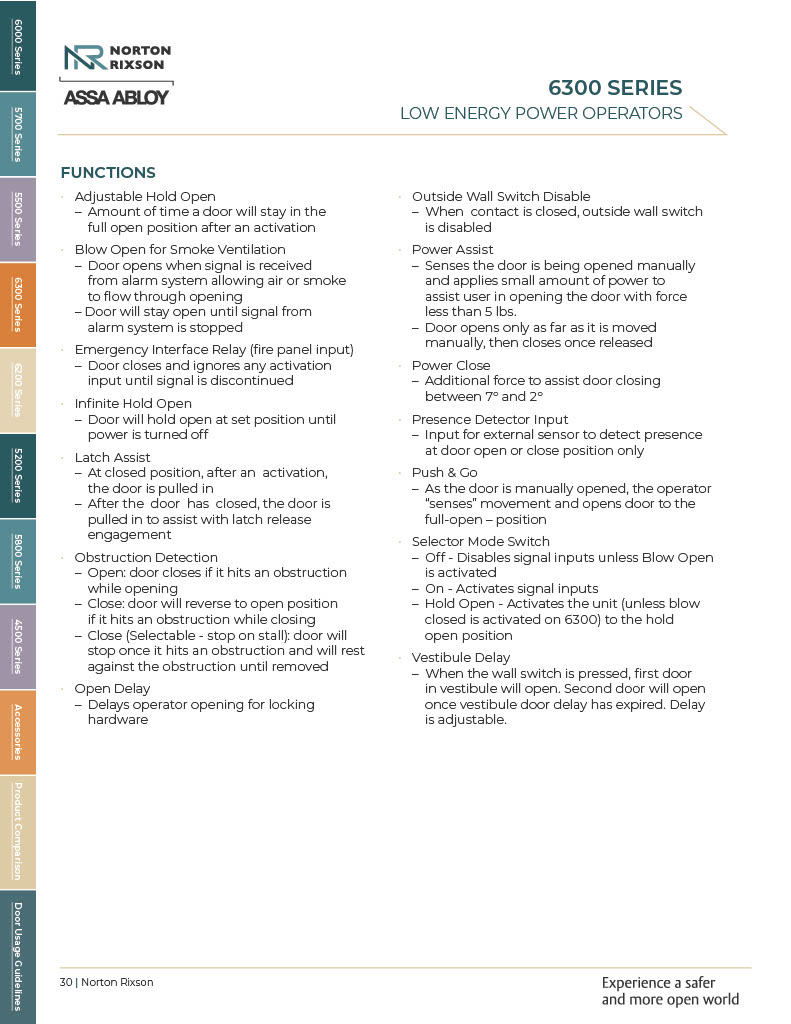

FUNCTIONS:
**Adjustable Hold OpenAmount of time a door will stay in the full open position after an activationBlow Open for Smoke VentilationDoor opens when signal is received from alarm system allowing air or smoke to flow through openingDoor will stay open until signal from alarm system is stopped Emergency Interface Relay (fire panel input)Door closes and ignores any activation input until signal is discontinued Infinite Hold OpenDoor will hold open at set position until power is turned offLatch AssistAt closed position, after an activation, the door is pulled inAfter the door has closed, the door is pulled in to assist with latch release engagementObstruction DetectionOpen: door closes if it hits an obstruction while openingClose: door will reverse to open position if it hits an obstruction while closingClose (Selectable - stop on stall): door will top once it hits an obstruction and will rest against the obstruction until removedOpen DelayDelays operator opening for locking hardwareOutside Wall Switch DisableWhen contact is closed, outside wall switch is disabledPower AssistSenses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.Door opens only as far as it is moved manually, then closes once releasedPower CloseAdditional force to assist door closing between 7 deg. and 2 deg.Presence Detector InputInput for external sensor to detect presence at door open or close position
only Push & GoAs the door is manually opened, the operator "senses" movement and opens door to the full-open - positionSelector Mode SwitchOffDisables signal inputs unless Blow Open is activatedOnActivates signal inputsHold OpenActivates the unit (unless blow closed is activated on 6300) to the hold open positionVestibule DelayWhen the wall switch is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable.
