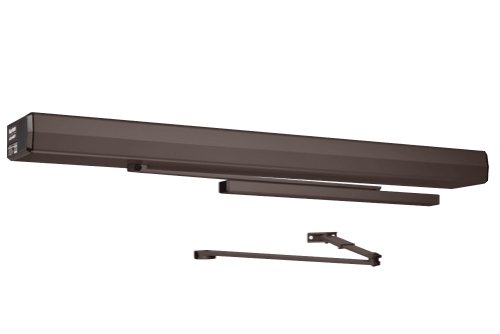

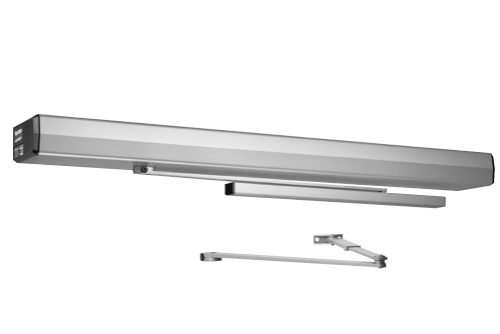

Norton Rixson 6341 689 / 690 Low Energy Door Operator, Surface Mount, Push or Pull Side, Slide Track or Top Jamb, Rigid Arm (Track) and Double Lever Arm Regular, 37-3/8" Length

Norton Rixson 6341 689 / 690 Low Energy Door Operator, Surface Mount, Push or Pull Side, Slide Track or Top Jamb, Rigid Arm (Track) and Double Lever Arm Regular - 37-3/8" Length

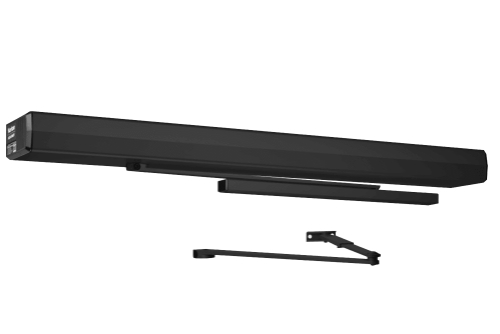

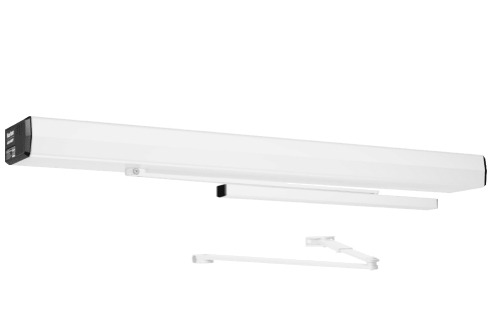

6341Push or pull side, rigid arm & slide track and double lever arms, Cover included

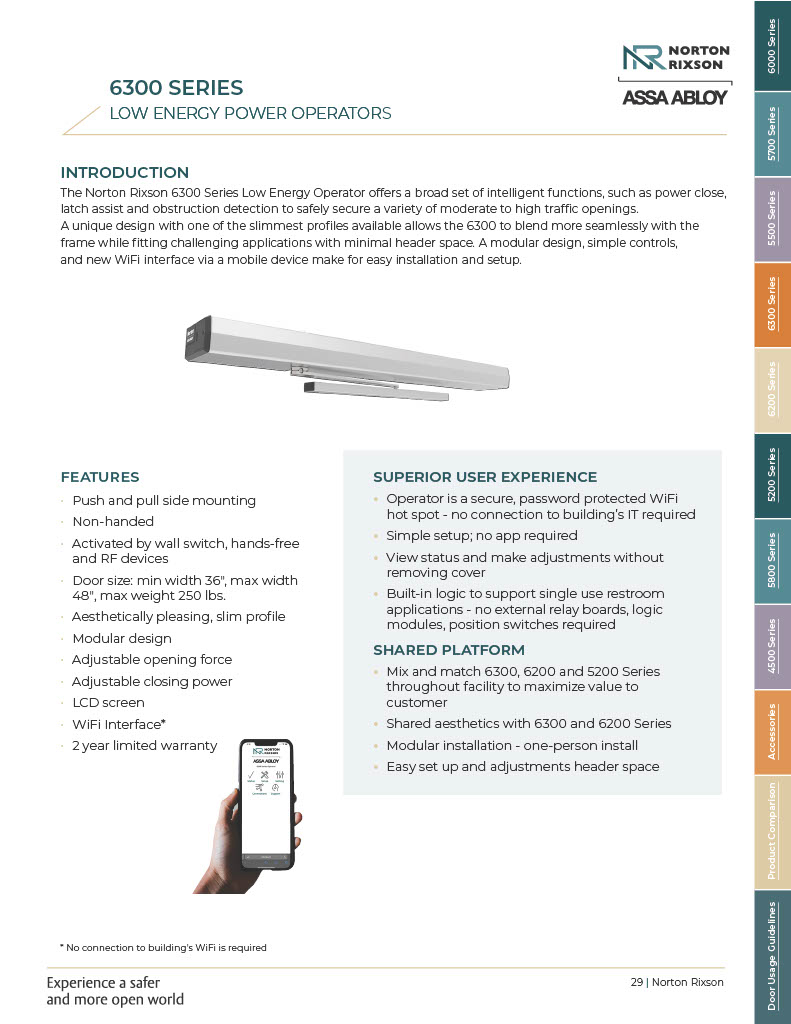

FEATURES:

Push or pull side mountingNon-handedActivated by wall switch, hands-free, and RF devicesDoor size: min width 36", max width 48", max weight 250 lbs.Aesthetically pleasing, slim profileModular designAdjustable opening forceAdjustable closing powerLCD screenWiFi Interface  2 year limited warranty* *SMARTPower close ensures door closes to secure facilityOccupant safety enhanced by obstruction detection, power assist, and push & go functionsCustomizable inputs and outputs for accessories, including security override and fire safetySIMPLEModular design allows for one-person installationHeavy-duty back plate serves as template simplifying and speeding installationUnit learns door properties (approximate weight) during installation for easy programming and set-upEasy setup via a mobile deviceGOOD LOOKINGSimply opens and closes the door to automate interior, non-fire rated doorsIDEAL FOR RETROFIT APPLICATIONSUnique design with slim profile blends seamlessly with frameLow profile easily fits applications with minimal header space** FUNCTIONS:

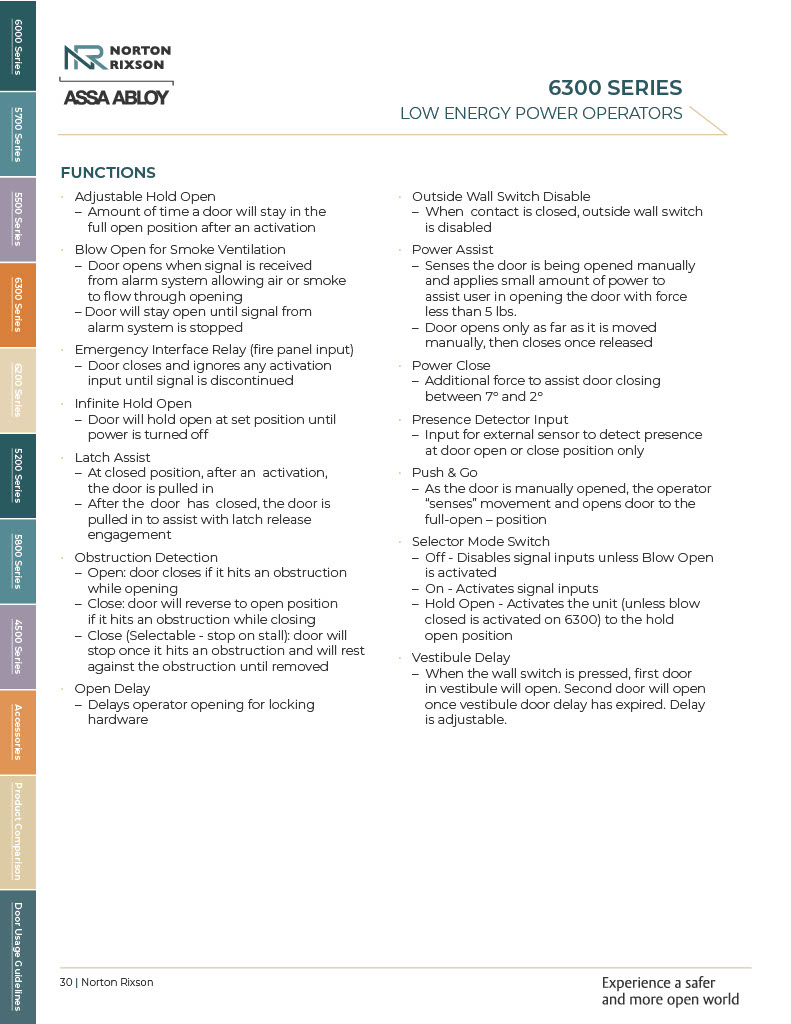

**Adjustable Hold OpenAmount of time a door will stay in the full open position after an activationBlow Open for Smoke VentilationDoor opens when signal is received from alarm system allowing air or smoke to flow through openingDoor will stay open until signal from alarm system is stopped Emergency Interface Relay (fire panel input)Door closes and ignores any activation input until signal is discontinued Infinite Hold OpenDoor will hold open at set position until power is turned offLatch AssistAt closed position, after an activation, the door is pulled inAfter the door has closed, the door is pulled in to assist with latch release engagementObstruction DetectionOpen: door closes if it hits an obstruction while openingClose: door will reverse to open position if it hits an obstruction while closingClose: (Selectable - stop on stall): door will top once it hits an obstruction and will rest against the obstruction until removedOpen DelayDelays operator opening for locking hardwareOutside Wall Switch DisableWhen contact is closed, outside wall switch is disabledPower AssistSenses the door is being opened manually and applies small amount of power to assist user in opening the door with force less than 5 lbs.Door opens only as far as it is moved manually, then closes once releasedPower CloseAdditional force to assist door closing between 7 deg. and 2 deg.Presence Detector InputInput for external sensor to detect presence at door open or close position only Push & GoAs the door is manually opened, the operator "senses" movement and opens door to the full-open - positionSelector Mode SwitchOffDisables signal inputs unless Blow Open is activatedOnActivates signal inputsHold OpenActivates the unit (unless blow closed is activated on 6300) to the hold open positionVestibule DelayWhen the wall switch is pressed, first door in vestibule will open. Second door will open once vestibule door delay has expired. Delay is adjustable.

ELECTRICAL DATAPower input 120 VAC, 3A, 60HzCurrent draw 1.5APower output 24VDC @ 1.3A max draw (less accessories)* *CERTIFICATIONSANSI/BHMA A156.19 certifiedUL325/991 certifiedUL10C positive pressure up to 3 hoursComplies with requirements for the Americans with Disabilities Act (A.D.A) Manufactured in an ISO 9001 and ISO 14001 certified facility* *SPECIFICATIONSDoor Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control. Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated.  Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently.  [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push & Go.)  (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.)  (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]  Operator shall have selectable latch boost to provide additional closing force to overcome conditions that may prevent door from latching.  Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time. Units shall interface with latch retraction exit devices or similar products and have 24VDC @ 1.3A maximum (less accessories) output for connection of electric strike, lock, radio frequency receiver, etc. Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched "ON" to monitor for function inputs, switch to H/O for infinite hold open function or switched "OFF" which will disable function inputs allowing unit to be used as a manual door closer.  Unit shall be U.L. Listed for automatic closing door.  The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA). Unit shall be certified by BHMA to meet A156.19 requirements. Unit shall meet UL325/991, UL10C standards.

• Electromechanical low energy operators feature a motor and gearbox for consistent automatic operation- These units are used in applications where automatic mode (activated by wall switches, motion sensors, etc.) is the primary function
