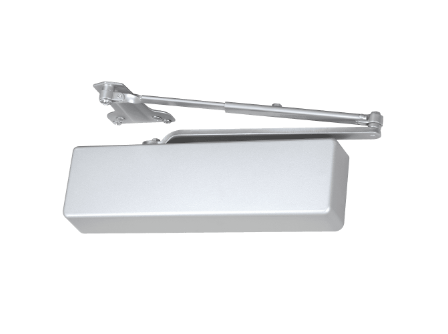

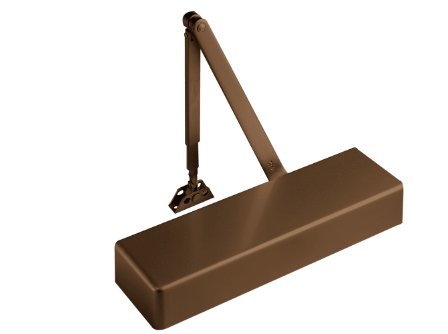

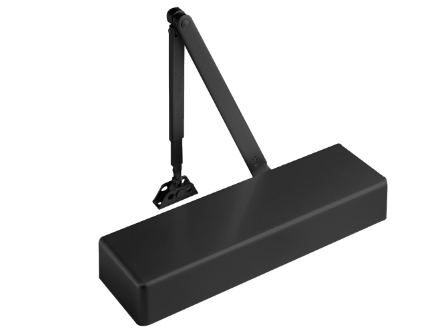

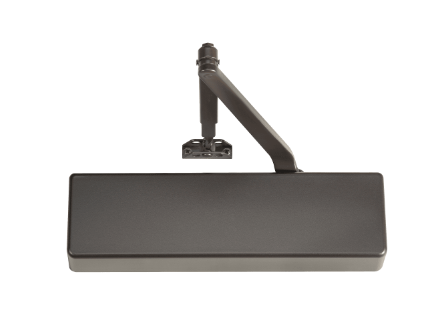

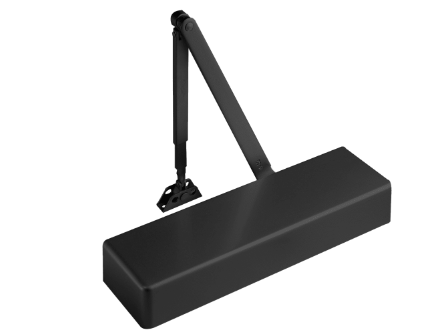

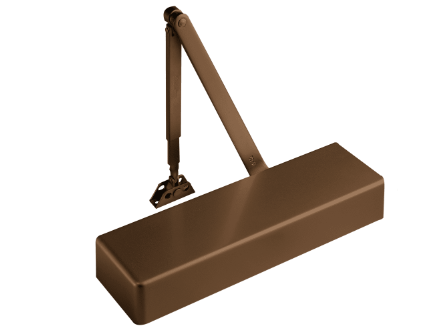

Norton Rixson 7500 Multi-Sized Door Closer

Norton Rixson *7500 Multi-Sized Door Closer*

Features**

Non-handed

Power Size:Multi-Sized Door Closer Adjustable through the power range of sizes1 through 6.**

Standard, separate and independent, latch, sweep andbackcheck intensity valvesBackcheck positioning valve

Sweep Speed:Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

*Latch Speed:*Allows adjustment of door speed from approximately 10 Degree down to the doors fully closed position.

*Backcheck:*Provides control of the door in the opening cycle, beginning at approximately 75of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

*Adjustable BackcheckPosition Valve:*Allows the door opening position, wherebackcheck cushioning begins, to be adjustedto a greater door angle, up to a maximumof 20farther (approximately 95 Degree).

Tri-Stylepackaging (regular arm, top jamb and parallel arm mounting)

Molded plastic cover

All standard arm applications allow doors to swing 180 Degree, conditions permitting

Self-drilling screws

Full-size template

10-year limited warranty

Model: Norton Rixson  Door Closer, 7500M, 605E, Bright Brass Plated,606E,Satin Brass Plated,612E, Satin Bronze Plated, 613E,Oil RubbedBronze Plated, 625E, BrightChrome Plated,626E,Satin ChromePlated,605, 606, 612, 613, 625, 626, 7500M605E, 7500M606E, 7500M612E, 7500M613E, 7500M625E, 7500M626E, 7500, 7500H, 7500DA, 689, 690, 691, 696, Silver Aluminum, Dark Bronze, Light Bronze, Satin Brass,7500689, 7500690, 7500691, 7500696, 7500H689, 7500H690, 7500H691, 7500H696, 7500XAL (GR Item # 1RM24), 7500XBR (GR Item # 1RM25), 7500H, GR # 1RM22).

Aluminum Alloy Housing:Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interactive steel components and operating conditions.

Rack & Pinion Operation:Provides a smooth constant control ofthe door through its full opening andclosing cycle. 180 Degree door swing can beachieved when door, frame, hardwareand arm function do not interfere.

*Closer Fluid:*NorGlidecloser fluid is a speciallyformulated multi-viscosity hydraulic fluidthat contains lubricity and anti-oxidationagents that provide optimum performanceand efficiency. This fluid complements theinteraction of the door closer's aluminumhousing with its steel and brass components,while maintaining stable viscosity to allowthe door closer to perform in temperaturesranging from extremely high to as low as-40Degree F.

Complicance Standards

The series 7500 door closers are designed to comply with requirements of the Americans with Disabilities Act (A.D.A.) and

ANSI standard A117.1. All series 7500 door closers are ANSI/BHMA A156.4 Grade 1 certified. AllNortonseries

7500 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors. This includes

compliance to UL10C and UBC-72 (1997) for 3-hour assemblies. The product is manufactured in an ISO 9001 facility. These

closers are also listed by the New York City Materials and Equipment Acceptance Division.
