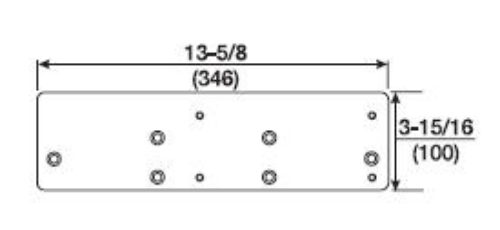

Norton Rixson 7786 Door Closer Drop Plate for 7500 Series

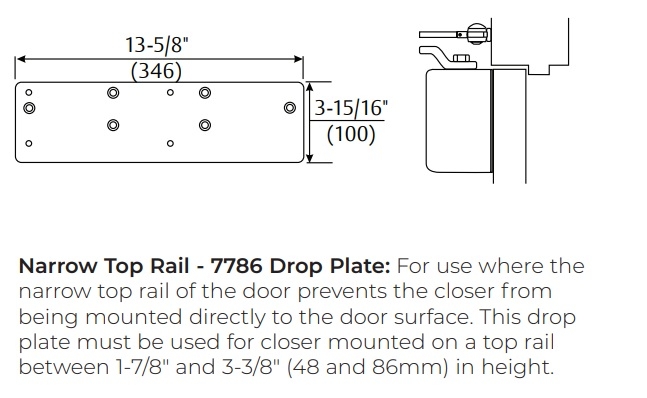

Narrow Top Rail - #7786 Drop Plate:

For use where the narrowtop rail of the door prevents the closer from being mounteddirectly to the door surface. This drop plate must be used forcloser mounted on a top rail between 1-7/8" and 3-3/8" (48mmand 86mm) in height.

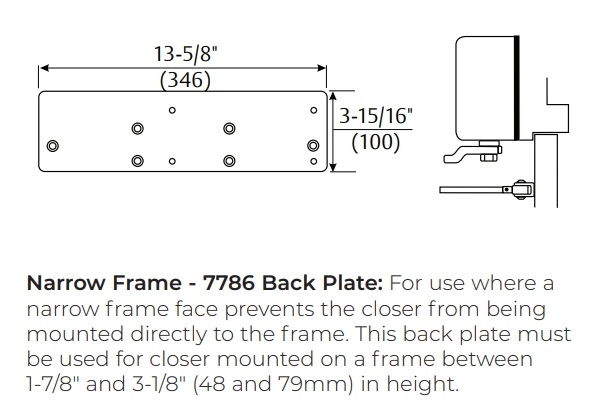

Narrow Frame - #7786 Back Plate:

For use where a narrow frameface prevents the closer from being mounted directly to the frame.This back plate must be used for closer mounted on a framebetween 1-7/8" and 3-1/8" (48mm and 79mm) in height.
