Norton Rixson 8301/8301H Multi-Sized Door Closer

Norton Rixson 8301/8301H Multi-Sized Door Closer

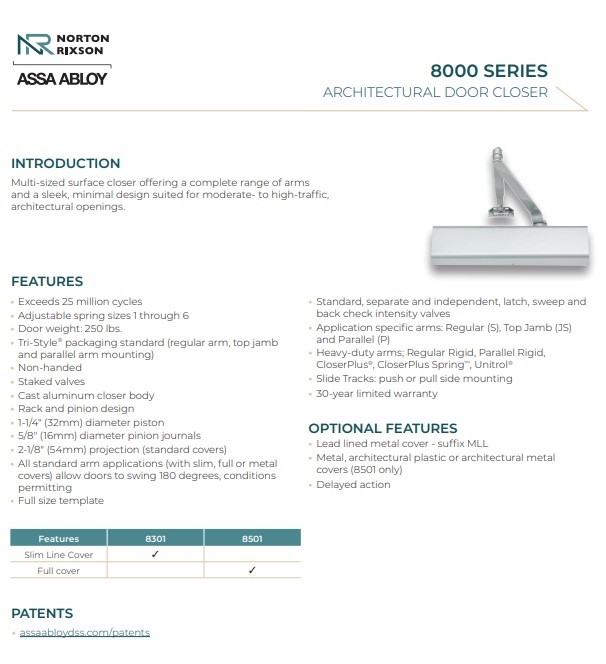

Features

Non-handed

8301 - shipped with slim-line plastic cover

Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes1 through 6.

Standard, separate and independent, latch, sweep andbackcheck intensity valves.

Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10from the closed position.

Latch Speed: Allows adjustment of door speed from approximately 10down to the door's fully closed position.

Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

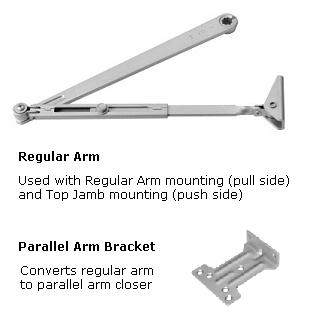

Tri-Style packaging (regular arm, top jamb and parallel arm mounting)

Molded plastic cover

All standard arm applications allow doors to swing 180 Degree, conditions permitting

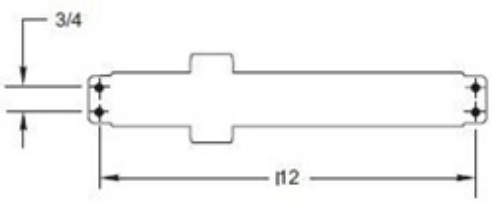

Full-size template

10-year limited warranty

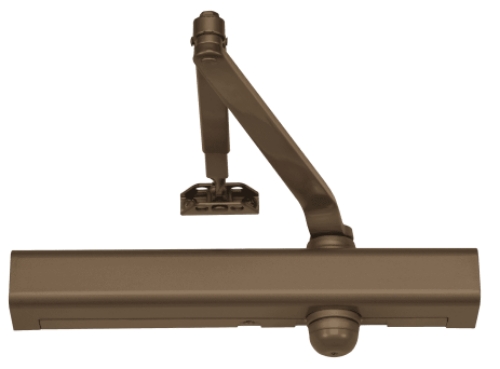

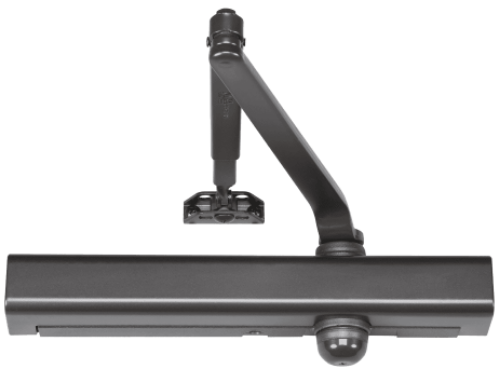

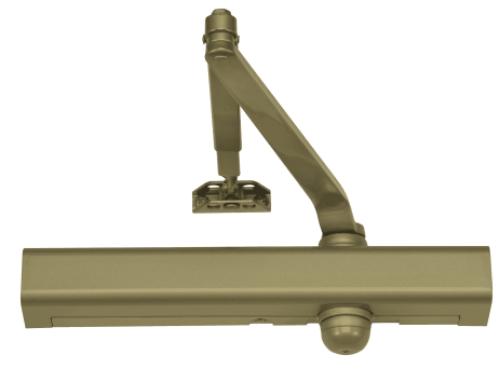

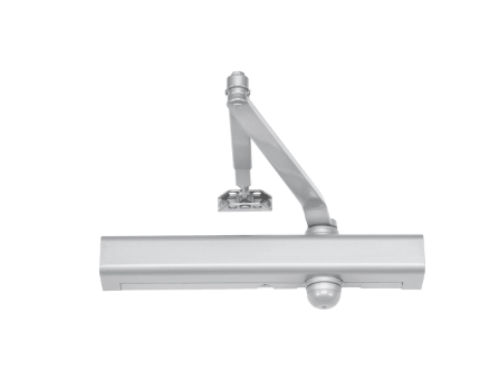

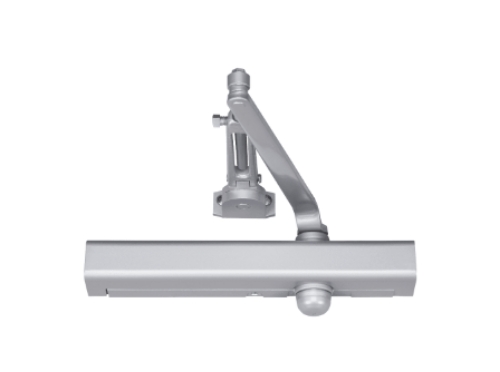

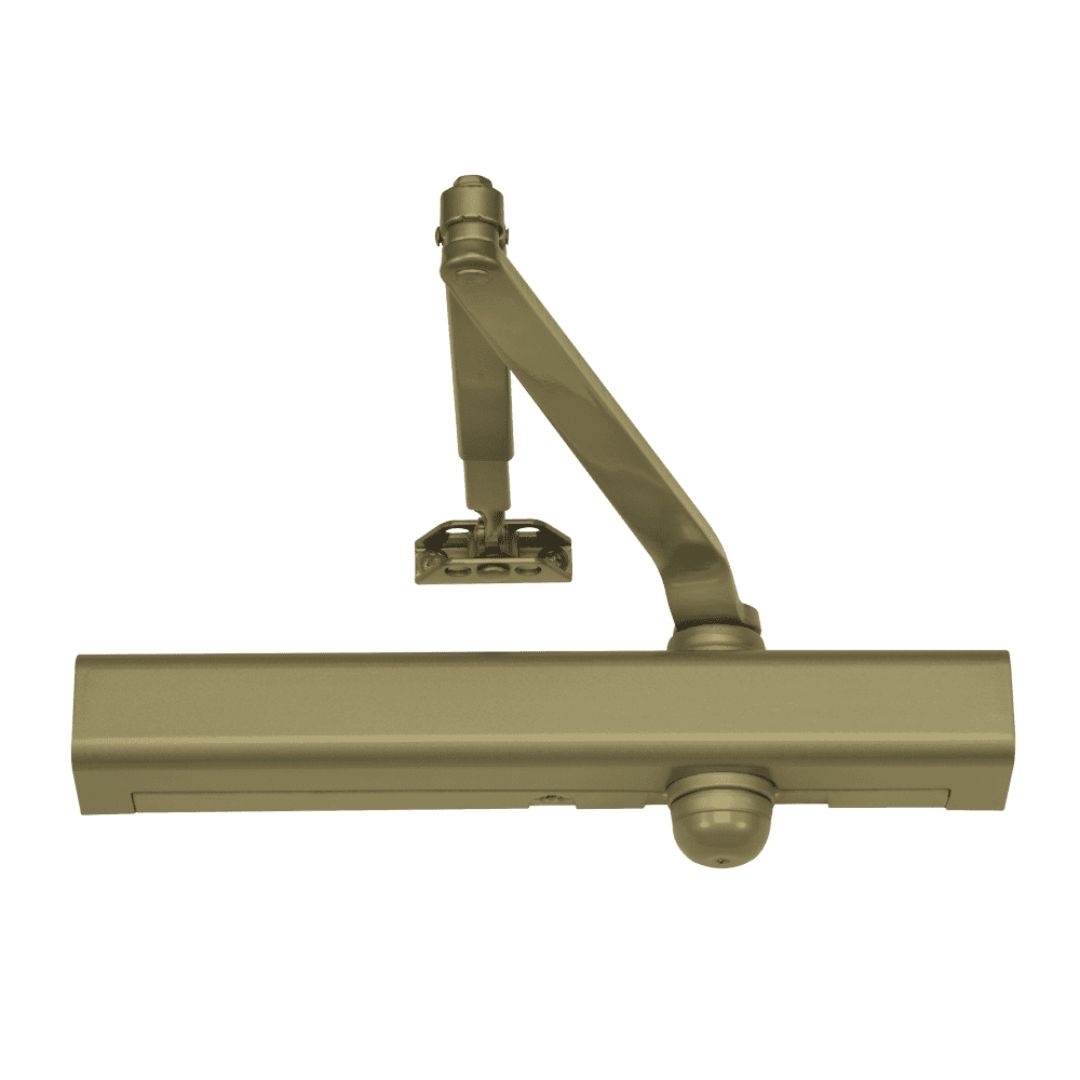

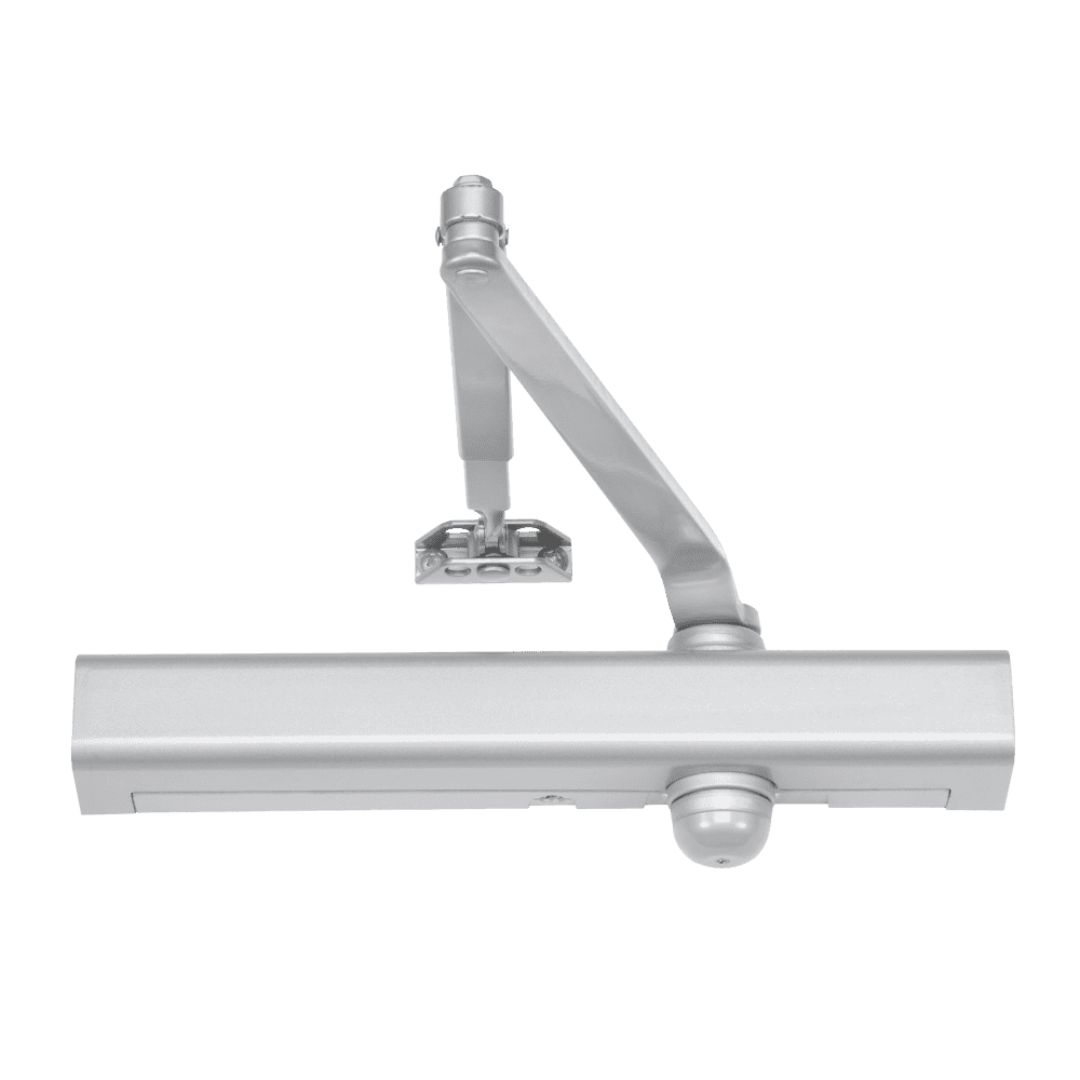

Model: Norton Rixson Door Closer, 8301, 8301H, 8301DA, 689, 690, 691, 696, Silver Aluminum, Dark Bronze, Light Bronze, Satin Brass, 8301689, 8301690, 8301691, 8301696, 8301H689, 8301H690, 8301H691, 8301H696, (GR # 6T312, 6T313, 6T314)

Aluminum Alloy Housing

Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interactive steelcomponents and operating conditions.

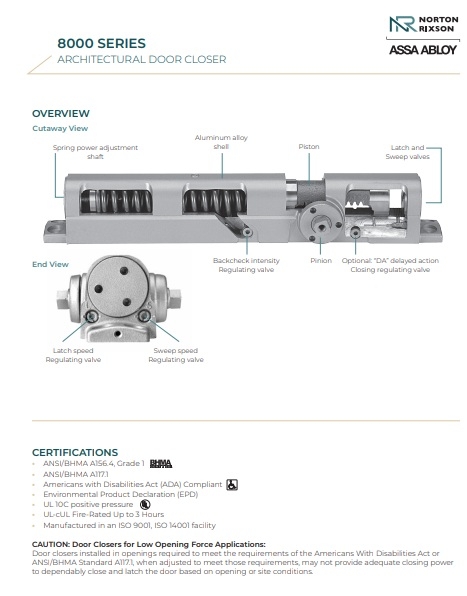

Rack & Pinion Operation

Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not interfere.

Standard Molded Covers

Molded of high-impact U.L. listed material. These covers are non-handed for all applications.

• 1-1/4" (32mm) diameter piston

• 5/8" (16mm) diameter pinion journals

• 2-1/8" (54mm) projection (standard covers)

Compliance Standards: Series 8301 and 8501 door closers are designed to comply with requirements of the Americans with Disabilities Act

(A.D.A.) and ANSI/BHMA standard A117.1. All series 8300/8500/8301/8501 are ANSI/BHMA A156.4, Grade 1 certified.

All Norton series 8300/8500/8301/8501 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies. The product is manufactured in an ISO 9001 facility. These closers are listed by the New York City Materials and Equipment Acceptance Division.
