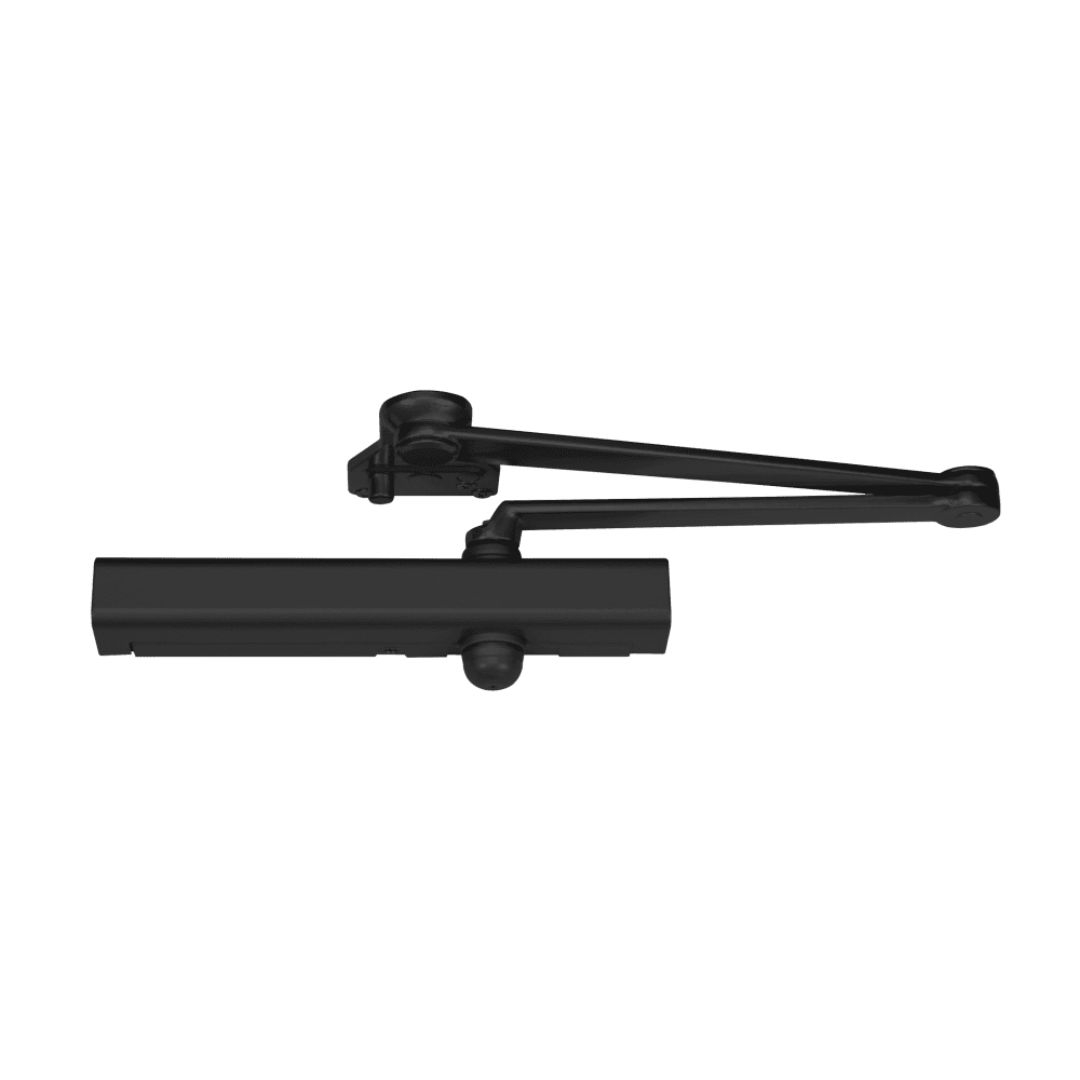

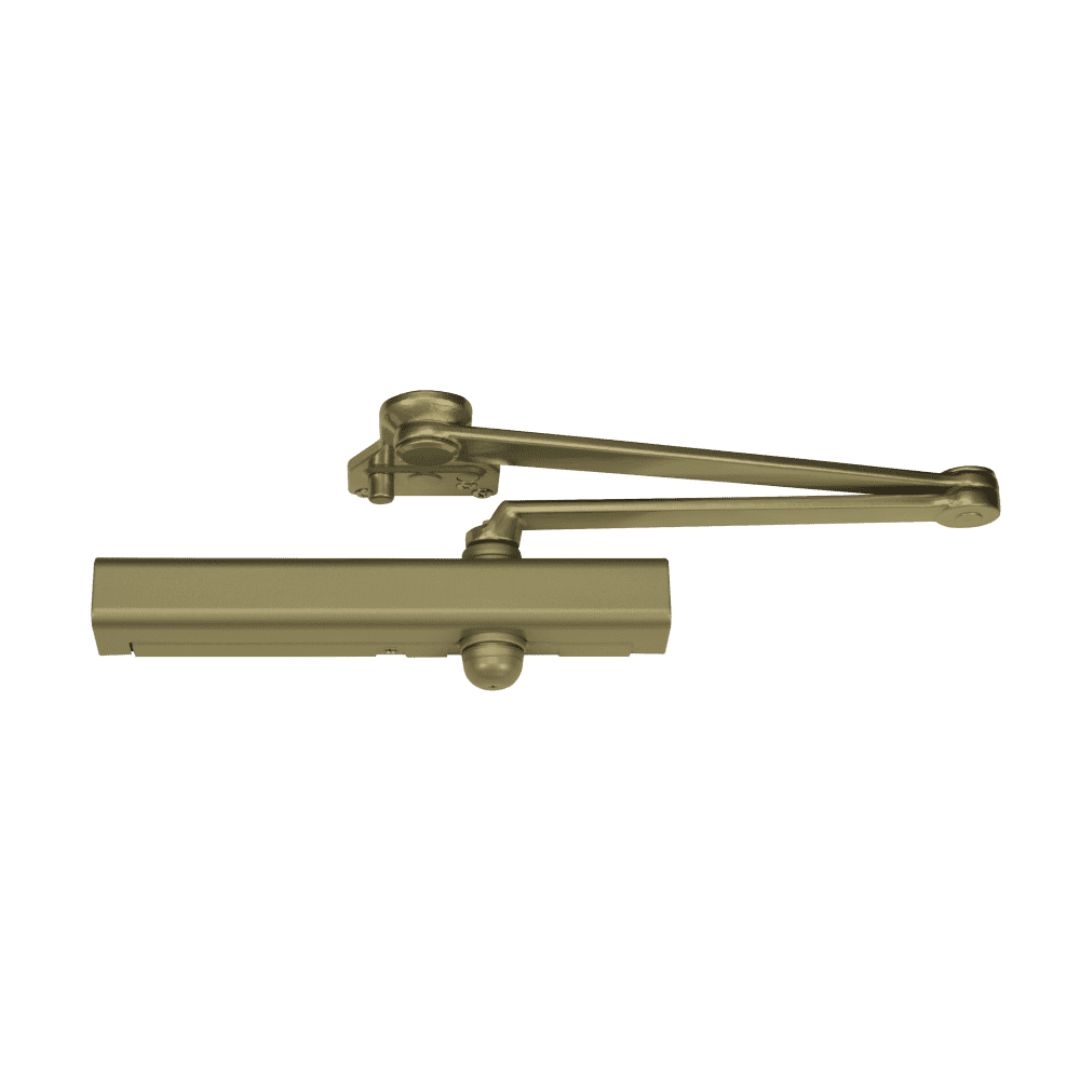

Norton Rixson CLP8301 Multi-Sized Door Closer w/CloserPlus Arm

Norton Rixson CLP8301 Multi-Sized Door Closer w/CloserPlus Arm

Features

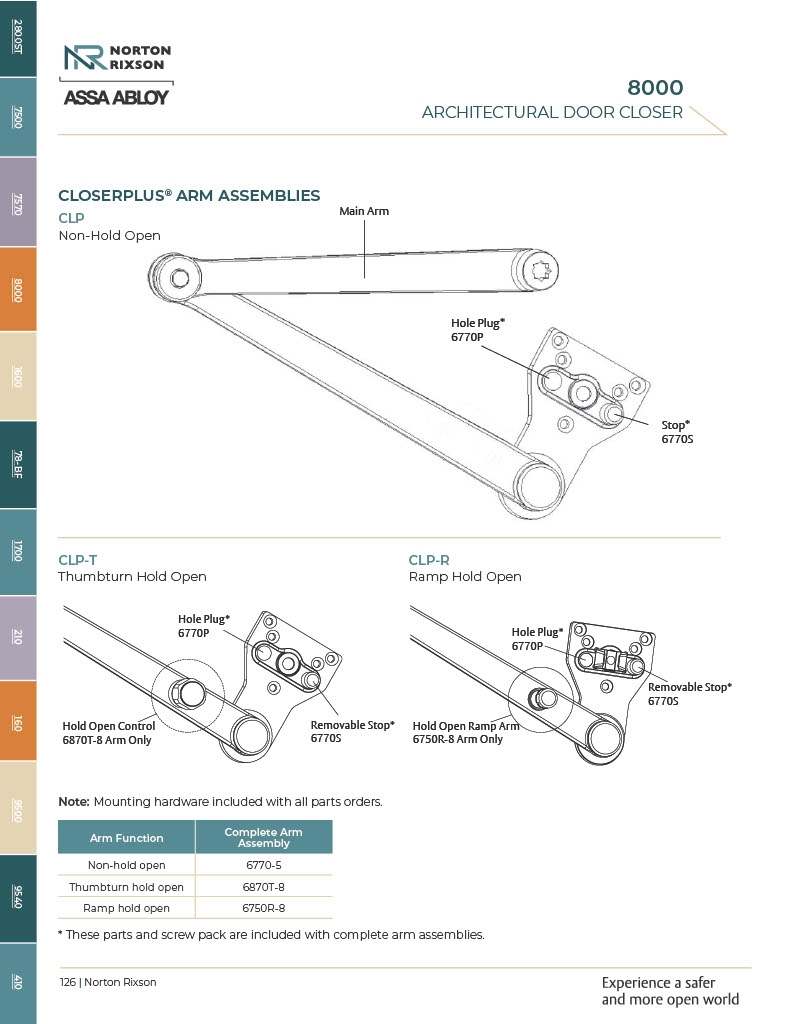

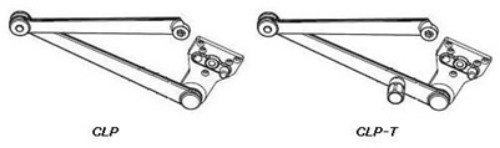

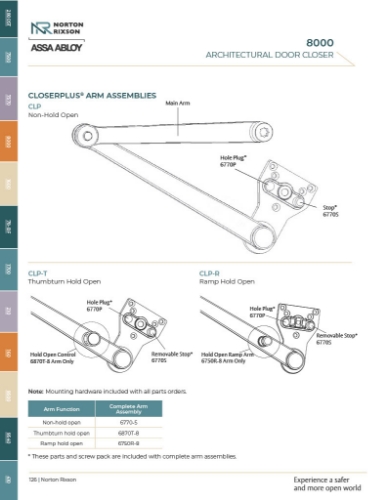

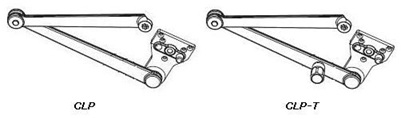

CloserPlus Arm - Similar to the Parallel Rigid arm, this arm incorporates a stop at the arm’s soffit plate to dead stop the door at a predetermined degree of door swing between 85° and 110°, in 5° increments. Prior to dead stop the door closer’s backcheck feature slows the door speed to reduce the impact of the stop action.

The CloserPlus arm is intended for use where an auxiliary door stop cannot be utilized and no more than moderate abuse is anticipated. Where more extreme conditions are expected, use of a Unitrol® arm is recommended.

Hold open strength is adjustable

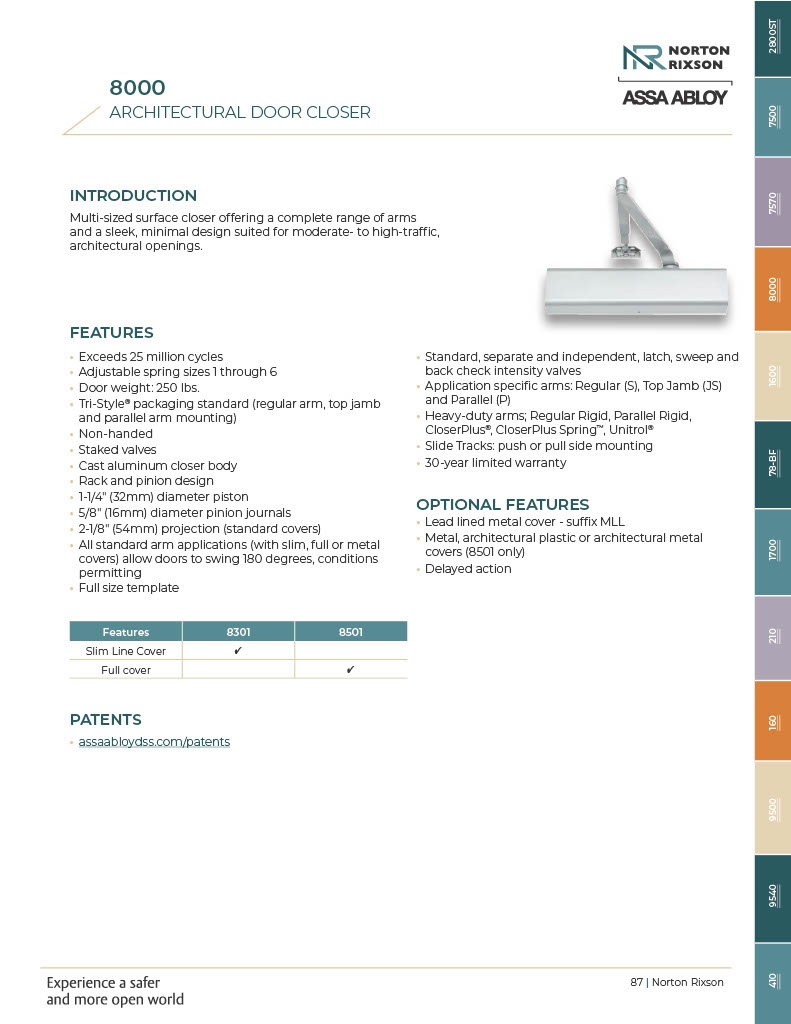

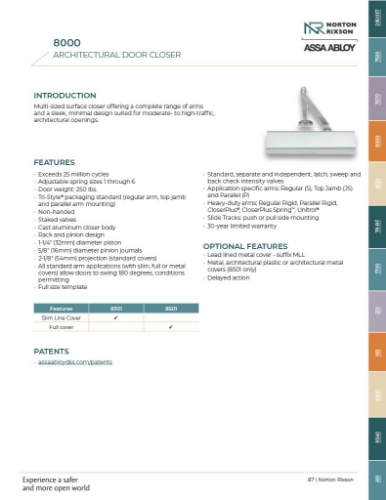

Features

Non-handed

CLP8301 - shipped with slim-line plastic cover

Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes1 through 6.

Standard, separate and independent, latch, sweep andbackcheck intensity valves.

Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

Latch Speed: Allows adjustment of door speed from approximately 10 Degree down to the doors fully closed position.

Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75 of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

Molded plastic cover

All standard arm applications allow doors to swing 180 Degree, conditions permitting

Full-size template

10-year limited warranty

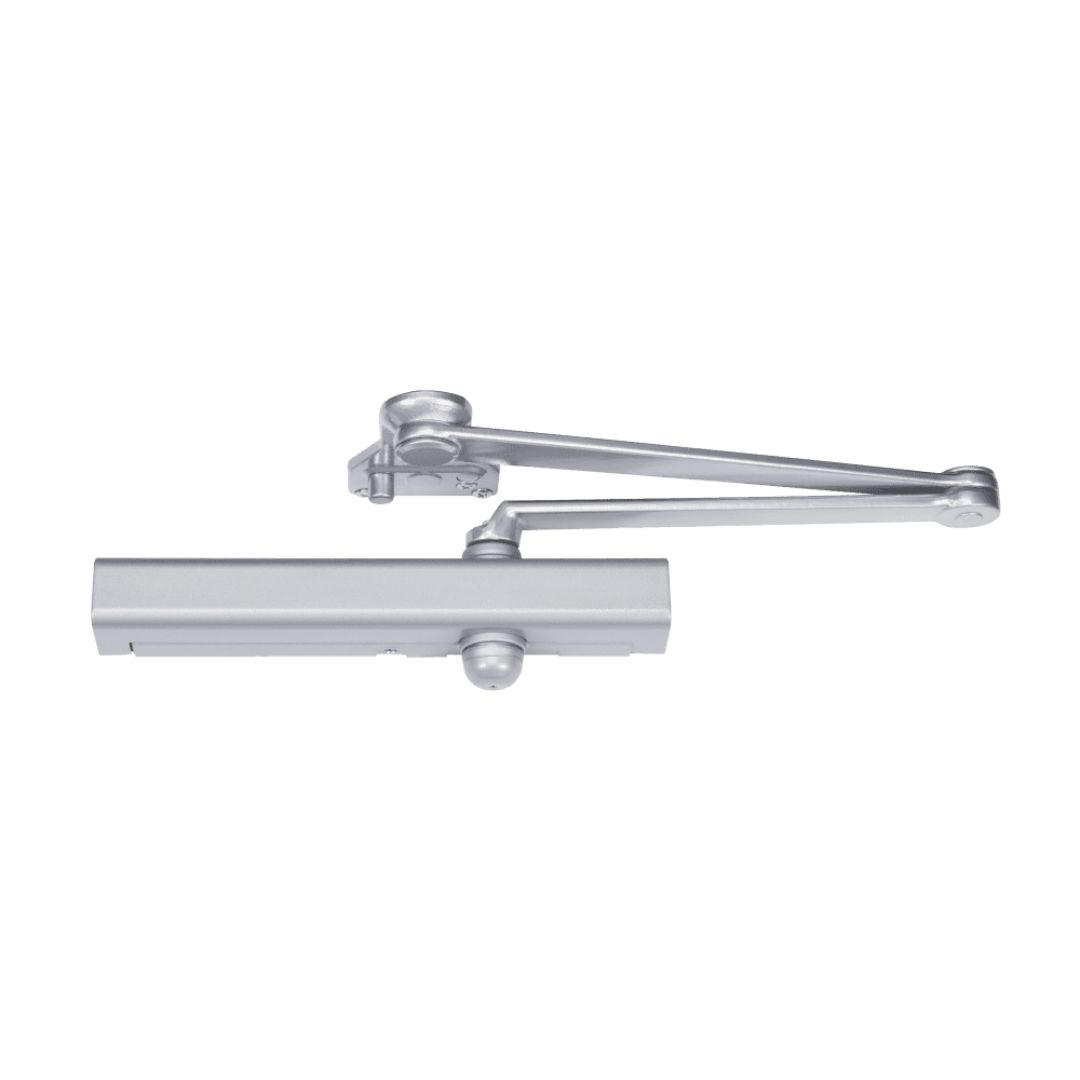

Model: Norton Rixson  Door Closer, CLP8301, CLP8301T, 689, Silver Aluminum Painted, CLP8301689, CLP8301T689, (GR # 1RM64)

Aluminum Alloy Housing

Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interactive steel components and operating conditions.

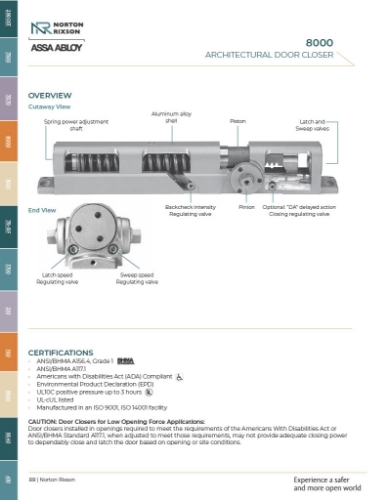

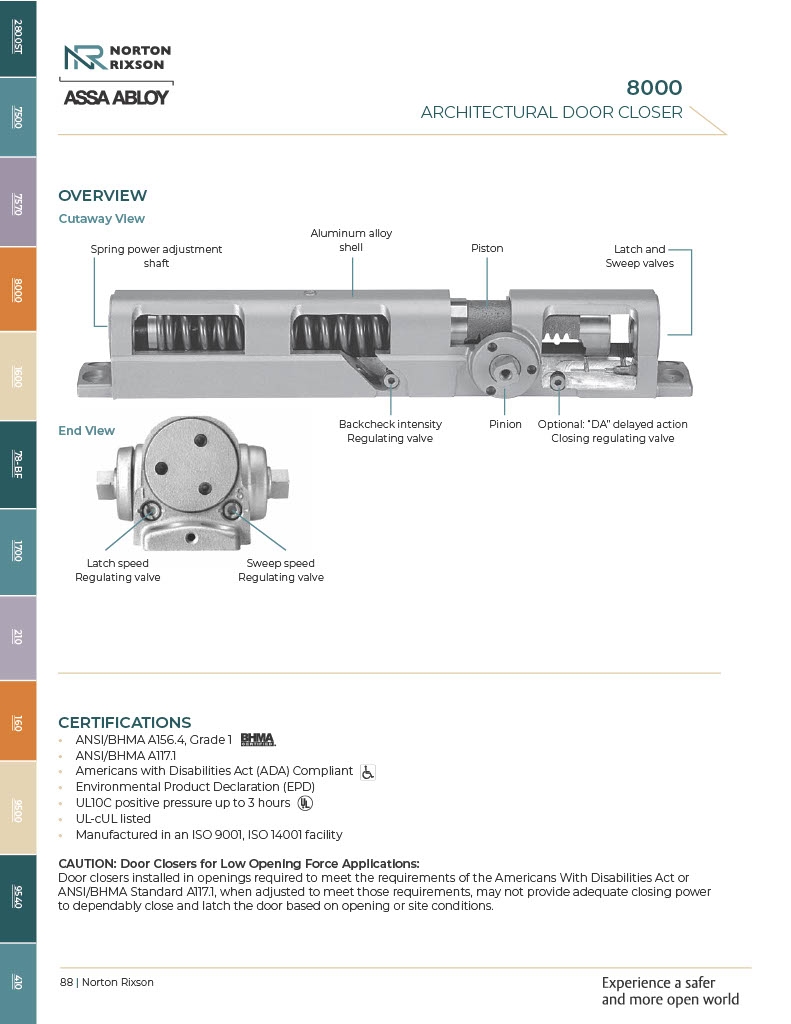

Rack & Pinion Operation

Provides a smooth constant control of thedoor through its full opening and closing cycle. 180 Degree door swing can be achieved when door, frame, hardware and arm function do not interfere.

Standard Molded Covers

Molded of high-impact U.L. listed material. These covers are non-handed for all applications.

 1-1/4" (32mm) diameter piston

 5/8" (16mm) diameter pinion journals

 2-1/8" (54mm) projection (standard covers)

Compliance Standards:  Series 8301 and 8501 door closers are designed to comply with requirements of the Americans with Disabilities Act

(A.D.A.) and ANSI/BHMA standard A117.1. All series 8300/8500/8301/8501 are ANSI/BHMA A156.4, Grade 1 certified.

All Norton series 8300/8500/8301/8501 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies. The product is manufactured in an ISO 9001 facility. These closers are listed by the New York City Materials and Equipment Acceptance Division.
