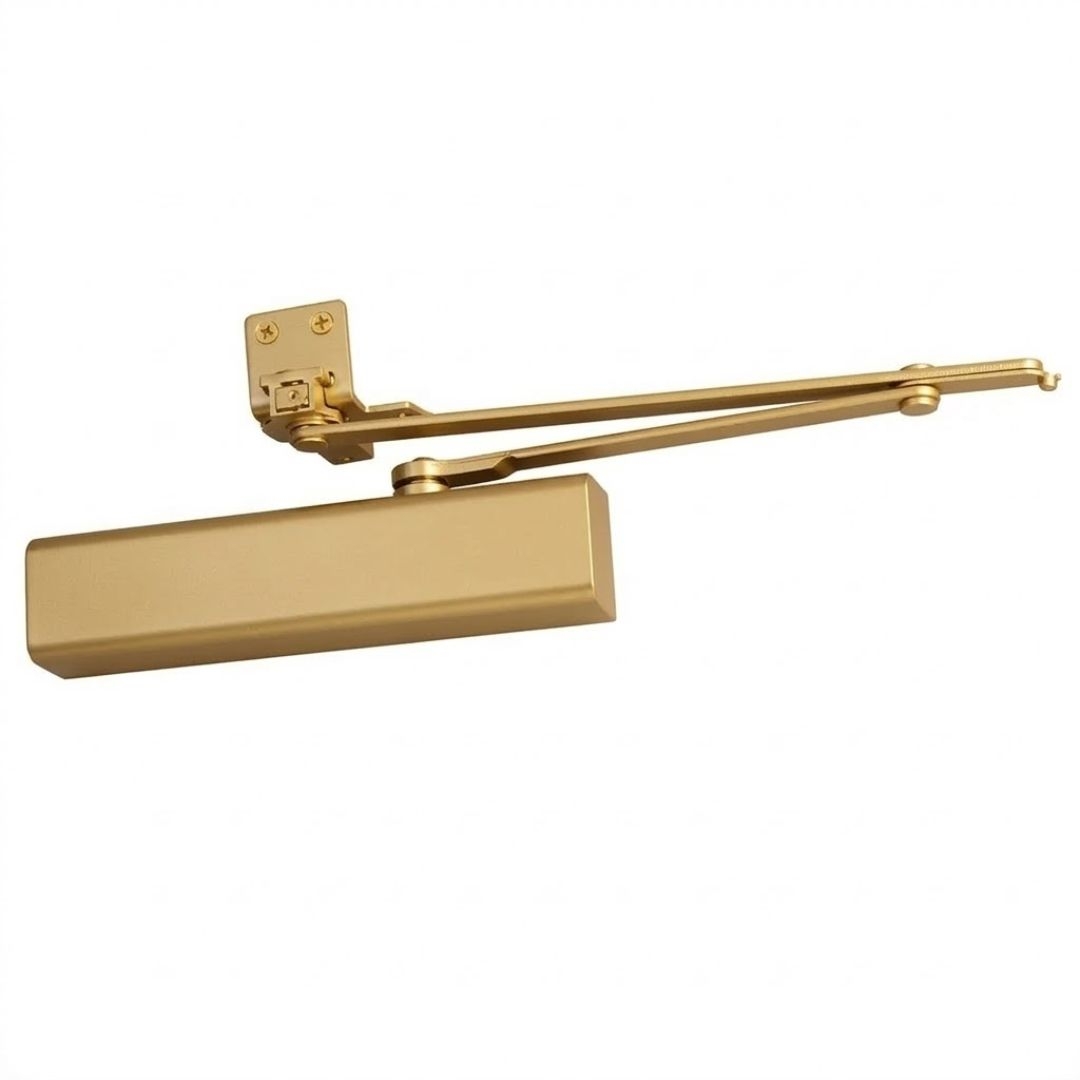

Norton Rixson UNI-8501 Multi-Sized Door Closer with Unitrol Arm

Norton Rixson UNI-8501 Multi-Sized Door Closer with Unitrol Arm

Features

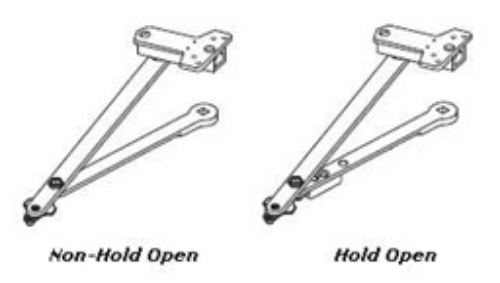

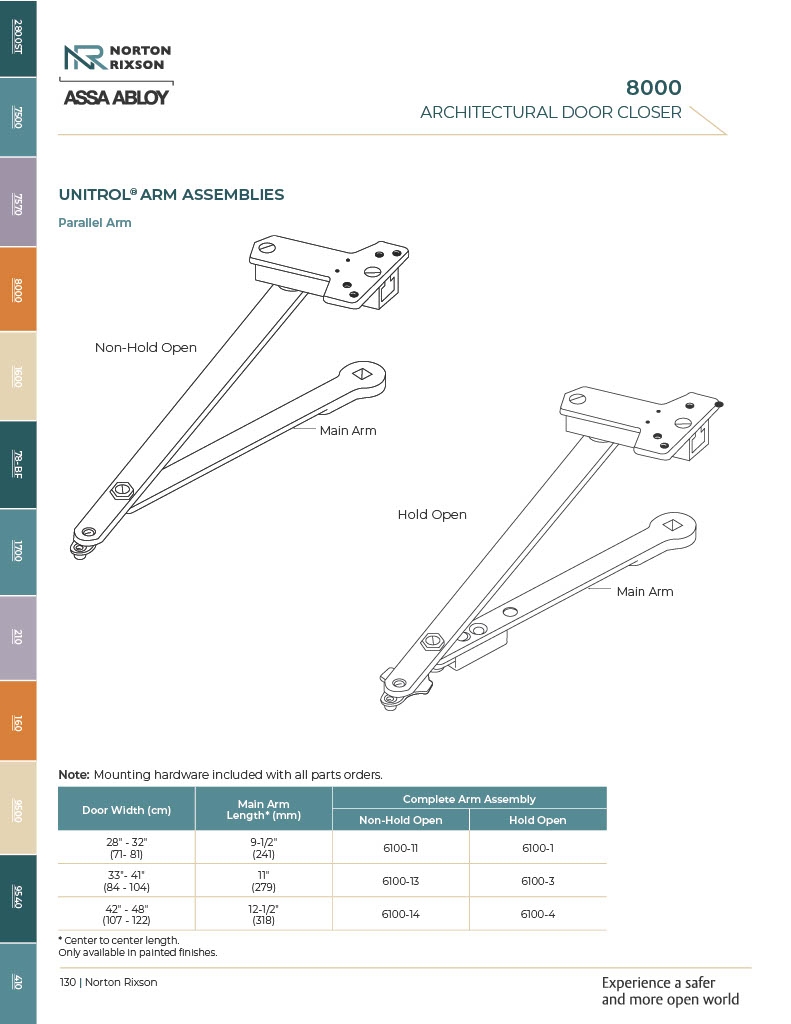

Can be used for either parallel arm or top jamb applications. Unitrol arms combine the features of a double lever arm overhead door stop/holder with the backcheck feature of the door closer to reduce door stopping shock loads to a minimum. The Unitrol uses a compression spring buffer at the soffit plate/arm shoe that will absorb 30 lbs. of force, 5° prior to the doors dead stop. Coupled with the door closers backcheck feature, this arm provides the most controlled stop available with a surface door closer.

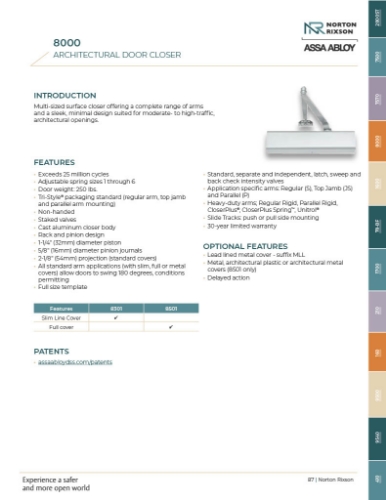

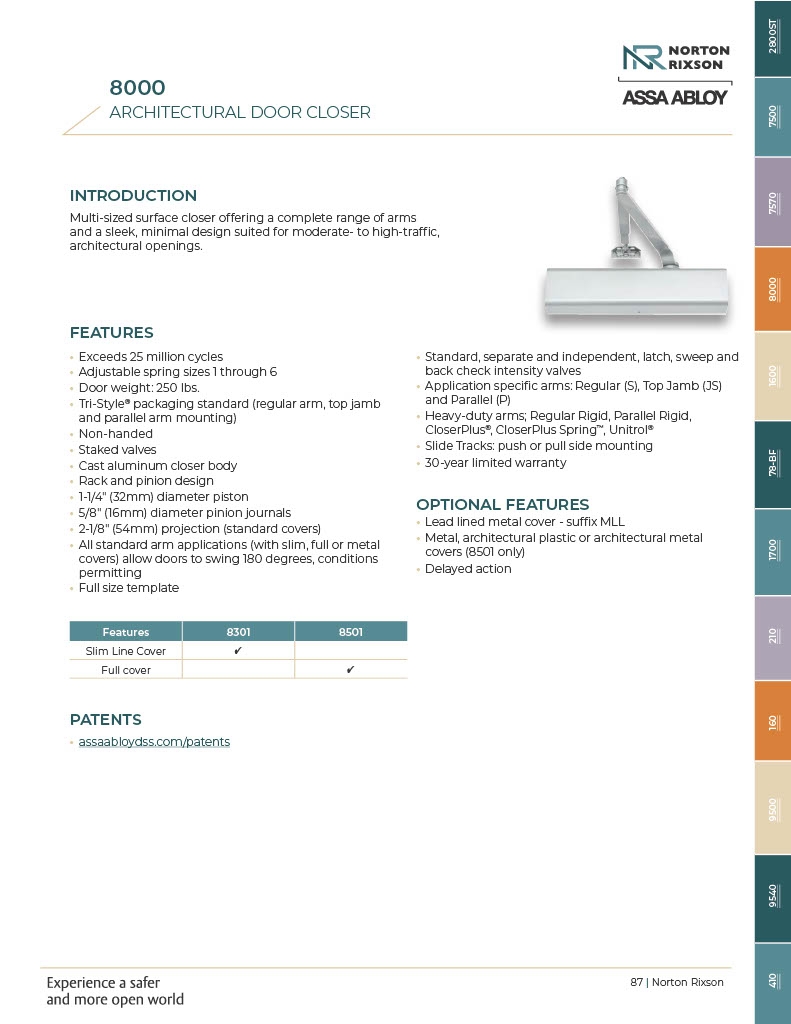

Features

Non-handed

UNI-8501 - shipped with full plastic cover

Power Size: Multi-Sized Door Closer adjustable through the power range of sizes 1 through 6.

Standard, separate and independent, latch, sweep and backcheck intensity valves.

Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.

Latch Speed: Allows adjustment of door speed from approximately 10° down to the doors fully closed position.

Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75° of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

Molded plastic cover

All standard arm applications allow doors to swing 180 Degree, conditions permitting

Full-size template

10-year limited warranty

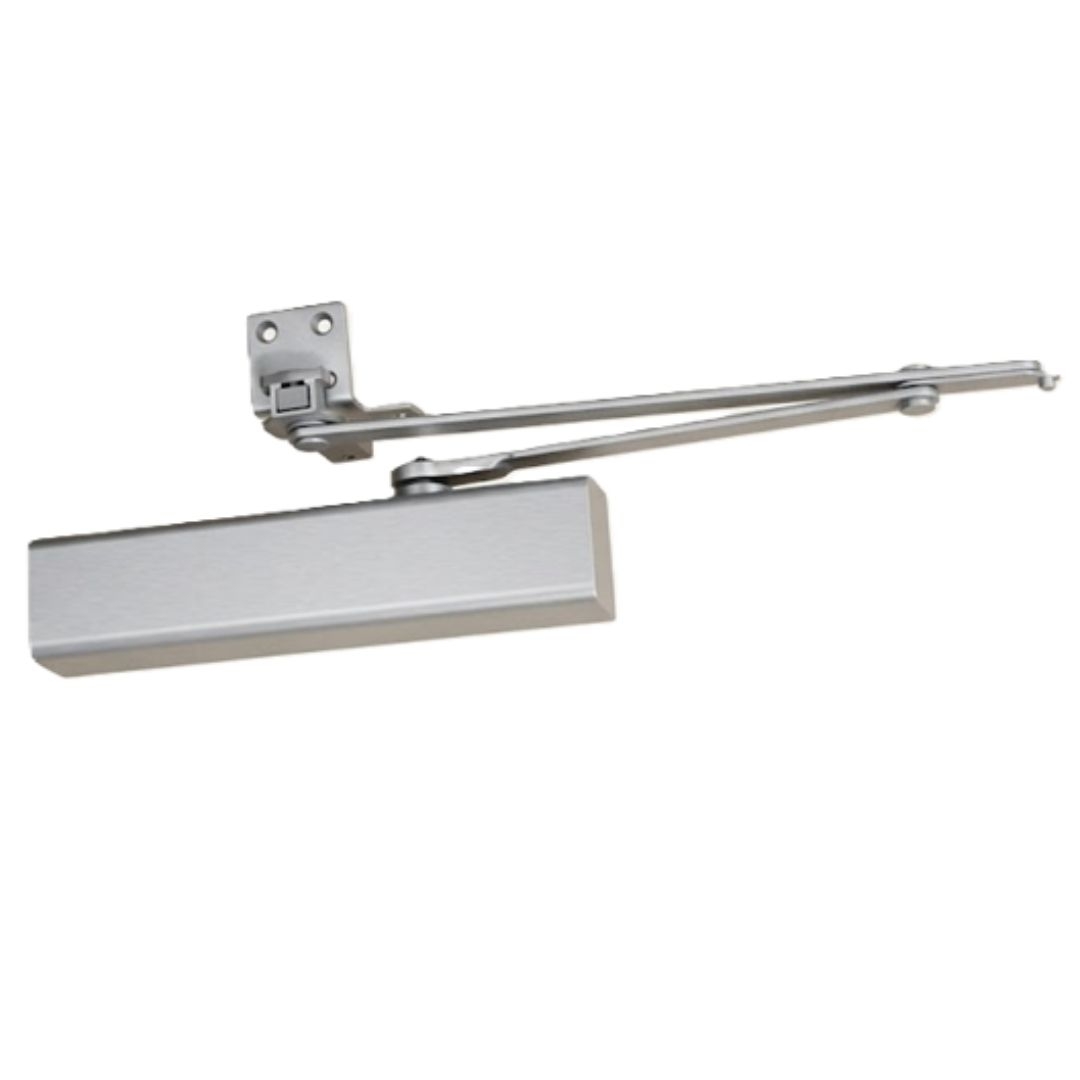

Model: Norton Rixson Door Closer, UNI, 8501, 8501H, UNI8501, UNI8501H, 689, Silver Aluminum Painted, UNI8501689, UNI8501H689

Aluminum Alloy Housing

Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interactive steel components and operating conditions.

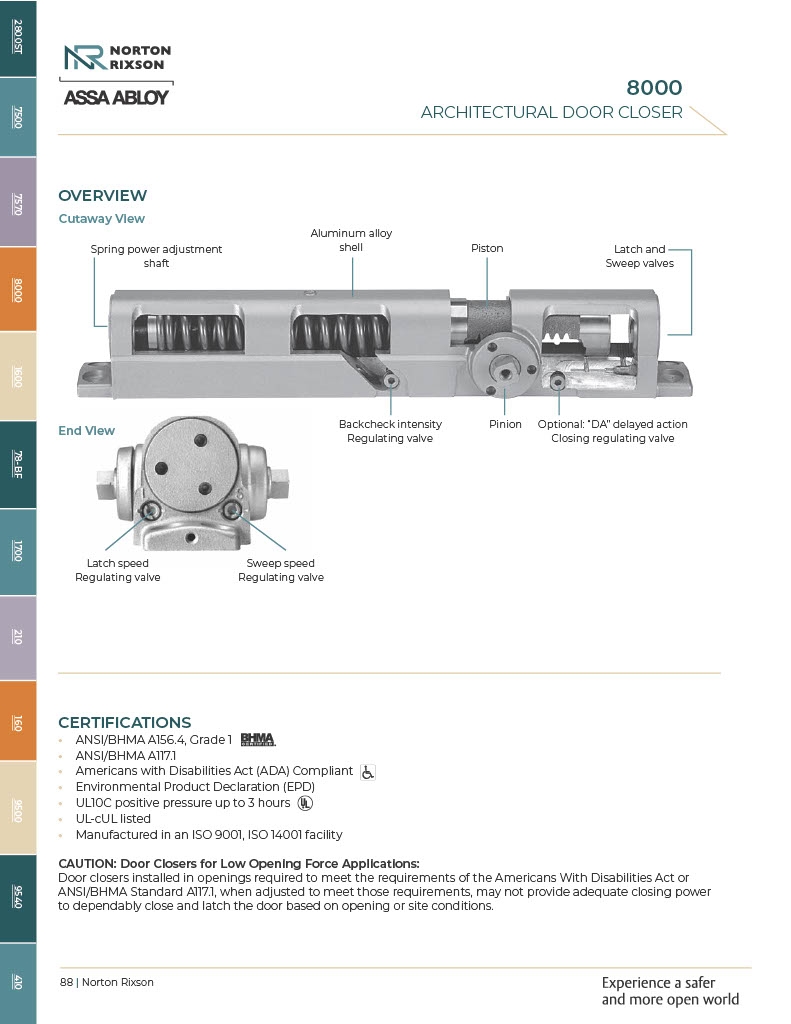

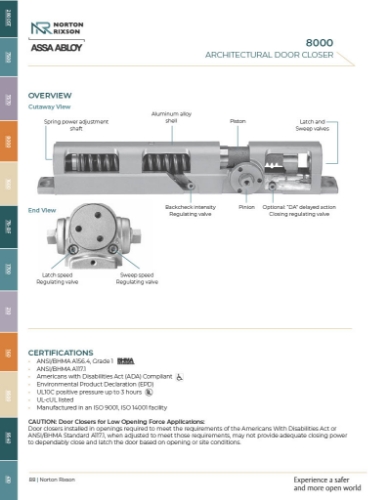

Rack & Pinion Operation

Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not interfere.

Standard Molded Covers

Molded of high-impact U.L. listed material. These covers are non-handed for all applications.

1-1/4" (32mm) diameter piston 5/8" (16mm) diameter pinion journals 2-1/8" (54mm) projection (standard covers)

Compliance Standards: Series 8301 and 8501 door closers are designed to comply with requirements of the Americans with Disabilities Act

(A.D.A.) and ANSI/BHMA standard A117.1. All series 8300/8500/8301/8501 are ANSI/BHMA A156.4, Grade 1 certified.

All Norton series 8300/8500/8301/8501 closers with non-hold open arms are listed by Underwriters Laboratories for labeled fire doors. This includes compliance to UL10C and UBC-72 (1997) for 3-hour assemblies. The product is manufactured in an ISO 9001 facility. These closers are listed by the New York City Materials and Equipment Acceptance Division.
