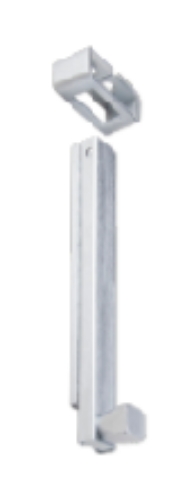

PDQ 462-626 Surface Bolt -Concealed Mounting (Includes Top and Bottom Strikes)

PDQ 462-626 Surface Bolt -Concealed Mounting (Includes Top and Bottom Strikes)

- Suitable for all types of doors. - Fully concealed mounting helps guard against vandalism.

SPECIFICATIONS:

DIMENSIONS: - Body: 7/8" W x 8" L x 7/8" D.  - Actuating Knob Projection: 1-1/2". Top Strike: 2-1/4" W x 1" H x 15/16"" D.  Bottom Strike: 3-3/8" W x 1" H x 1/8" Thick. MATERIAL: - Steel. SURFACE BOLT THROW:  - 1". MOUNTING FASTENERS:  -  5 ea. #12 x 1-1/4" FH PH SMS, 5 ea. 12-24 x 1" FH PH MS, 2 ea. plastic anchors. STRIKES:  - 1ea. universal top strike, 1ea. mortise bottom strike. FINISHES:  -  626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES: -  Complies with ANSI/BHMA156.16, Type L04151. -  Meets requirements of Buy American Act PDQ Surface Bolts, PDQ 462, PDQ462, 462, 462PDQ, 462 PDQ,
