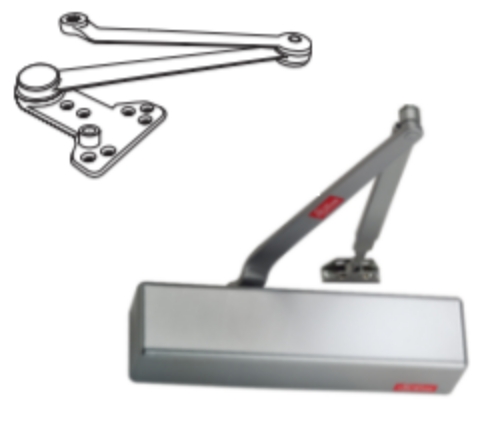

PDQ 5101-BC-DS Grade 1 Grade 1 Surface Door Closers, Backcheck, door saver (Limiting Stop) Arm

PDQ 5101-BC-DS Grade 1 Grade 1 Surface Door Closers, Backcheck, door saver (Limiting Stop) Arm

PDQ offers a comprehensive line of door closers designed and manufactured to ensure superior performance and reliability. They offer the perfect combination of reliability, appearance, and durability. With a wide range of models and features, PDQ has a door closer for most applications.

Typical Applications: Aluminum Storefronts, Assisted Living,Government Facilities, Higher Education, Hospitality, Houses of Worship, Interior Office Doors, Multi-family, Offices, Retail.

Closer Mounting: Parallel Arm (PUSH SIDE) mounting.

FEATURES:

• Features a 1-1/2" diameter hardened steel piston.
• Fully featured architectural style door control.
• Full cover and flat design arm assembly provide both durability and aesthetically pleasing appearance in commercial and institutional applications.
• The closer is ideally suited for installation on wood or metal doors and frames. - The units are non-handed and fully adjustable from size one through six for maximum flexibility. - The standard tri-pack feature provides versatility to permit regular,top-jamb and parallel arm installations.
• A range of sprayed and architectural finishes are available to compliment any d'cor.
• Maximum 4" reveal for Top Jamb.

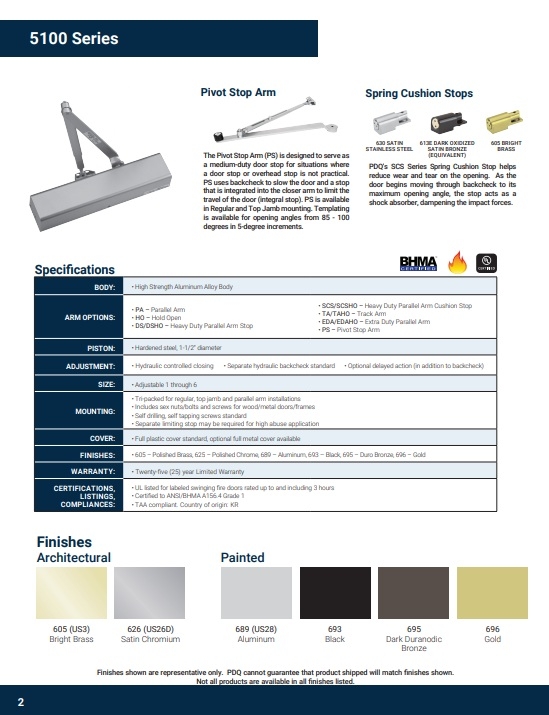

BODY: High Strength Aluminum Alloy Body.

ARM OPTIONS: PA - Parallel Arm. HO - Hold Open. DS/DSHO - Heavy Duty Parallel Arm Stop. RA - Regular Arm. SCS/SCSHO - Heavy Duty Parallel Arm Cushion Stop. A/TAHO - Track Arm. EDA/EDAHO - Extra Duty Parallel Arm. PS -  Pivot Stop Arm.

PISTON: Hardened steel, 1-1/2" diameter.

ADJUSTMENT: Hydraulic controlled closing. Separate hydraulic backcheck standard. Optional delayed action (in addition to backcheck).

SIZE: Adjustable 1 through 6.

MOUNTING: Tri-packed for regular, top jamb and parallel arm installations. Includes sex nuts/bolts and screws for wood/metal doors/frames. Self drilling, self tapping screws available. Separate limiting stop may be required for high abuse application.

COVER: Full plastic cover standard, optional full metal cover available.

COLOR & ARCHITECTURAL FINISHES: 605 - Polished Brass, 625 - Polished Chrome, 689 - Aluminum, 693 - Black, 695 - Duro Bronze, 696 - Gold.

WARRANTY: Twenty-five (25) year Limited Warranty.

CERTIFICATIONS, LISTINGS, COMPLIANCES: UL listed for labeled swinging fire doors rated up to and including 3 hours. Certified to ANSI/BHMA A156.4 Grade 1. Meets requirements of the Buy American Act.
