PDQ 5101-BC-TA-HO Grade 1 Grade 1 Surface Door Closers, Backcheck, Track Arm - Hold Open Arm

PDQ 5101-BC-TA Grade 1 Grade 1 Surface Door Closers,SNB(for body only) Backcheck, Track Arm - Hold Open

PDQ offers a comprehensive line of door closers designed and manufactured to ensure superior performance and reliability. They offer the perfect combination of reliability, appearance, and durability. With a wide range of models and features, PDQ has a door closer for most applications.

Typical Applications: Aluminum Storefronts, Assisted Living,Government Facilities, Higher Education, Hospitality, Houses of Worship, Interior Office Doors, Multi-family, Offices, Retail.

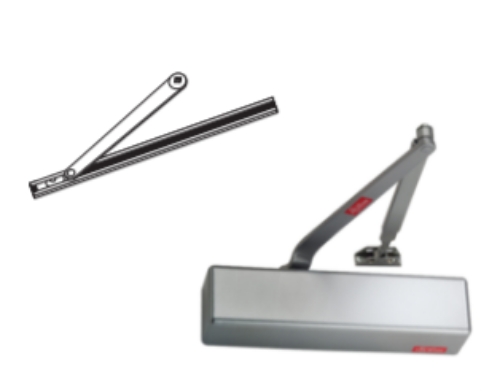

Track Arm (TA): The non-handed Track Arm mount incorporates a single stamped arm not designed to be used as a limiting dead stop. It's low profile helps to eliminate projecting arm conditions, which can reduce vandal damage.

FEATURES:

• Features a 1-1/2" diameter hardened steel piston.
• Fully featured architectural style door control.
• Full cover and flat design arm assembly provide both durability and aesthetically pleasing appearance in commercial and institutional applications.
• The closer is ideally suited for installation on wood or metal doors and frames. - The units are non-handed and fully adjustable from size one through six for maximum flexibility. - The standard tri-pack feature provides versatility to permit regular,top-jamb and parallel arm installations.
• A range of sprayed and architectural finishes are available to compliment any d'cor.
• Maximum 4" reveal for Top Jamb.

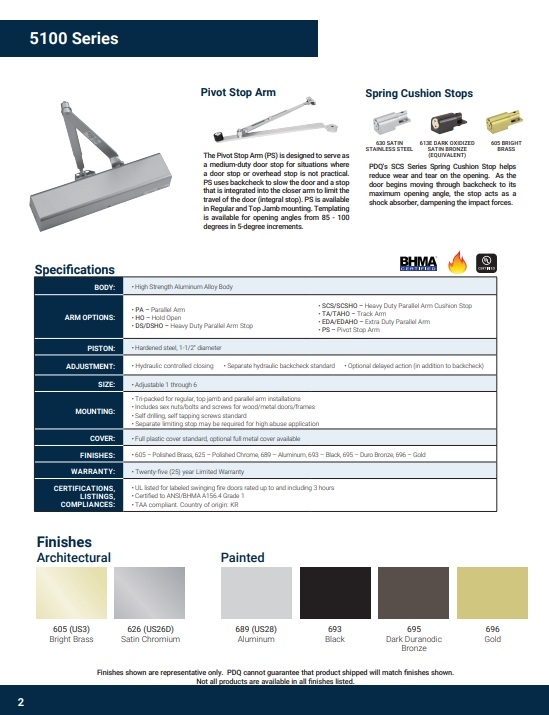

BODY: - High Strength Aluminum Alloy Body. ARM OPTIONS: - PA - Parallel Arm. - HO - Hold Open. - DS/DSHO - Heavy Duty Parallel Arm Stop. - RA - Regular Arm. - SCS/SCSHO - Heavy Duty Parallel Arm Cushion Stop. - TA/TAHO - Track Arm. - EDA/EDAHO - Extra Duty Parallel Arm. - PS - Pivot Stop Arm. PISTON: - Hardened steel, 1-1/2" diameter. ADJUSTMENT: - Hydraulic controlled closing. - Separate hydraulic backcheck standard. - Optional delayed action (in addition to backcheck). SIZE: - Adjustable 1 through 6. MOUNTING: - Tri-packed for regular, top jamb and parallel arm installations. - Includes sex nuts/bolts and screws for wood/metal doors/frames. - Self drilling, self tapping screws available. - Separate limiting stop may be required for high abuse application. COVER: - Full plastic cover standard, optional full metal cover available. COLOR & ARCHITECTURAL FINISHES: - 605 - Polished Brass, 625 - Polished Chrome, 689 - Aluminum, 693 - Black, 695 - Duro Bronze, 696 - Gold. WARRANTY: - Twenty-five (25) year Limited Warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES: - UL listed for labeled swinging fire doors rated up to and including 3 hours. - Certified to ANSI/BHMA A156.4 Grade 1. - Meets requirements of the Buy American Act.

PDQ 5101BCTAHO,5101BCBCTAHO PDQ, PDQ 5101 TA HO, 5101 PDQ, PDQ 5101TAHO, PDQ 5101 689, PDQ 5101 TA HO 689, PDQ DOOR CLOSER, 5100 CLOSER, 5141, PDQ 5141, PDQ 5141TAHO
