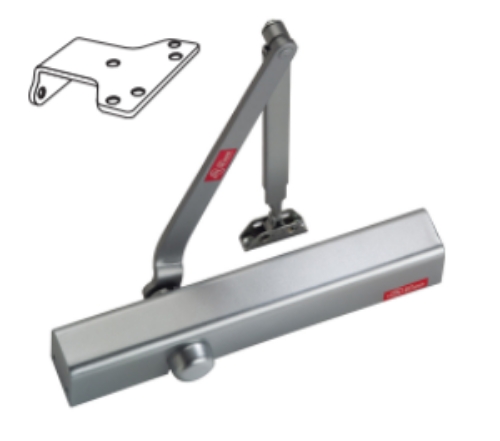

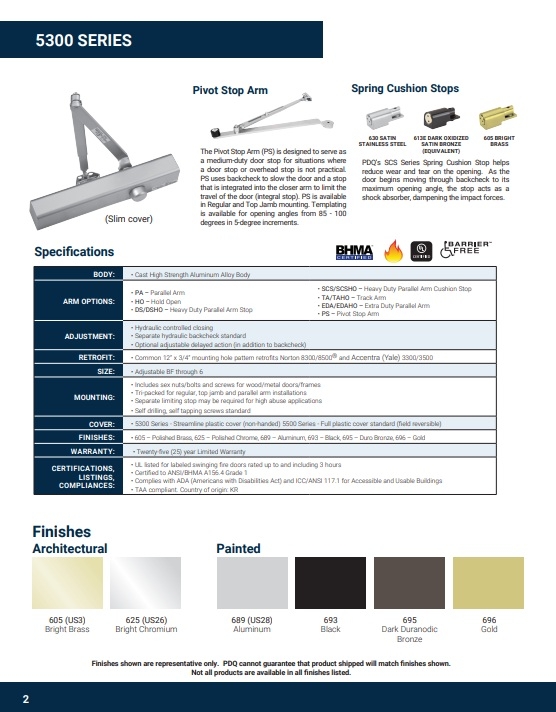

PDQ 5301-BC-PA Grade 1 Commercial Closer, Slim Cover, Tri-pack

PDQ 5301-BC-PA Grade 1 Commercial Closer, Slim Cover, Tri-pack

Features

• 1-1/4" diameter hardened steel piston.
• Heavy duty, fully featured architectural style door control.
•  6 Additional Spring Settings that Provide 17% More Adjustment Capability to Find that Sweet Spot for Optimal Door Closing Action.
• Available with modern streamline cover or full sized cover .
• Compact appearance and features meet the demands of institutional and commercial applications.
• The standard tri-pack, full range spring adjustment and common 12" x 3/4" mounting hole pattern make the 5300/5500 ideally suited for stocking distributors and retrofit applications.
•  Adjustable hydraulic backcheck prevents damage for uncontrolled door opening.
•  Perfect solution for a variety of applications requiring streamline architectural grade door controls.
•  Maximum 4" reveal for Top Jamb.

HANDING:  - Non-handed. OPERATION:  - Rack and pinion design. BODY:  - Cast high strength aluminum alloy. ARM:  - Stamped steel main arm. - Flat style arm assembly. ARM OPTIONS:  - Hold open Arm. - DS/DSHO heavy duty parallel stop arm. - Track/Hold Open Arm. - Spring Cushion Stop for DS/DSHO. - EDA (Extra Duty PA Arm). PISTON:  - Hardened steel. ADJUSTMENT:  - Adjustable controlled closing. - Separate hydraulic backcheck standard. - Separate sweep, latch, and backcheck intensity valves. - Optional adjustable delayed action. SIZE:  - Adjustable BF through 6. - Factory preset to size 3. MOUNTING:  - Common 12" x 3/4" mounting hole pattern retrofits Norton 8300, Yale 3300, DORMA 8600 (for more comparisons, see cross reference table. - Tri-packed for regular, top jamb and parallel arm installations. - Fasteners furnished for hollow metal, wood or aluminum doors and frames. - Sex nuts and bolts standard. - Self-drilling, self-tapping screws available. COVER:  - Streamline plastic cover standard (non-handed). FINISHES:  - 689 Aluminum, 693 Black, 695 Duro Bronze, 696 Gold, 605 Polished Brass, 626 - Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - UL and ULC listed. - UL 10C listed. - Certified to ANSI/BHMA A156.4-2006 Grade 1. - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. - Meets requirements of the Buy American Act WARRANTY:  - Twenty-five (25) year limited warranty.
