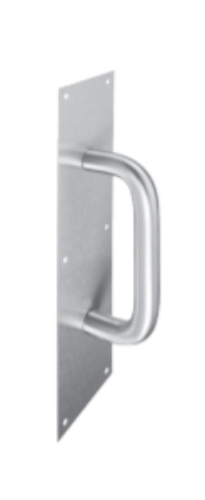

PDQ 862-3D, 3-1/2" x 15",Plate Size, 1" Round Straight Pull - 8" CTC

PDQ863
PDQ863
naxt
prev

Product Details

PDQ 86-2-3D, 1" Round Straight Pull - 8" CTC

SPECIFICATIONS:

PLATE SIZE: - 3-1/2" x 15" (Ref 962 Series Push Plate). Mounting Options: 1 - TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default). 12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head. 6 - TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others). 6R - TYPE 6R Surface Concealed for Metal Door (Rivnut). 8 - TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert). PULL SERIES: 3D - 1" DIA, 8" Center to Center. OVERALL PROJECTION: -2-5/16". THICKNESS: - 0.050". PLATE MOUNTING FASTENERS: -  #6 x 5/8 OH PH SMS. FINISHES: - 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum, 630 (US32D) Satin Stainless Steel (Grade 304). -  Available with Antimicrobial Coating 630 (US32D) only.

PDQ 8623D, 8623D, 86-2-3D, PDQ 86-2-3D, 86-2-3D PDQ, 8623D PDQ, PDQ8623D, 8623DPDQ, PDQ86, 86PDQ, PDQ PULL PLATES

PDQ 862-3D, 3-1/2" x 15",Plate Size, 1" Round Straight Pull - 8" CTC

SKU: 8623D

In Stock
Picture for manufacturer PDQ
icon Chat

$42.90

Finish *

628 - Aluminum Clear Anodized
628 - Aluminum Clear Anodized
630 - Satin Stainless - Steel [+$13.20]
630 - Satin Stainless - Steel [+$13.20]
605 - Bright Brass [+$35.20]
605 - Bright Brass [+$35.20]
606 - Satin Brass [+$35.20]
606 - Satin Brass [+$35.20]
612 - Satin Bronze [+$35.20]
612 - Satin Bronze [+$35.20]
613E - Dark Oxidized Bronze Finish [+$35.20]
613E - Dark Oxidized Bronze Finish [+$35.20]

Option *

About this item

PDQ 86-2-3D, 1" Round Straight Pull - 8" CTC

SPECIFICATIONS:

PLATE SIZE:
- 3-1/2" x 15" (Ref 962 Series Push Plate).
Mounting Options:
1 - TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default).
12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head.
6 - TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others).
6R - TYPE 6R Surface Concealed for Metal Door (Rivnut).
8 - TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert).
PULL SERIES:
3D - 1" DIA, 8" Center to Center.
OVERALL PROJECTION:
- 2-5/16".
THICKNESS:
- 0.050".
PLATE MOUNTING FASTENERS:
-  #6 x 5/8 OH PH SMS.
FINISHES:
- 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum, 630 (US32D) Satin Stainless Steel (Grade 304).
-  Available with Antimicrobial Coating 630 (US32D) only.

PDQ 8623D, 8623D, 86-2-3D, PDQ 86-2-3D, 86-2-3D PDQ, 8623D PDQ, PDQ8623D, 8623DPDQ, PDQ86, 86PDQ, PDQ PULL PLATES

Resources

PDQ 86-2-3D, 1" Round Straight Pull - 8" CTC

SPECIFICATIONS:

PLATE SIZE: - 3-1/2" x 15" (Ref 962 Series Push Plate). Mounting Options: 1 - TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default). 12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head. 6 - TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others). 6R - TYPE 6R Surface Concealed for Metal Door (Rivnut). 8 - TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert). PULL SERIES: 3D - 1" DIA, 8" Center to Center. OVERALL PROJECTION: -2-5/16". THICKNESS: - 0.050". PLATE MOUNTING FASTENERS: -  #6 x 5/8 OH PH SMS. FINISHES: - 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum, 630 (US32D) Satin Stainless Steel (Grade 304). -  Available with Antimicrobial Coating 630 (US32D) only.

PDQ 8623D, 8623D, 86-2-3D, PDQ 86-2-3D, 86-2-3D PDQ, 8623D PDQ, PDQ8623D, 8623DPDQ, PDQ86, 86PDQ, PDQ PULL PLATES
