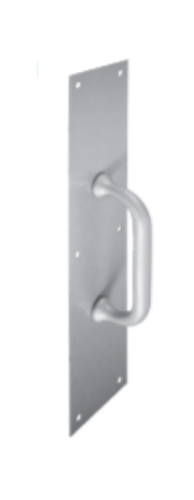

PDQ 863-11, 4 X 16" Plate Size, Cast Pull 5-1/2" CTC Cast Pull 5-1/2" CTC

About this item

PDQ 86-3-11, 4" X 16" Plate Size, Cast Pull 5-1/2" CTC

SPECIFICATIONS:

PLATE SIZE:
- 4" x 16".
Mounting Options:
1 - TYPE 1 Thru Bolt for Metal, Composite or Wood Door (Default).
12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head.
PULL SERIES:
11 - Cast Pull.
5 1/2" Center to Center.
OVERALL PROJECTION:
- 2-7/8".
THICKNESS:
- 0.050".
PLATE MOUNTING FASTENERS:
-  #6 x 5/8 OH PH SMS.
FINISHES:
- 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum, 630 (US32D) Satin Stainless Steel (Grade 304).
-  Available with Antimicrobial Coating 630 (US32D) only.

PDQ 86311, 86311, 86-3-11, PDQ 86-3-11, 86-3-11 PDQ, 86311 PDQ, PDQ86311, 86311PDQ, PDQ86, 86PDQ, PDQ PULL PLATES

Resources

• PushPlates-Pulls-Brochure.pdf
