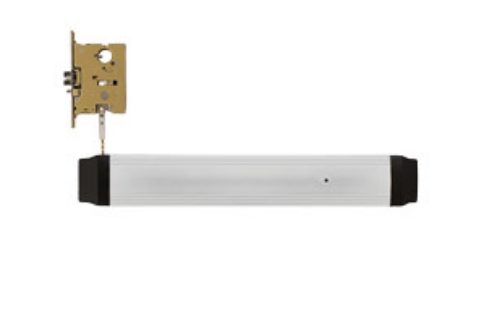

Von Duprin 9475EO / 9575EO Inpacted Exit Device, Exit Only, No Trim, Mortise lock device

Von Duprin 9475EO / 9575EO Inpacted Exit Device, Exit Only, No Trim, Mortise lock device**

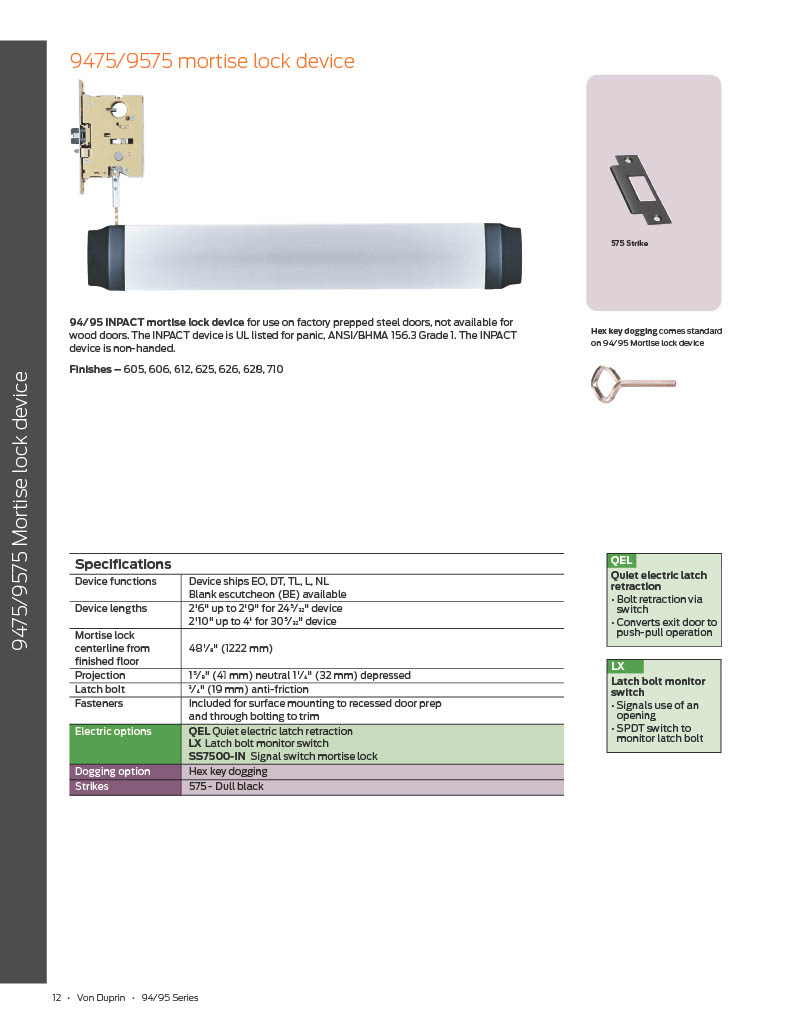

Specifications:

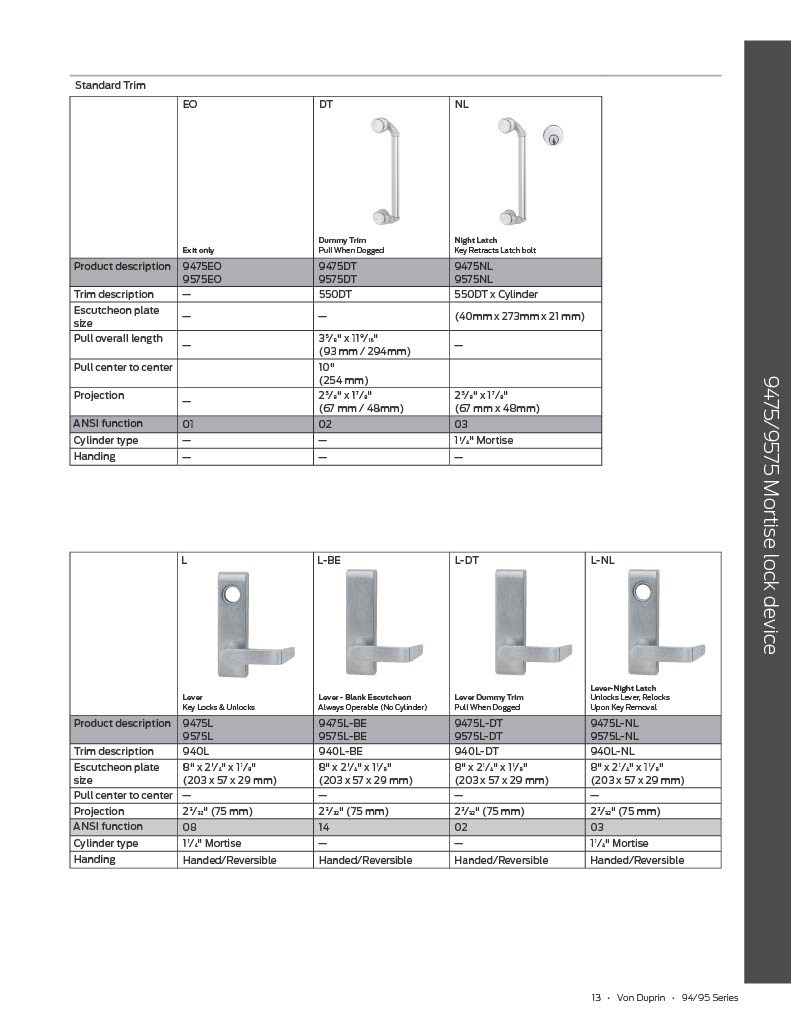

Device functions: - Device ships EO, DT, TL, L. - Blank escutcheon (BE) available. Device lengths:

• 2'6" Up to 2'9" for 24 5/32" device.
• 2'10" up to 4' for 30 5/32" device. Device centerline from finished floor:   - 39 5/8" (1006 mm). Projection:

-1 5/8" (41 mm) neutral. - 1-1/4" (32 mm) depressed. Latchbolt:

• 5/8" (16 mm) throw.
• deadlocking latchbolt standard. Door undercut: -  1/4" (7 mm) maximum. Top & bottom latch case assembly: -  4 1/2" X 2 1/8" x 1 1/2" (114 mm x 54 mm x 38 mm). Vertical rods Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) can be adjusted by removing the latchside endcap. Fasteners Included for surface mounting to recessed door prep and through bolting to trim

Electric options: QEL - Quiet electric latch retraction - Bolt retraction via switch - Converts exit door to push-pull operation. LX- Latchbolt monitor switch - Signals use of an opening - SPDT switch to monitor latch bolt.

Mechanical options: LBR -Less bottom rod - Available with UL Fire Label - For pairs of vertical rod devices. PL - pullman latch (with electric strike -ES).

Dogging option:- Hex key dogging.

StrikesTop - 338 unfinished, botom - 385A unfinished.

Finishes: US3, US4, US10, US26, US28, 313.

Sex bolts- Not included.

Door thickness- 1-3/4".

Center line -39-13/16".

Strike -575 strike.
