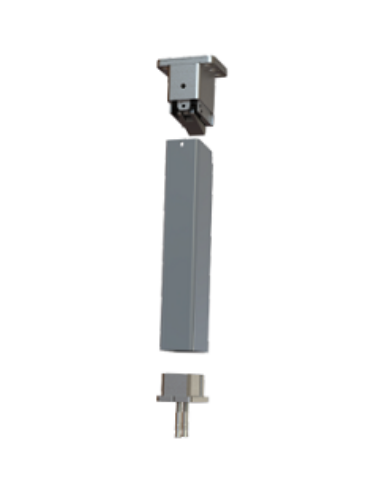

PDQ 9311-689-EL, 10' Electrified mullion, Hex Key Removable

PDQ 9311-689-EL, 10' Electrified mullion, Hex Key Removable

Product Details

PDQ 9311-689EM, 10' Electrified mullion, Hex Key Removable

9311-689-EM:Mullion, removable by use of hex key, 10' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex connectors.

Specifications:

9300 Mullions SERIES Mullion Head/Foot brackets: Cast Stainless Steel Tube.Dimensions:

Powder Coated 2" x 3" Steel - 3/16" Wall.

Strike: - 639080 Strike included for Fire Labeled. - Strike not included for panic mullion. Use supplied strike with exit device.

Size:8' or 10' lengths - Can easily be cut to shorter size in field. Finish: Powder Coated 689 (Aluminum) - can be painted.

Electrified Options: Wire routing w/ plugs.

Warranty: One (1) year limited warranty. Certifications: Compliances: Listings: - Fire model is 3 hour fire labeled for pairs up to and including 8' x 8' (With 6300RF/6400RF Rim Device). - Meets requirements of the BAA as a COTS product manufactured in the United States.

PDQ 9310, 9310EM PDQ, PDQ9310EM, PDQ 9310-689-EM

PDQ 9311-689-EL, 10' Electrified mullion, Hex Key Removable

Name: PDQ 9311-689-EL, 10' Electrified mullion, Hex Key Removable
SKU: 9311-EM
Price: 626.08 USD
Availability: InStock

SKU: 9311-EM

In Stock

Chat

$626.08

Oversized item, extra shipping charge may be added

About this item

The PDQ 9300 Series removable mullions are designed for use with the 6300/6400 Series Rim Exit Devices on pairs of doors. They are designed for quick removal from the top bracket by simple operation of the rim cylinder when a clear, unobstructed large opening is required. Once the mullion is removed, carts, gurneys, large machinery and the like can freely pass through the opening. When the mullion is re-installed, the unit will self lock in place without a key.
