PDQ 999018 PS Pivot Stop Arm

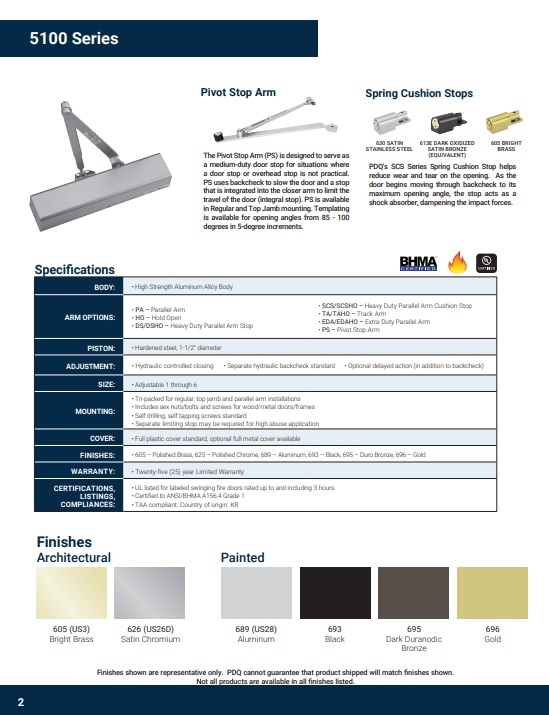

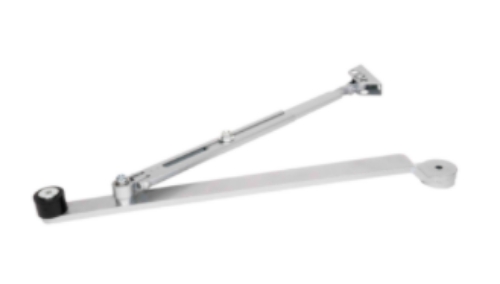

The Pivot Stop Arm (PS) is designed to serve as a medium-duty door stop for situations where a door stop or overhead stop is not practical. PS uses backcheck to slow the door and a stop that is integrated into the closer arm to limit the travel of the door (integral stop). PS is available in Regular and Top Jamb mounting. Templating is available for opening angles from 85 - 100 degrees in 5-degree increments.

• Pivot Stop (PS) is designed to serve as a medium-duty door stop for situations where a door stop or overhead stop is not practical.
• Available in Regular and Top Jamb mounting.
• Uses backcheck to slow the door and a stop integrated into the closer arm to limit the travel of the door (integral stop).
• Limits the travel of the door to a specific, templated angle. - Templating is available for opening angles from 85-110 degrees in 5-degree increments.
• Available for use with 5500, 5300, 5100, and 3100 Series closers.
• Not available with hold open.

CLOSER COMPATIBILITY 5500 Series 1 Commercial Full Featured Closer with Full Cover 5300 Series 1 Commercial Full Featured Closer with Slim Cover 5100 Series 1 Commercial Full Featured Closer with Full Cover 3100 Series 1 Light Commercial Closer with Full Cover (Optional slim cover)
