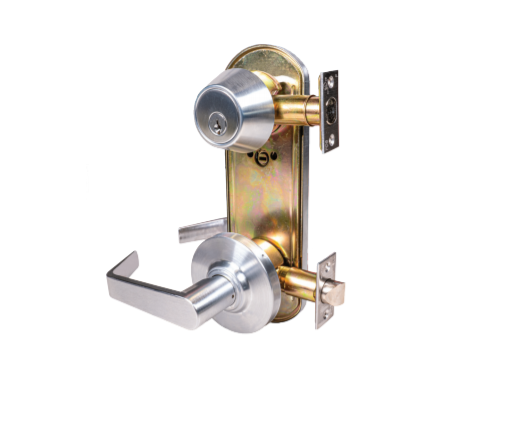

PDQ CL126 Entrance Lever Grade 2 Standard Duty Inter-Connected Lock

PDQ CL176 Entrance, Passage Lever*Grade 2 Standard Duty Inter-Connected Lock*

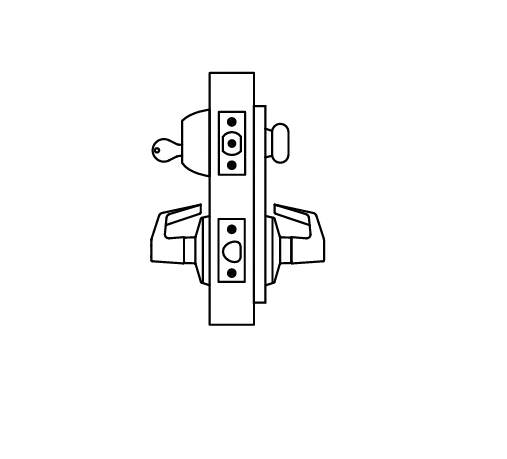

Function:*Entrance, Passage Lever* ANSI: F95 - Outside and Inside lever always free. - Deadbolt projected or retracted by key outside or turnpiece inside. - When deadbolt is projected, turning inside knob/lever retracts deadbolt and latchbolt simultaneously

PDQ CL Series Specifications

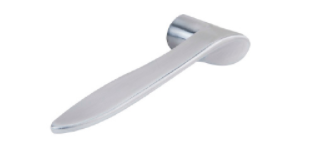

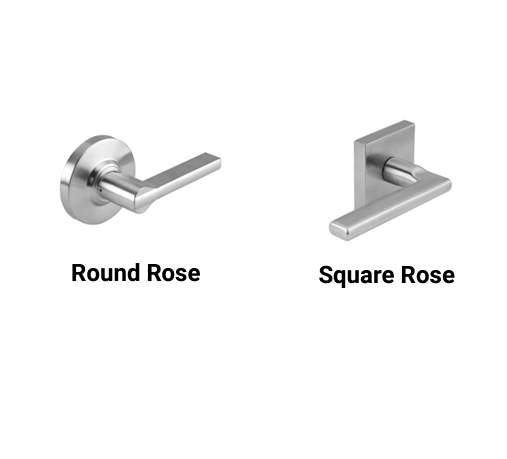

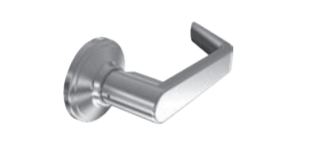

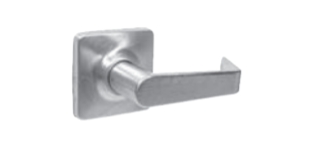

FOR DOORS:  - 1-3/8"  and 1-3/4"  thick. PREPARATION: - ANSI/BHMA A156.115 for 4" and 5-1/2" hole centers, field selectable. DUST BOX: Included for Latchbolt and Deadbolt. LATCHBOLT BACKSET: - 2-3/8" or 2-3/4" (Default). Specify when ordering. DEADBOLT*BACKSET:* - Field adjustable for 2-3/8" and 2-3/4" (Default). STRIKE:  -  T -Strike (Default). - ASA or Full-Lip optional. LEVERS: - Boston, Miami, Memphis, Orlando, Philadelphia. ROSE:- 2-3/8"  Round Rose, 2-15/16" Square Rose. INSIDE ESCUTCHEON: - 3-3/4" W x 9-3/4" H (Wrought). LATCHBOLT:  - 1/2" Throw . DEADBOLT:  - ADA compliant. HANDING:  - Non-handed (Except for Memphis Lever) KEYS:  Two (2) per Lock. KEYWAYS:  -  SCC Default (Schlage C Compatible). - For additional keyways, see Cylinders and Keying section. INTERCHANGEABLE CORE: - 6-pin or 7-pin. - Compatible with Best SFIC.  Memphis lever not available in SFIC. Not available in high security. CONVENTIONAL KEY IN KNOB/LEVER CYLINDER:  - 6-pin Cylinder keyed to 5-pins. KEYING:  - Options: MK, CMK, or GMK, Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA). - Can be keyed into existing master key systems. FINISHES:  - 605 (US3) Bright Brass, 613 (US10B) Oil Rubbed Bronze, 622 (US19) Flat Black, 626 (US26D) Satin Chrome. CERTIFICATIONS, LISTINGS, COMPLIANCES:-  ANSI, Grade 2. -  UL listed for 3 hrs, for single doors up to 4"0" x 8"0". - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:  - Two (2) year Limited Warranty.

PDQ CL126, CL126 PDQ, PDQCL126, PDQ CL SERIES, PDQ CL, PDQ CL126, 626, 605, 613, 622
