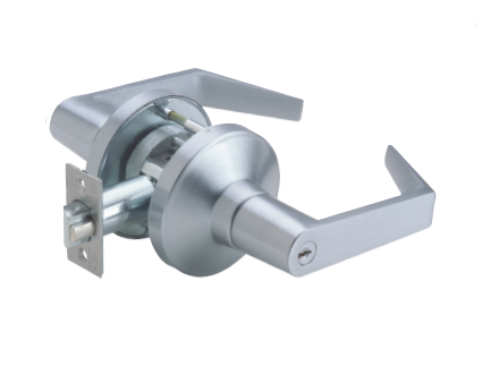

PDQ XGT148 Classroom Grade 1 Extra Heavy Duty Cylindrical Lock
Most manufacturers approach to lock design ends with simply meeting BHMA/ANSI standards but PDQ's philosophy is to step out of the box and develop innovative designs that take locks to the next level. We don't just meet the standard, we crush it. Our design doctrine delivers the confidence that locks are built to last, whether the application calls for resistance to high abuse or to millions of cycles of operation without any degradation in performance.

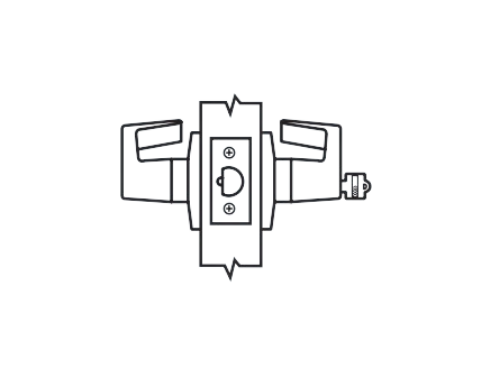

Function:Classroom
- Latchbolt operated by lever from either side.
- Outside lever locked by key from outside.
- Outside lever unlocked by key from outside.
- Inside lever always operates latch
ANSI: F84PDQ XGT Series Specifications
FOR DOORS:
- 1-3/4" to 2-1/4" thick.
- Preset for 1-3/4" door.
APPLICATION:
- Through door thru-bolting.
DOOR PREP:
- Standard ANSI A156.115 (161) for Cylindrical Locks.
BACKSET:
- 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional.
- Heavy duty diecast, investment cast, chromated cold rolled steel and stainless steel mechanism.
- Billet Steel spindles for locking functions
FRONT:
- 2-1/4" x 1-1/8"
- Stainless Steel or Wrought Brass
- Beveled 1/8" in 2".
STRIKE:
- ASA standard.
- T-Strike or Full Lip Strike optional.
- Stainless Steel or Wrought Brass.

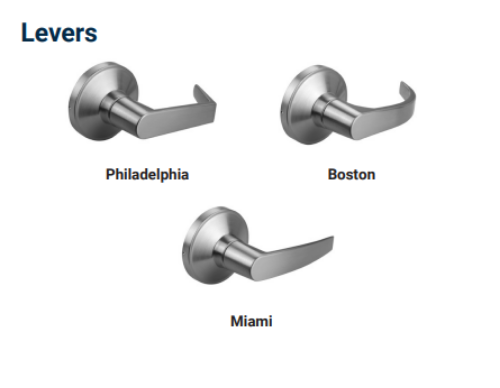

LEVERS:
- Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL).
ROSE:
- 3-3/8" DIA Wrought.
LATCHBOLT:
- 9/16" Throw Deadlocking.
- 3/4" Latch projection for available as option.
HAND:
- Non-handed.
TRIM:
- Solid diecast PHL, BSN or MIA Levers.
- 41 Degree Lever Rotation Standard with 2-3/4" Backset.
- W rought Brass Roses, Concealed Screws.
- 65 Degree Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only
KEYS:
- Two (2) per Lock.
KEYWAYS:
- SCC standard (Schlage C Compatible).
- Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:
- Available for all keyed functions.
- 6 or 7-pin.
- Large Format IC Core available for PHL Lever ONLY.
- Compatible with Best, Falcon and Arrow.
CYLINDER:
- 6-pin Brass Insert Cylinder keyed to 5-pins.
- Standard High Security and UL437 Cylinders Available
KEYING:
- Options: MK, CMK or GMK.
- Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems

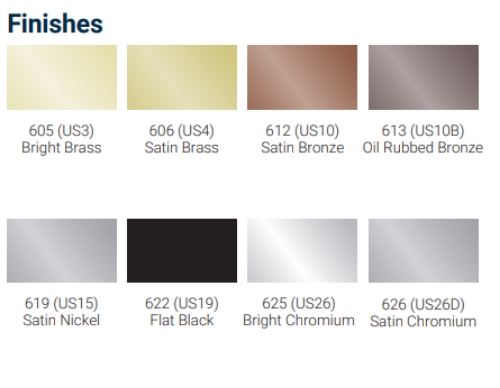

FINISHES:
- 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D).
- Optional Antimicrobial Coating 626 (USD26D) only.
CERTIFICATIONS,*LISTINGS, COMPLIANCES:*
- UL listed for 3 hrs, for single doors up to 4'0" x 8'0".
- Optional 3/4" (19mm) throw deadlocking fire latch (FRL) available for pairs of doors.
- Certified to ANSI/BHMA A156.2, Grade 1.
- California Education Code Compliant (Functions XGT135, XGT135LED, XGT145).
- Federal Specification FF-H-10C (Superseded by A156.2).
- Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval: FL 21376.
- Design load rating: 70.0 PSF for single door (3' x 7").
- Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings.
WARRANTY:Limited Lifetime Warranty.
COUNTRY OF ORIGIN:Proudly Assembled in the U.S.A. with U.S. and foreign material.
Meetsrequirements of the Buy American Act.
PERFORMANCE, MECHANICAL:
- Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard).
- Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard).
PERFORMANCE, MECHANICAL:
- Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard).
- Lever torque tested to over 3,000 in-lbs (4 times the ANSI/BHMA Grade 1 standard).
