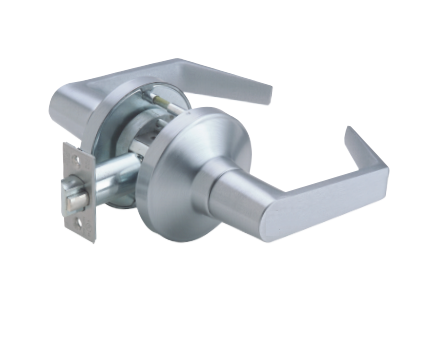

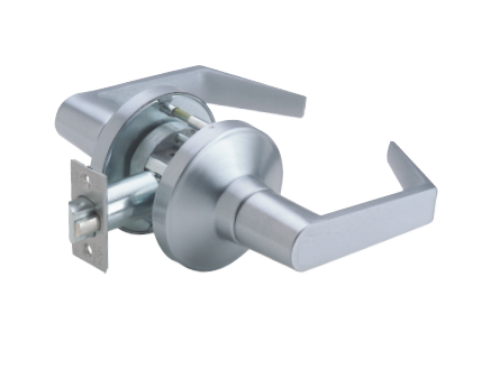

PDQ XGT124 EXIT Grade 1 Extra Heavy Duty Cylindrical Lock

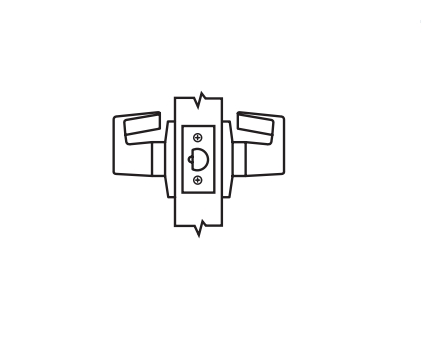

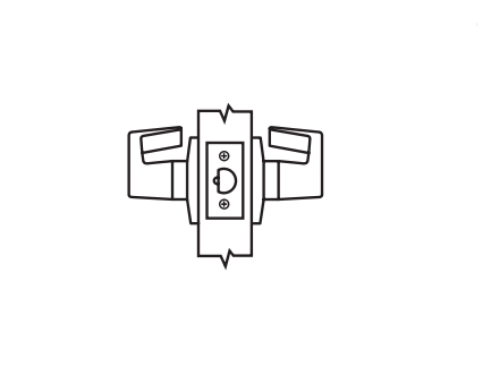

PDQ XGT124 EXIT Grade 1 Extra Heavy Duty Cylindrical LockFunction:

EXIT

• Latchbolt operated by inside lever at all times.
• Outside lever always fixed.
• Outside lever has non-removable security features.

ANSI:F89   Specifications

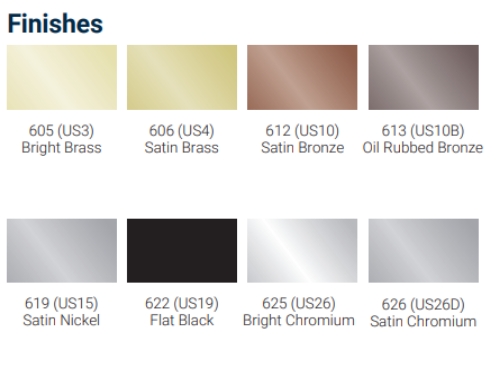

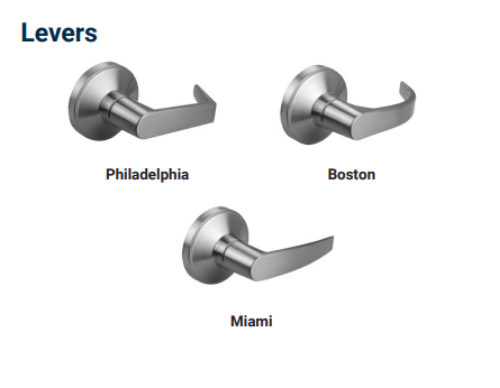

FOR DOORS:  - 1-3/4" to 2-1/4" thick.  - Preset for 1-3/4" door. APPLICATION:  - Through door thru-bolting. DOOR PREP:  - Standard ANSI A156.115 (161) for Cylindrical Locks. BACKSET:  - 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional. - Heavy duty diecast, investment cast, chromated cold rolled steel and stainless  steel mechanism. - Billet Steel spindles for locking functions FRONT:  - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2". STRIKE: -  ASA standard. - T-Strike or Full Lip Strike optional. - Stainless Steel or Wrought Brass. LEVERS:  - Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL). ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: - 9/16" Throw Deadlocking. - 3/4" Latch projection for available as option. HAND: - Non-handed. TRIM: - Solid diecast PHL, BSN or MIA Levers. - 41 Degree Lever Rotation Standard with 2-3/4" Backset. - W rought Brass Roses, Concealed Screws. - 65 Degree Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D).  - Optional Antimicrobial Coating 626 (USD26D) only. CERTIFICATIONS,*LISTINGS, COMPLIANCES:* - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Optional 3/4" (19mm) throw deadlocking fire latch (FRL) available for pairs of doors. - Certified to ANSI/BHMA A156.2, Grade 1. - Federal Specification FF-H-10C (Superseded by A156.2). - Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval:  FL 21376. - Design load rating: 70.0 PSF for single door (3' x 7"). - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:Limited Lifetime Warranty. COUNTRY OF ORIGIN:Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

PDQ XGT124, XGT124, XGT124 PDQ, PDQ GT 124, PDQ XGT124 626, 605, 606, 612, 613, 622, 625
