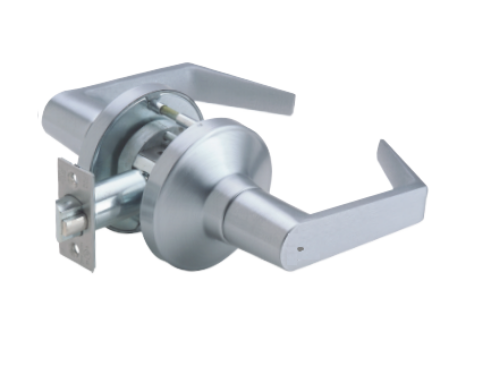

PDQ GP176 Privacy Bedroom/Bathroom, Grade 2 Heavy Duty Cylindrical Lock

PDQ GP176*Privacy Bedroom/Bathroom, Grade 2 Heavy Duty Cylindrical Lock*

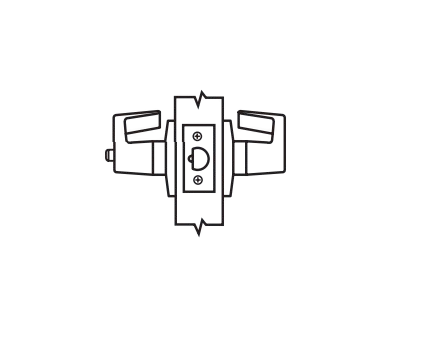

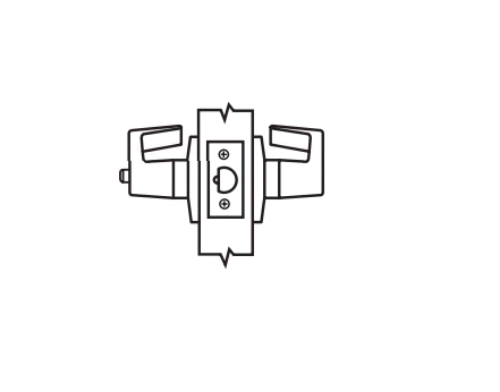

Function: - Communicating

ANSI: F76

• Latchbolt operated by lever from either side or emergency release in outside lever.
• Outside lever locked by push button on inside.
• Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door.

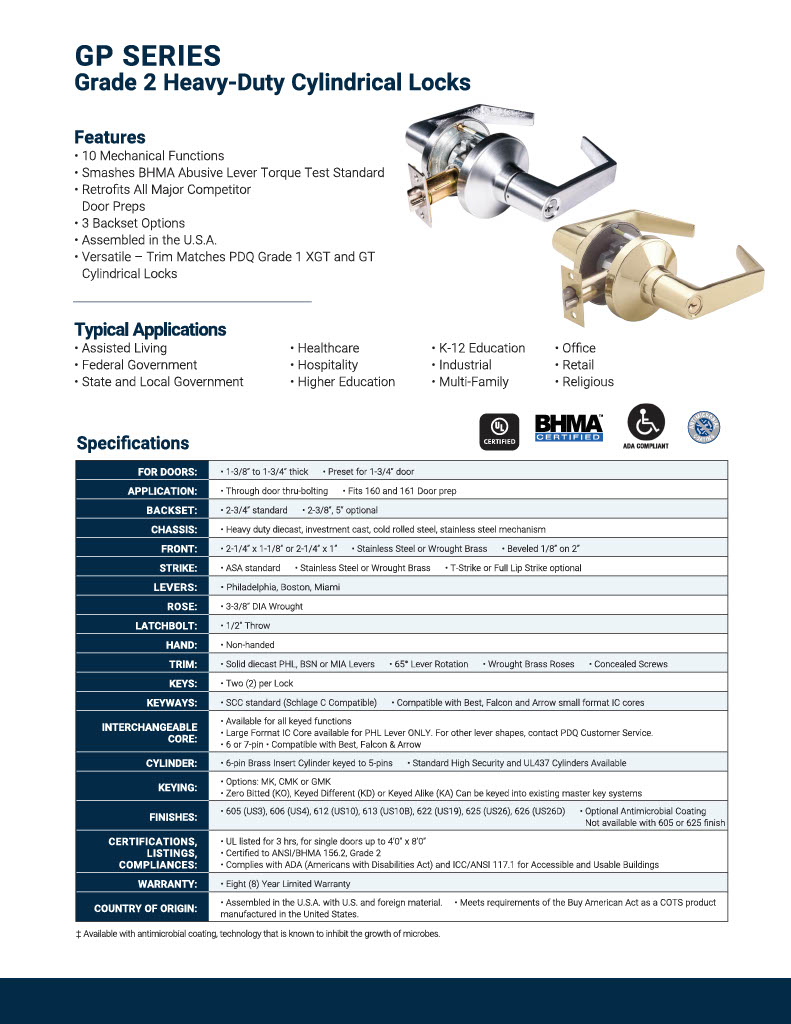

PDQ GP Series Specifications:

FEATURES: - 10 Mechanical Functions. - Smashes BHMA Abusive Lever Torque Test Standard. - Retrofits All Major Competitor Door Preps. - 3 Backset Options. - Assembled in the U.S.A. - Versatile - Trim Matches PDQ Grade 1 XGT and GT Cylindrical Locks

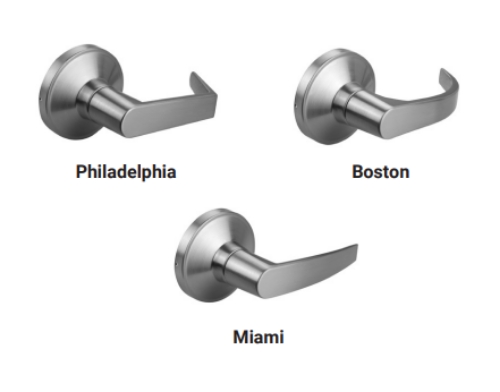

FOR DOORS: - 1-3/8" to 1-3/4" thick. - Preset for 1-3/4" door. APPLICATION: - Through door thru-bolting. - Fits 160 and 161 Door prep. BACKSET: - 2-3/4" standard. - 2-3/8", 5" optional. CHASSIS: Heavy duty diecast, investment cast, cold rolled steel, stainless steel mechanism. FRONT: 2-1/4" x 1-1/8" or 2-1/4" x 1". - Stainless Steel or Wrought Brass. - Beveled 1/8" on 2". STRIKE: - ASA standard. - Stainless Steel or Wrought Brass. - T-Strike or Full Lip Strike optional. LEVERS: - Philadelphia, Boston, Miami. ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: 1/2" Throw. HAND: - Non-handed. TRIM: - Solid diecast PHL, BSN or MIA Levers. - 65 Degree Lever Rotation. - Wrought Brass Roses. - Concealed Screws. KEYS: - Two (2) per Lock. KEYWAYS: - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers. INTERCHANGEABLE CORE: - Available for all keyed functions. - Large Format IC Core available for PHL Lever ONLY. - 6 or 7-pin. - Compatible with Best, Falcon & Arrow. CYLINDER: - 6-pin Brass Insert Cylinder keyed to 5-pins. - Standard High Security and UL437 Cylinders Available. KEYING: - Options: MK, CMK or GMK. - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems. FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D). - Optional Antimicrobial Coating (Not available with 605 or 625 finish). Options: - Tactile Abrasive Coating-Inside, Outside or Both Sides. - Split Finishes. - Lead-Lined Rose. - Dust Box. - Electric Strike (UL Listed). CERTIFICATIONS,LISTINGS, COMPLIANCES: - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Certified to ANSI/BHMA 156.2, Grade 2. - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY: - Eight (8) Year Limited Warranty. COUNTRY OF ORIGIN: - Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.
