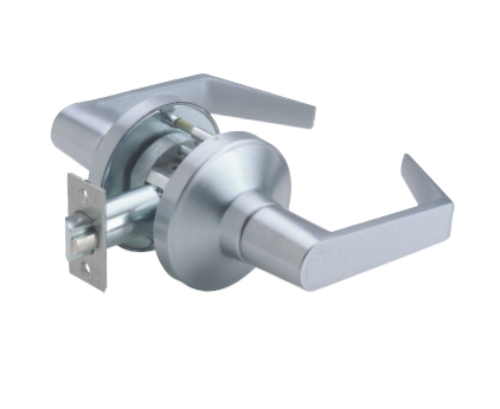

PDQ GT126 Passage/Closet Grade 1 Heavy Duty Cylindrical Lock

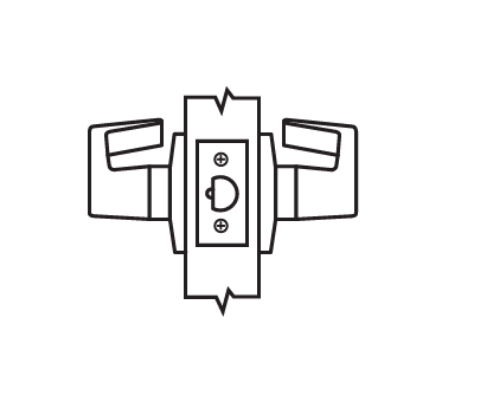

PDQ GT126 Passage/Closet Grade 1 Heavy Duty Cylindrical LockFunction: 126 - Passage/Closet

• Latchbolt operated by lever from either side at all times

ANSI:F75

Specifications

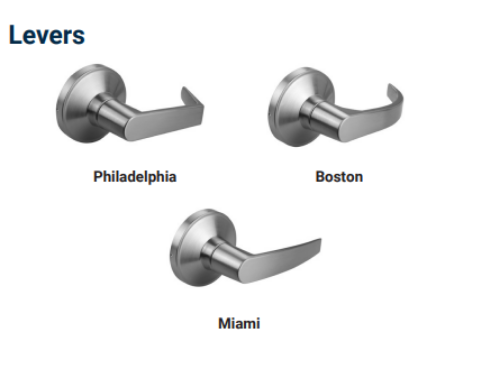

FOR DOORS:  - 1-3/4" to 2-1/4" thick.  - Preset for 1-3/4" door. APPLICATION:  - Through door thru-bolting. DOOR PREP:  - Standard ANSI A156.115 (161) for Cylindrical Locks. BACKSET:  - 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional. FRONT:  - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2". STRIKE: -  ASA standard. - T-Strike or Full Lip Strike optional. - Stainless Steel or Wrought Brass. LEVERS:  - Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL). ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: - 9/16" Throw Deadlocking. - 3/4" Latch projection for available as option. HAND: - Non-handed. TRIM: - Solid diecast PHL, BSN or MIA Levers. - 41 Degree Lever Rotation Standard with 2-3/4" Backset. - W rought Brass Roses, Concealed Screws. - 65 Degree Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only KEYS:  - Two (2) per Lock. KEYWAYS:  - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers INTERCHANGEABLE CORE: - Available for all keyed functions. - 6 or 7-pin. - Large Format IC Core available for PHL Lever ONLY. - Compatible with Best, Falcon and Arrow. CYLINDER:  - 6-pin Brass Insert Cylinder keyed to 5-pins. - Standard High Security and UL437 Cylinders Available KEYING:  - Options: MK, CMK or GMK. - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D).  - Optional Antimicrobial Coating 626 (USD26D) only. CERTIFICATIONS,*LISTINGS, COMPLIANCES:* - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Optional 3/4" (19mm) throw deadlocking fire latch (FRL) available for pairs of doors. - Certified to ANSI/BHMA A156.2, Grade 1. - California Education Code Compliant (Functions GT135, GT135LED, GT145). - Federal Specification FF-H-10C (Superseded by A156.2). - Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval:  FL 21376. - Design load rating: 70.0 PSF for single door (3' x 7"). - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:Twenty-five (25) year Limited Warranty. COUNTRY OF ORIGIN:Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.PERFORMANCE, MECHANICAL:

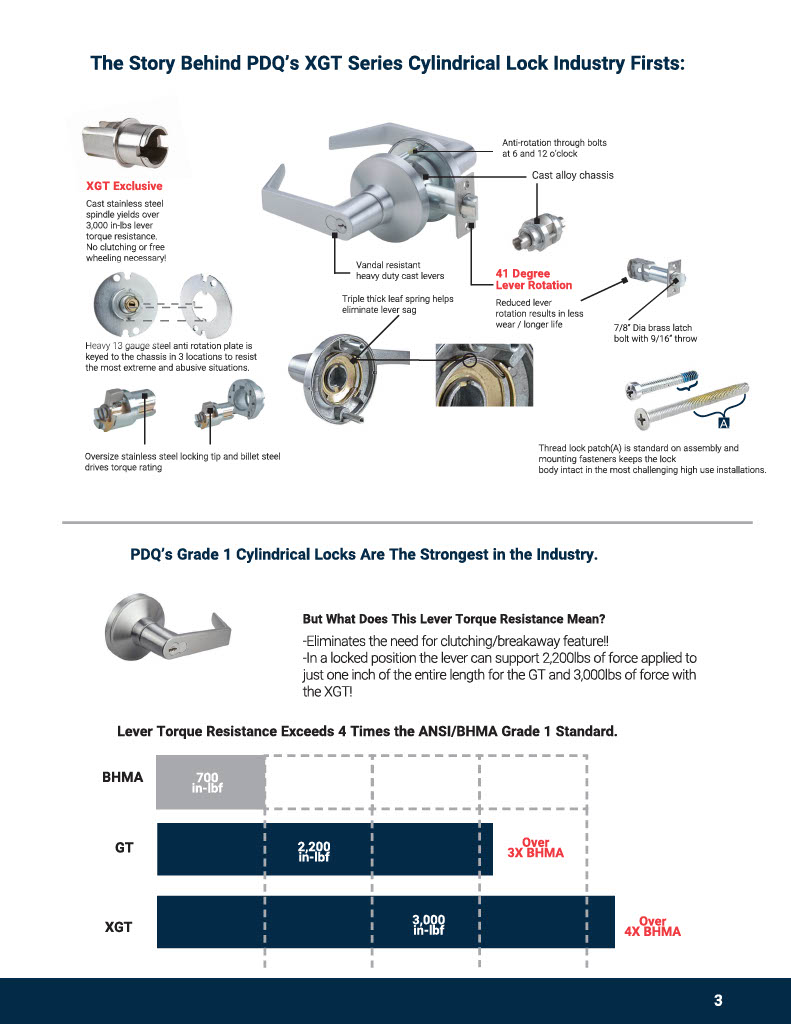

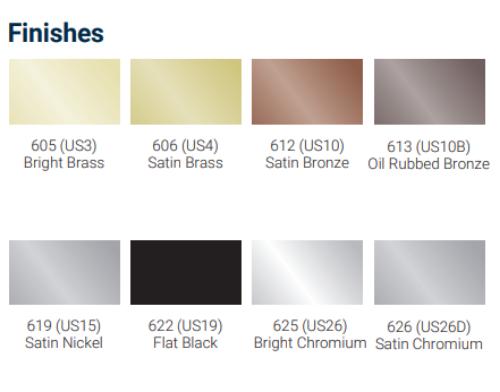

 - Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard). - Lever torque tested to over 2,100 in-lbs (3 times the ANSI/BHMA Grade 1 standard). PDQ GT126, GT126, GT126 PDQ, PDQ GT 126, PDQ GT126 626, 605, 606, 612, 613, 622, 625
