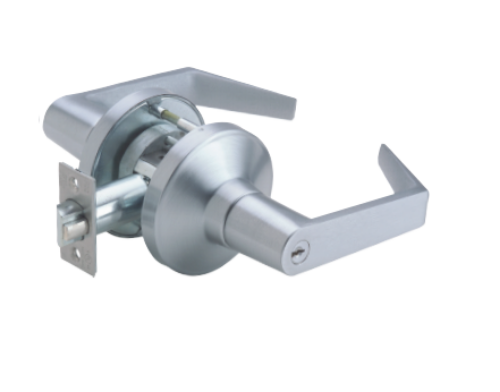

PDQ GT145 Classroom / Security w/Locking Direction Arrow Grade 1 Heavy Duty Cylindrical Lock

PDQ GT145 Classroom / Security w/Locking Direction Arrow*Grade 1  Heavy Duty Cylindrical Lock*

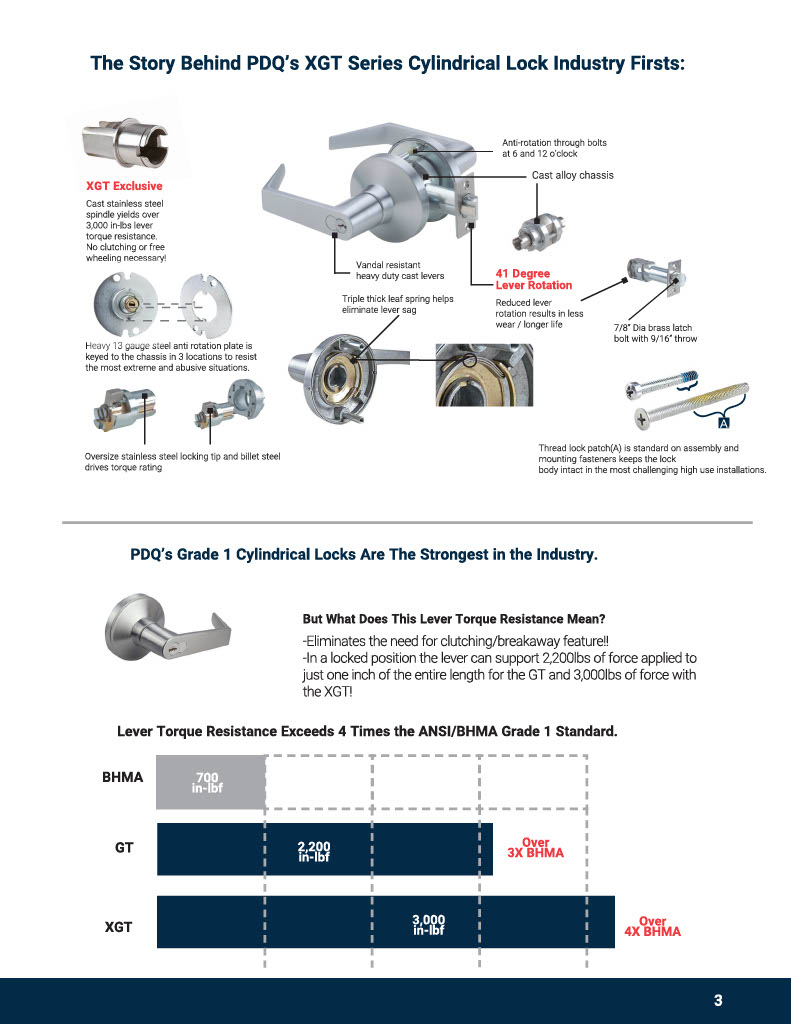

Most manufacturers approach to lock design ends with simply meeting BHMA/ANSI standards but PDQ's philosophy is to step out of the box and develop innovative designs that take locks to the next level. We don't just meet the standard, we crush it. Our design doctrine delivers the confidence that locks are built to last, whether the application calls for resistance to high abuse or to millions of cycles of operation without any degradation in performance.

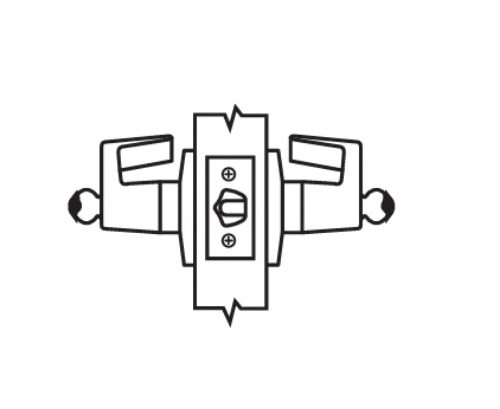

Function:Classroom / Security w/Locking Direction Arrow

• Latchbolt operated by lever from either side.
• Key in either lever locks outside lever.
• Key in either lever unlocks outside lever.
• Inside lever always free.
• Lock Directional Arrow.

ANSI:F110

PDQ GT Series Specifications

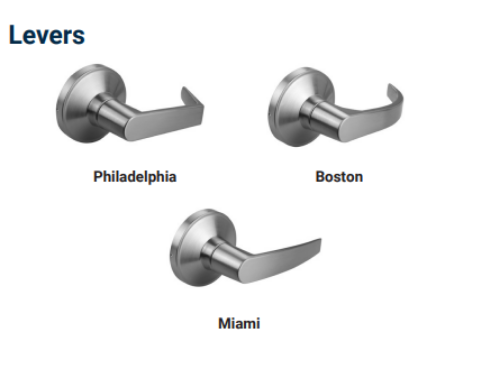

FOR DOORS:  - 1-3/4" to 2-1/4" thick.  - Preset for 1-3/4" door. APPLICATION:  - Through door thru-bolting. DOOR PREP:  - Standard ANSI A156.115 (161) for Cylindrical Locks. BACKSET:  - 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional. FRONT:  - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2". STRIKE: -  ASA standard. - T-Strike or Full Lip Strike optional. - Stainless Steel or Wrought Brass. LEVERS:  - Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL). ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: - 9/16" Throw Deadlocking. - 3/4" Latch projection for available as option. HAND: - Non-handed. TRIM: - Solid diecast PHL, BSN or MIA Levers. - 41 Degree Lever Rotation Standard with 2-3/4" Backset. - W rought Brass Roses, Concealed Screws. - 65 Degree Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only KEYS:  - Two (2) per Lock. KEYWAYS:  - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers INTERCHANGEABLE CORE: - Available for all keyed functions. - 6 or 7-pin. - Large Format IC Core available for PHL Lever ONLY. - Compatible with Best, Falcon and Arrow. CYLINDER:  - 6-pin Brass Insert Cylinder keyed to 5-pins. - Standard High Security and UL437 Cylinders Available KEYING:  - Options: MK, CMK or GMK. - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D).  - Optional Antimicrobial Coating 626 (USD26D) only. CERTIFICATIONS,*LISTINGS, COMPLIANCES:* - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Optional 3/4" (19mm) throw deadlocking fire latch (FRL) available for pairs of doors. - Certified to ANSI/BHMA A156.2, Grade 1. - California Education Code Compliant (Functions GT135, GT135LED, GT145). - Federal Specification FF-H-10C (Superseded by A156.2). - Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval:  FL 21376. - Design load rating: 70.0 PSF for single door (3' x 7"). - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:Twenty-five (25) year Limited Warranty. COUNTRY OF ORIGIN:Proudly Assembled in the U.S.A. with U.S. and foreign material. Meetsrequirements of the Buy American Act. PERFORMANCE, MECHANICAL: - Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard). - Lever torque tested to over 2,100 in-lbs (3 times the ANSI/BHMA Grade 1 standard).

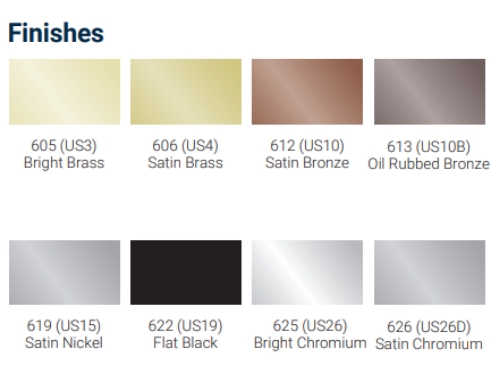

PDQ GT145, GT145, GT145 PDQ, PDQ GT 145, PDQ GT145 626, 605, 606, 612, 613, 622, 625
