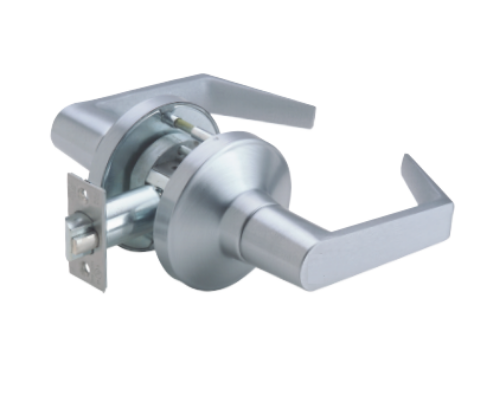

PDQ GT175 Hospital Privacy Grade 1 Heavy Duty Cylindrical Lock

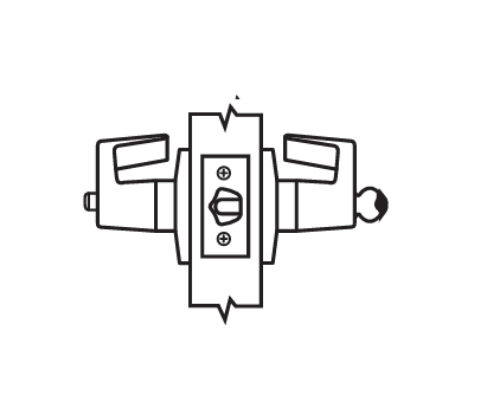

PDQ GT175 Hospital Privacy Grade 1 Heavy Duty Cylindrical LockFunction:

Hospital Privacy

• Latchbolt operated by lever from either side or emergency turn piece in outside lever.
• Outside lever locked by push button on inside.
• Outside lever unlocked by emergency turn piece from outside, rotating inside lever, or closing door.

PDQ GT Series*Specifications:*

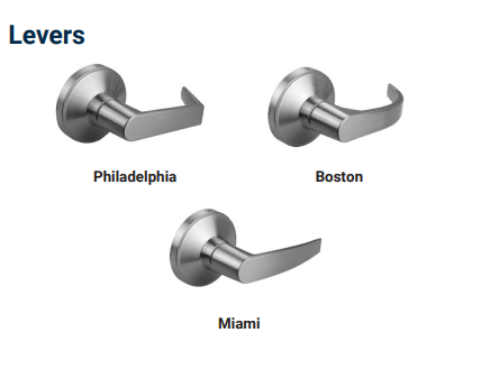

FOR DOORS:  - 1-3/4" to 2-1/4" thick.  - Preset for 1-3/4" door. APPLICATION:  - Through door thru-bolting. DOOR PREP:  - Standard ANSI A156.115 (161) for Cylindrical Locks. BACKSET:  - 2-3/4" Standard. 2-3/8", 3-3/4" and 5" Optional. FRONT:  - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2". STRIKE: -  ASA standard. - T-Strike or Full Lip Strike optional. - Stainless Steel or Wrought Brass. LEVERS:  - Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL). ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: - 9/16" Throw Deadlocking. - 3/4" Latch projection for available as option. HAND: - Non-handed. TRIM: - Solid diecast PHL, BSN or MIA Levers. - 41 Degree Lever Rotation Standard with 2-3/4" Backset. - W rought Brass Roses, Concealed Screws. - 65 Degree Lever Rotation Standard with 3/4" latch for double doors (Ordered from factory only) and all 2-3/8", 3-3/4" and 5" Backsets (Ordered from factory only KEYS:  - Two (2) per Lock. KEYWAYS:  - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers INTERCHANGEABLE CORE: - Available for all keyed functions. - 6 or 7-pin. - Large Format IC Core available for PHL Lever ONLY. - Compatible with Best, Falcon and Arrow. CYLINDER:  - 6-pin Brass Insert Cylinder keyed to 5-pins. - Standard High Security and UL437 Cylinders Available KEYING:  - Options: MK, CMK or GMK. - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D).  - Optional Antimicrobial Coating 626 (USD26D) only. CERTIFICATIONS,*LISTINGS, COMPLIANCES:* - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Optional 3/4" (19mm) throw deadlocking fire latch (FRL) available for pairs of doors. - Certified to ANSI/BHMA A156.2, Grade 1. - California Education Code Compliant (Functions XGT135, GT135LED, GT145). - Federal Specification FF-H-10C (Superseded by A156.2). - Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval:  FL 21376. - Design load rating: 70.0 PSF for single door (3' x 7"). - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:Limited 5 years Warranty. COUNTRY OF ORIGIN:Proudly Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

PDQ GT175, GT175, GT175 PDQ, PDQ GT 175, PDQ GT175 626, 605, 606, 612, 613, 622, 625
