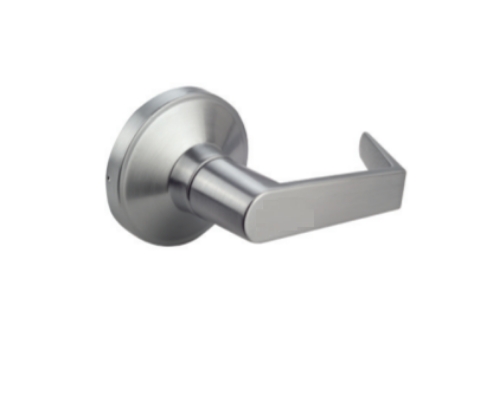

PDQ GT205 Double Dummy Heavy Duty Lever

PDQ GT205 Double Dummy*Heavy Duty Lever*

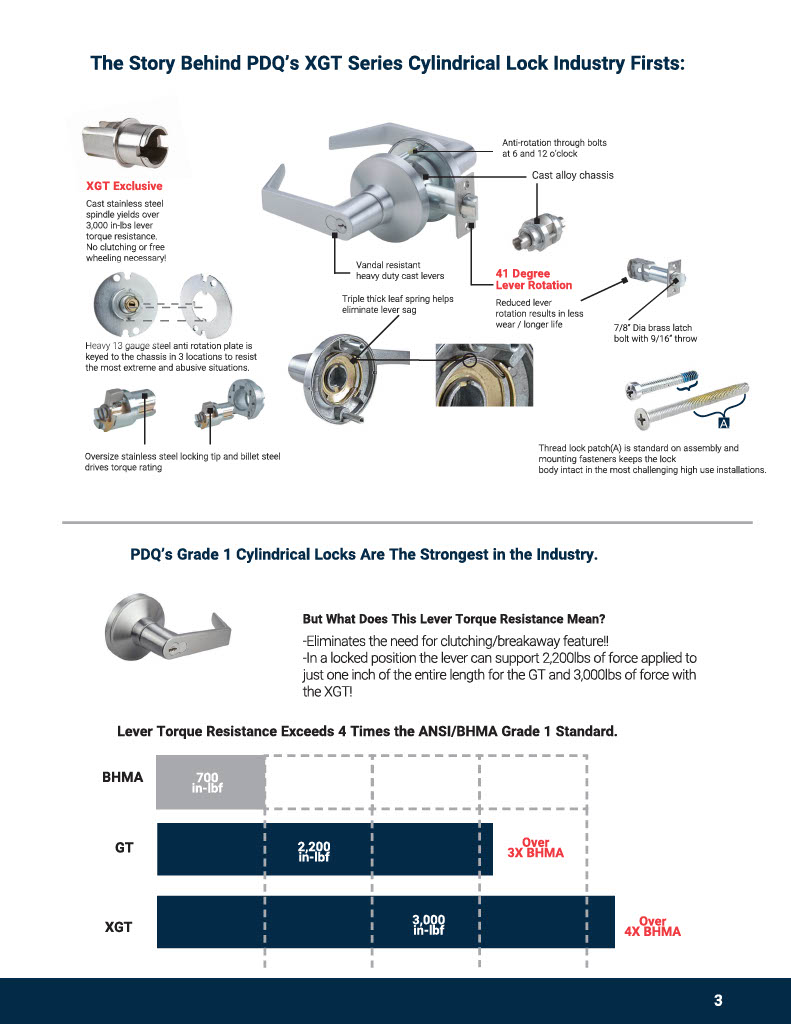

Most manufacturers approach to lock design ends with simply meeting BHMA/ANSI standards but PDQ's philosophy is to step out of the box and develop innovative designs that take locks to the next level. We don't just meet the standard, we crush it. Our design doctrine delivers the confidence that locks are built to last, whether the application calls for resistance to high abuse or to millions of cycles of operation without any degradation in performance.

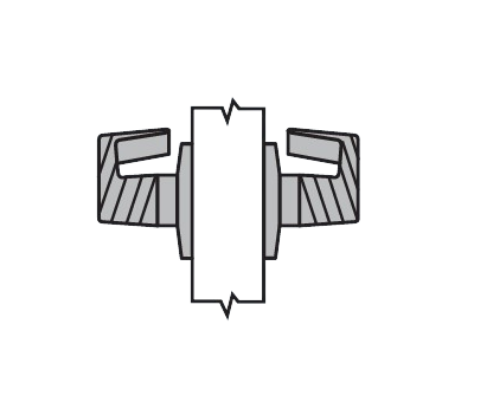

Function:Double Dummy

• Pull Rigid lever both sides.
• No mechanical operation.

PDQ GT Series Specifications

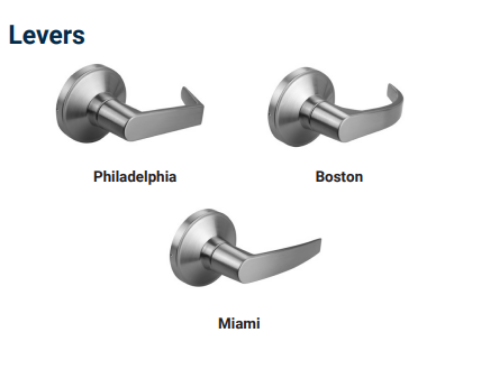

FOR DOORS:  - 1-3/4" to 2-1/4" thick.  - Preset for 1-3/4" door. APPLICATION:  - Through door thru-bolting. DOOR PREP:  - Standard ANSI A156.115 (161) for Cylindrical Locks.  FRONT:  - 2-1/4" x 1-1/8" - Stainless Steel or Wrought Brass - Beveled 1/8" in 2". LEVERS:  - Philadelphia (SFL and LFL), Boston (SFL), Miami (SFL). ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: - 9/16" Throw Deadlocking. - 3/4" Latch projection for available as option. HAND: - Non-handed. FINISHES: - 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D).  - Optional Antimicrobial Coating 626 (USD26D) only. CERTIFICATIONS,*LISTINGS, COMPLIANCES:* - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Optional 3/4" (19mm) throw deadlocking fire latch (FRL) available for pairs of doors. - Certified to ANSI/BHMA A156.2, Grade 1. - Federal Specification FF-H-10C (Superseded by A156.2). - Approved for Florida HVHZ (High Velocity Hurricane Zone). PDQ Product Approval:  FL 21376. - Design load rating: 70.0 PSF for single door (3' x 7"). - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:Limited 5 years Warranty. COUNTRY OF ORIGIN:Proudly Assembled in the U.S.A. with U.S. and foreign material. Meetsrequirements of the Buy American Act. PERFORMANCE, MECHANICAL: - Factory tested to over 3 million cycles (3 times the ANSI/BHMA Grade 1 standard). - Lever torque tested to over 2,100 in-lbs (3 times the ANSI/BHMA Grade 1 standard).

PDQ GT205, XGT205, GT205 PDQ, PDQ GT 205, PDQ GT205 626, 605, 606, 612, 613, 622, 625
