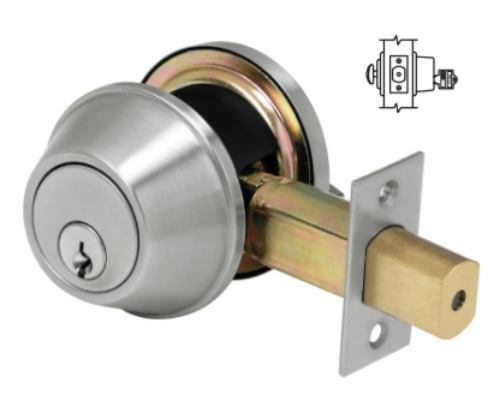

PDQ KM116 Single Cylinder, Commercial Grade Heavy Duty Rim Cylinder Deadbolt

PDQ KM116*Single Cylinder,*Commercial Grade Heavy Duty Deadbolt

Function:Single Cylinder

-  Lock or unlock by key from outside, by thumb turn from inside.

ANSI:E1151

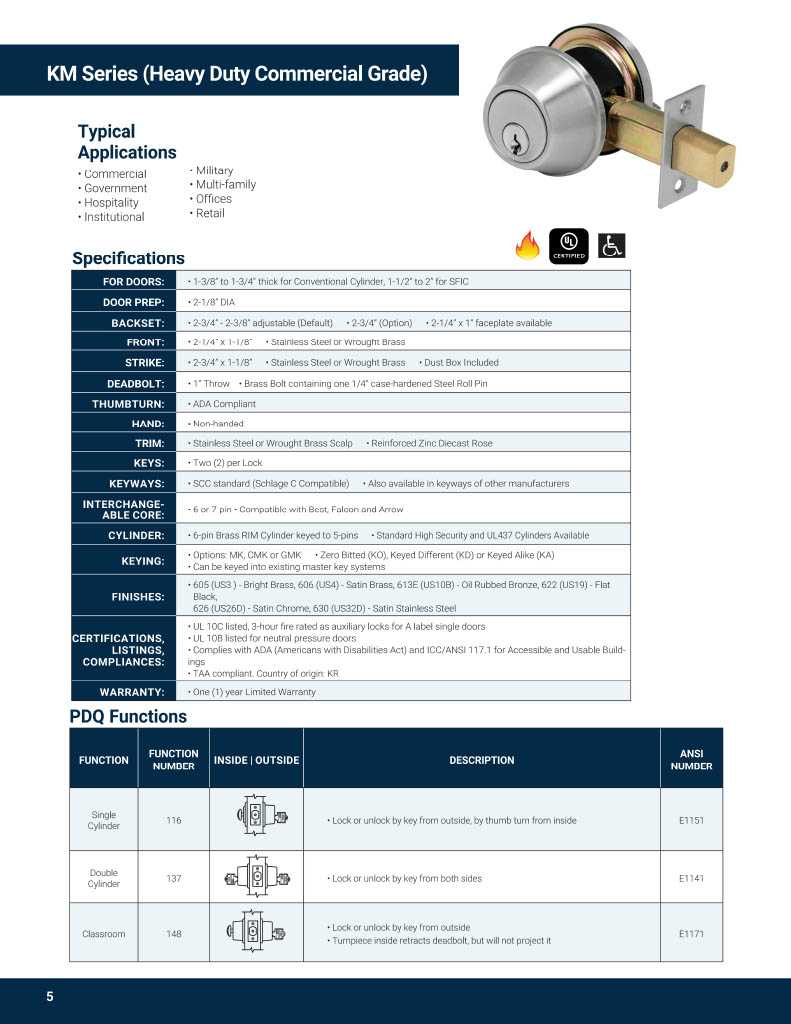

PDQ KM Series Specifications

Deadbolt is Grade Comparable with GP and SD Series Grade 2 Cylindrical Locks

FOR DOORS:  - 1-3/8" to 1-3/4" thick for conventional cylinders. - 1-1/2" to 2" thick for SFIC. DOOR PREP:  - 2-1/8" DIA. BACKSET:  - 2-3/4" (Default - UL Listed). - Option 2-3/4" - 2-3/8" adjustable with 2-1/4" x 1" faceplate available (Not UL Listed). FRONT:  - 2-1/4" x 1-1/8". - Stainless Steel or Wrought Brass. STRIKE:  - 2-3/4" x 1-1/8". - Stainless Steel or Wrought Brass. DEADBOLT:  - 1" Throw - Brass Bolt containing one 1/4 case-hardened Steel Roll Pin. THUMBTURN:  - ADA Compliant. HAND:  - Non-handed. TRIM:  - Stainless Steel or Wrought Brass Scalp. - Reinforced Zinc Diecast Rose. KEYS:  - Two (2) per Lock. KEYWAYS:  - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers. INTERCHANGEABLE CORE:  - 6 or 7-pin. - Compatible with Best, Falcon and Arrow. CYLINDER:  - 6-pin Brass RIM Cylinder keyed to 5-pins. KEYING:  - Options: MK, CMK or GMK. - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA). - Can be keyed into existing master key systems. FINISHES:  - 605 (US3 ) Bright Brass, 606 (US4) Satin Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome, 630 (US32D) Satin Stainless Steel. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - ANSI/UL 10C Listed, Positive Pressure Fire Tests of Door Assemblies for up to and including 3 hrs. - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY:  - One (1) year Limited Warranty.
