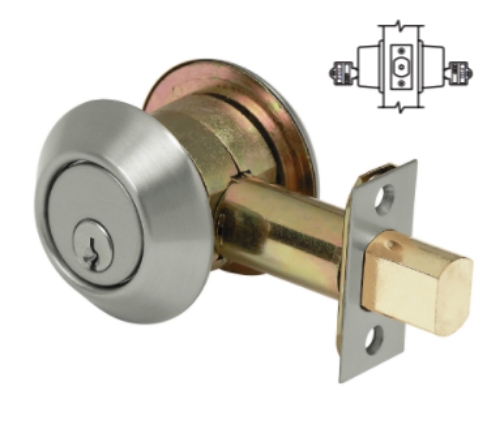

PDQ KT137 Double Cylinder, Extra Heavy Duty Mortise Cylinder Deadbolt

PDQ KT137 Double Cylinder,  Extra Heavy Duty Mortise  Cylinder Deadbolt

Function:Double Cylinder

-  Lock or unlock by key from both sides.

ANSI:E1141

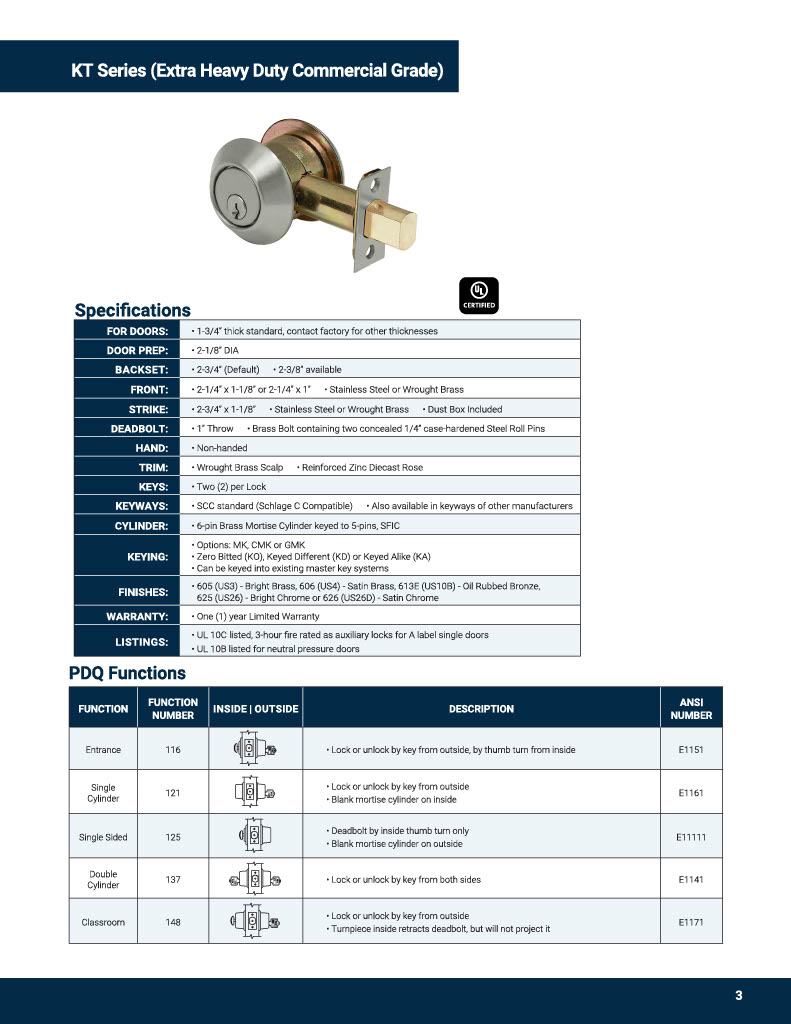

PDQ KT Series Specifications

Deadbolt is Grade Comparable with XGT and GT Series Grade 1 Cylindrical Locks.

FOR DOORS:  - 1-3/8" to 1-3/4" thick DOOR PREP:  - 2-1/8" DIA BACKSET:  - 2-3/4" ((Default)) - 2-3/8" available FRONT:  - 2-1/4" x 1-1/8" or 2-1/4" x 1" - Stainless Steel or Wrought Brass STRIKE:  - 2-3/4" x 1-1/8" - Stainless Steel or Wrought Brass ROSE:  - 1" Throw - Brass Bolt containing two concealed 1/4" case-hardened Steel Roll Pins DEADBOLT:  - 1" Throw - Brass Bolt containing two concealed 1/4" case-hardened Steel Roll Pins HAND:  - Non-handed TRIM:  - Wrought Brass Scalp - Reinforced Zinc Diecast Rose KEYS:  - Two (2) per Lock KEYWAYS:  - SCC standard (Schlage C Compatible) - Also available in keyways of other manufacturers CYLINDER:  - 6-pin Brass Mortise Cylinder keyed to 5-pins KEYING:  - Options: MK, CMK or GMK - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) - Can be keyed into existing master key systems FINISHES:  - 605 (US3) Bright Brass, 606 (US4) Satin Brass, 613 (US10B) Oil Rubbed Bronze, 625 (US26) Bright Chrome, 626 (US26D) Satin Chrome WARRANTY:  - One (1) year Limited Warranty COUNTRY OF ORIGIN:  - Assembled in the U.S.A. with U.S. and foreign material. - Meets requirements of the Buy American Act.

KT137 PDQ, PDQ KT137, PDQKT, KT137, PDQ KT 137, KT PDQ, PDQ KT137 626,605,606,613,630
