Product Details

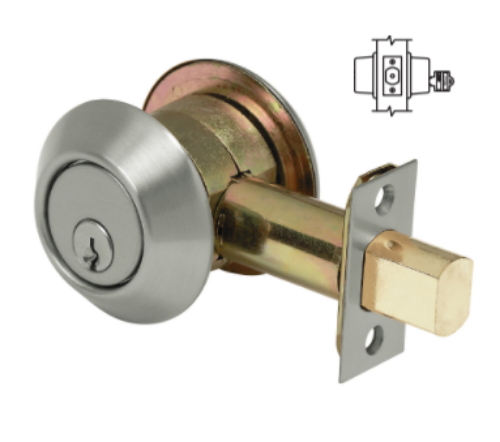

PDQ KT125 Single Sided, Extra Heavy Duty Mortise Cylinder Deadbolt
Function:Single Sided
- Deadbolt by inside thumb turn only.
- Blank mortise cylinder on outside.
ANSI:E1111

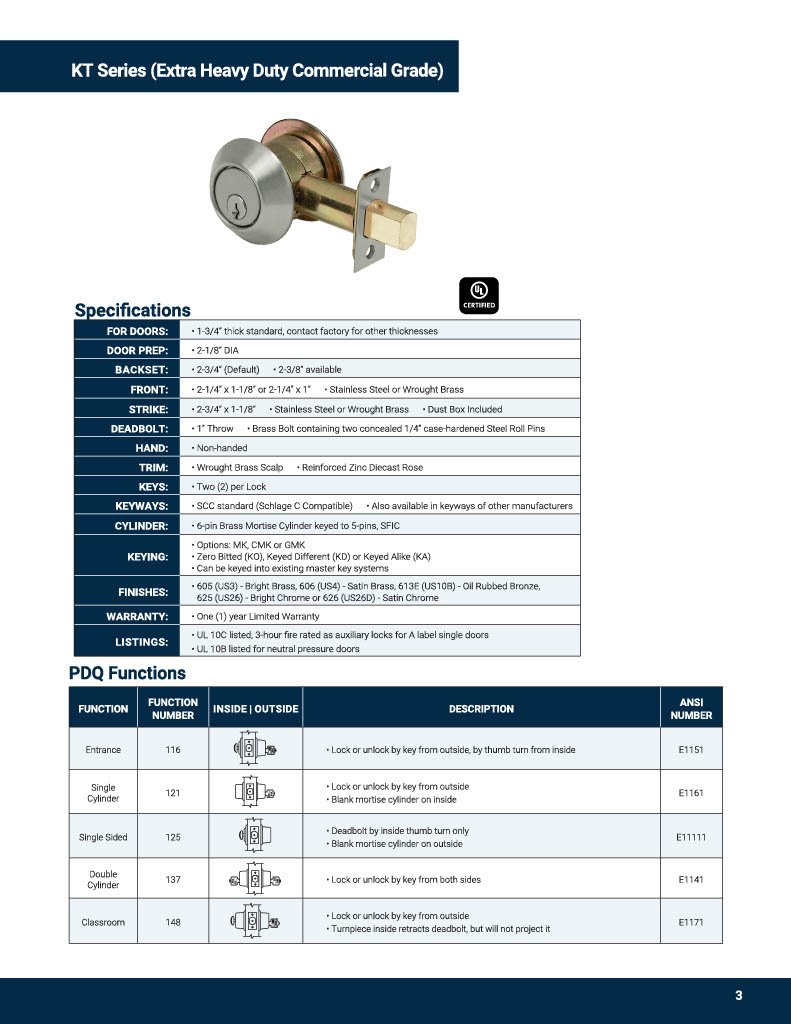

PDQ KT Series Specifications
Deadbolt is Grade Comparable with XGT and GT Series Grade 1 Cylindrical Locks.
FOR DOORS:
- 1-3/8" to 1-3/4" thick
DOOR PREP:
- 2-1/8" DIA
BACKSET:
- 2-3/4" ((Default))
- 2-3/8" available
FRONT:
- 2-1/4" x 1-1/8" or 2-1/4" x 1"
- Stainless Steel or Wrought Brass
STRIKE:
- 2-3/4" x 1-1/8"
- Stainless Steel or Wrought Brass
ROSE:
- 1" Throw
- Brass Bolt containing two concealed 1/4" case-hardened Steel Roll Pins
DEADBOLT:
- 1" Throw
- Brass Bolt containing two concealed 1/4" case-hardened Steel Roll Pins
HAND:
- Non-handed
TRIM:
- Wrought Brass Scalp
- Reinforced Zinc Diecast Rose
FINISHES:
- 605 (US3) Bright Brass, 606 (US4) Satin Brass, 613 (US10B) Oil Rubbed Bronze, 625 (US26) Bright Chrome, 626 (US26D) Satin Chrome
WARRANTY:
- One (1) year Limited Warranty
COUNTRY OF ORIGIN:
- Assembled in the U.S.A. with U.S. and foreign material.
- Meets requirements of the Buy American Act.
