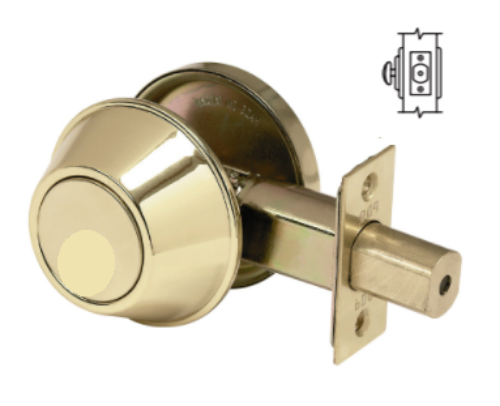

PDQ KV125BK Single Sided, Commercial Duty Rim Cylinder Deadbolt

PDQ KV125BK Single Sided,  Commercial Duty Rim Cylinder Deadbolt * *Function:Single Sided

-  Deadbolt by inside thumb turn onlyץ - 2-1/8" bore hole, one side.

ANSI:E21112

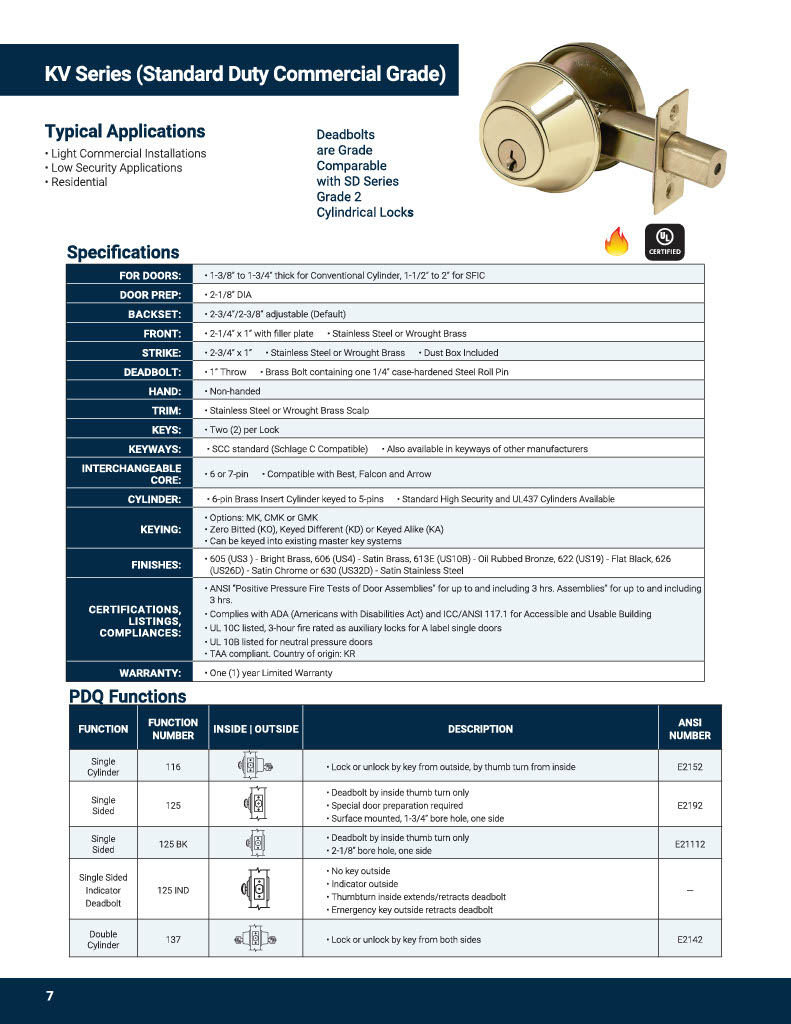

PDQ KV Series Specifications

Deadbolts are Grade Comparable with SD Series Grade 2 Cylindrical Locks

FOR DOORS:  - 1-3/8" to 1-3/4" thick for conventional cylinder. 1-1/2" - 2" thick for SFIC. DOOR PREP:  - 2-1/8" DIA. BACKSET:  - 2-3/4" (Factory Default) adjustable to 2-3/8. FRONT:  - 2-1/4" x 1". - Stainless Steel or Wrought Brass. STRIKE:  - 2-3/4" x 1-1/8". - Stainless Steel or Wrought Brass. DEADBOLT:  - 1" Throw. - Brass Bolt containing one 1/4" case-hardened Steel Roll Pin. HAND:  - Non-handed. TRIM:  - Stainless Steel or Wrought Brass Scalp. KEYS:  - Two (2) per Lock. KEYWAYS:  - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers. INTERCHANGEABLE CORE:  - 6 or 7-pin. - Compatible with Best, Falcon and Arrow. CYLINDER:  - 6-pin Brass Insert Cylinder keyed to 5-pins. KEYING:  - Options: MK, CMK or GMK. - Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA). - Can be keyed into existing master key systems. FINISHES:  - 605 (US3 ) Bright Brass, 606 (US4) Satin Brass, 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome, 630 (US32D) Satin Stainless Steel. WARRANTY:  - One (1) year Limited Warranty

KV125BK PDQ, PDQ KV125BK, PDQKV, KV125BK, PDQ KV 125BK, KV PDQ, PDQ KV125 BK 626,605,606,613,630
