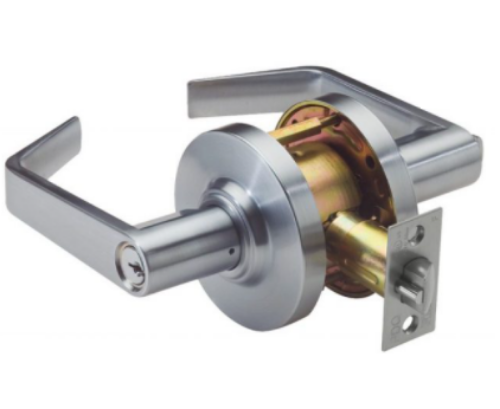

PDQ SD182 Entry, Grade 2 Standard Duty Cylindrical Lock

PDQ SD182 Entry, Grade 2 Standard Duty Cylindrical Lock

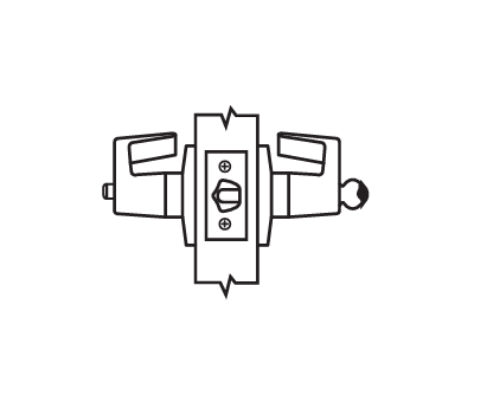

Function: - Entry

• Latchbolt operated by lever from either side or key in outside lever.
• Outside lever locked by push button on inside.
• Outside lever unlocked by key from outside, and rotating inside lever.

ANSI:F82 PDQ SD Series Specifications:

FEATURES: - 8 Functions, more than most other Grade 2 locks. - Removable through bolts make for easy installation. - Designer lever and finish styles plus a 5-Year Warranty.

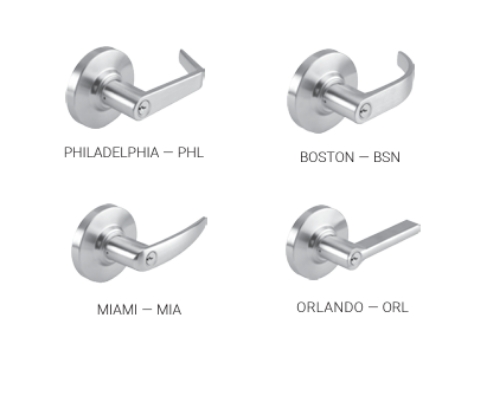

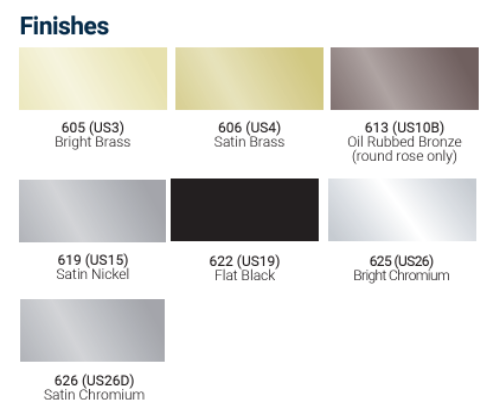

FOR DOORS: - 1-3/8" to 1-3/4" thick. - Preset for 1-3/4" door. APPLICATION: - Through door thru-bolting. - Fits 160 and 161 Door prep. BACKSET: - 2-3/4" standard. - 2-3/8" optional. CHASSIS: - Heavy-gauge cold rolled steel mechanism. - Dichromated for corrosion resistance. FRONT: 2-1/4" x 1-1/8" or 2-1/4" x 1". - Stainless Steel or Wrought Brass. - Beveled 1/8" on 2". STRIKE: - ASA standard. - Stainless Steel or Wrought Brass. - T-Strike or Full Lip Strike optional. LEVERS: - Philadelphia, Boston, Miami, Memphis, Orlando ROSE: - 3-3/8" DIA Wrought. LATCHBOLT: 1/2" Throw. HAND: - Non-handed. TRIM: - Solid diecast PHL, BSN, MIA, MEM and ORL Levers. - Wrought Brass Roses. - Concealed Screws. KEYS: - Two (2) per Lock. KEYWAYS: - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers. INTERCHANGEABLE CORE: - 6 or 7-pin. - Compatible with Best, Falcon & Arrow. Not available with Memphis lever. CYLINDER: - 6-pin Brass Insert Cylinder keyed to 5-pins. - Standard High Security and UL437 Cylinders Available. KEYING: - Options: MK, CMK or GMK / Zero Bitted (KO), Keyed. - Can be keyed into existing master key systems. FINISHES: -605 (US3), 613 (US10B), 622 (19D), 626 (US26D). CERTIFICATIONS,LISTINGS, COMPLIANCES: - UL listed for 3 hrs, for single doors up to 4'0" x 8'0". - Certified to ANSI/BHMA 156.2, Grade 2. - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. WARRANTY: - Eight (8) Year Limited Warranty. COUNTRY OF ORIGIN: - Assembled in the U.S.A. with U.S. and foreign material. - Meets requirements of the Buy American Act.

PDQ SD182, GP182 PDQ, PDQSD182, SD182PDQ, PDQ SD 182, SD 182 PDQ
