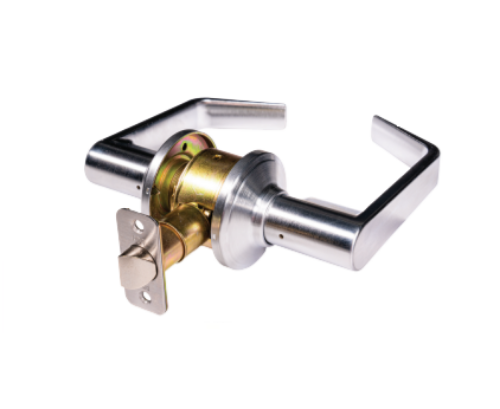

PDQ SF116 Entrance, Grade 2 Standard Duty Cylindrical Lock

PDQ SF116 Entrance, Grade 2 Standard Duty Cylindrical Lock

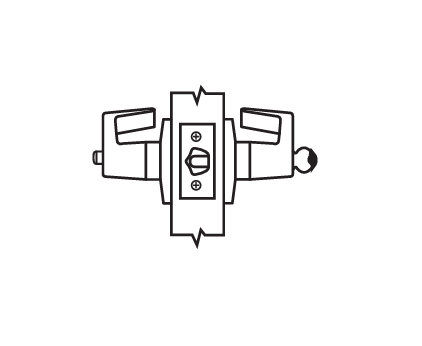

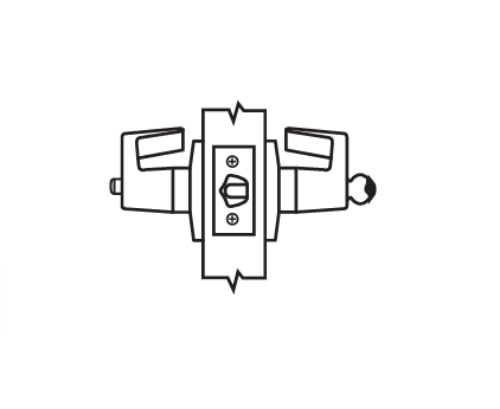

Function:Storeroom ANSI: 109

-Latchbolt operated by lever from either side or key in outside lever. - Outside lever locked by push/turn button on inside. - When outside lever is locked by push button on inside - key from outside, or rotating inside lever unlocks outside lever. - When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever. - Deadlocking (guarded) latchbolt. - Fixed backset, fire rated, BHMA latch included.

PDQ SF Series Specifications

Reliable Security for Multi-Family, Multi-Tenant and Light Commercial Applications.

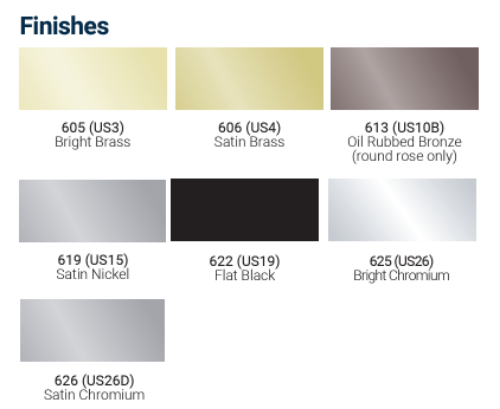

- 4 functions - Privacy, Passage, Entrance plus Single Dummy. - Heavier duty cylindrical lock is more durable than a tubular lock. - 5 designer levers to choose from. - 7 architectural finishes. - Stylish 2-9/16" round rose and 2-15/16" square rose. - Retrofits all major manufacturer's door preps. - Optional fixed backset latch adds fire label and BHMA certification. - Anti-lockout kick-off feature (Privacy). - Shares common levers with SD Cylindrical and CL Interconnected locks. Mix and match for a uniform look.

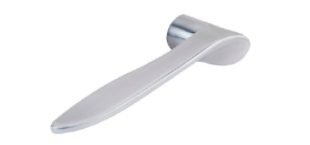

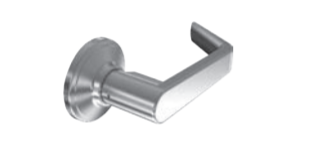

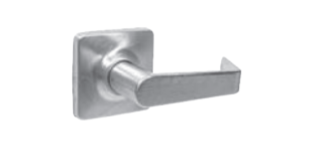

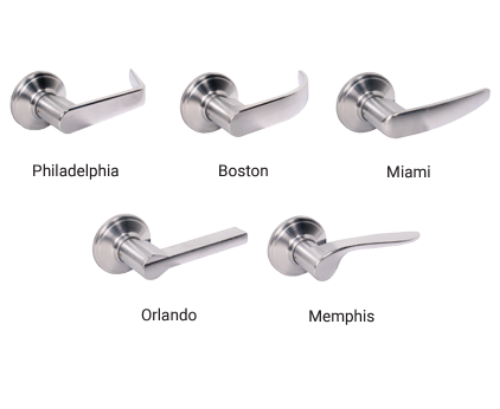

FOR DOORS: - 1-3/8" to 1-3/4" thick. - Preset for 1-3/4" door. APPLICATION: - Fits standard 160 and 161 door prep. - No additional thru-bolt. BACKSET: - Adjustable - 2-3/8" - 2-3/4" (Optional UL Listed fire latch has fixed backsets, 2-3/8" or 2-3/4"). CHASSIS: - Heavy-gauge cold rolled steel mechanism. - Dichromated for corrosion resistance. FRONT: - 1" face width, 1/4" radius with square corner filler for 1-1/8" width. S TRIKE:  - Full Lip Strike standard, ASA and T-Strike optional. LEVERS:  -  Philadelphia, Boston, Miami, Memphis and Orlando. ROSE: - 2-9/16" Diameter Round Rose, 2-15/16" Square Rose. LATCHBOLT: - Adjustable - 2-3/8" - 2-3/4" latch standard, Optional UL fire-rated 2-3/4" or 2-3/8" fixed latchbolts are available. HAND: - Non-handed, for Memphis, swap levers to rehand. TRIM: -  Solid diecast PHL, BSN, MIA, MEM and ORL levers. -  Wrought brass roses. - Concealed screws. KEYS: - Two (2) per Lock. KEYWAYS: - SCC standard (Schlage C Compatible). - Also available in keyways of other manufacturers. INTERCHANGEABLE CORE: - 6 or 7-pin - Compatible with Best, Falcon & Arrow. Not available with Memphis lever. CYLINDER: - 6-pin Brass Insert Cylinder keyed to 5-pins. - Standard High Security and UL437 Cylinders Available. KEYING: - Options: MK, CMK or GMK / Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA). - Can be keyed into existing master key systems. FINISHES: - 605 (Bright Brass), 606 (US4) Satin Brass, 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 622 (Flat Black), 625 (Bright Chromium), 626 (Satin Chrome). COMPLIANCES: - Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings. -  Meets requirements of the Buy American Act. CERTIFICATIONS, LISTINGS: - Entry function and optional fixed backset latch only. - Certified to ANSI/BHMA 156.2, Grade 2 (fixed backset latch only). - UL listed for single doors up to 4'0" x 8'0" when ordered with UL latchbolt, contact factory for details. WARRANTY: - Three (3) year Limited Warranty.

PDQ SF116, SF116 PDQ, SF 116 PDQ, PDQ SF 116, SF116 626, 605, 606, 613,, 619, 622, 625
