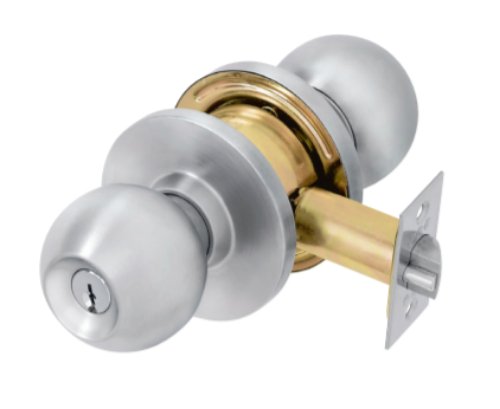

PDQ SV148 Classroom/Storage Grade 2 Standard Duty Ball Knob Cylindrical Lock

PDQ SV148 Classroom/Storage Grade 2 Standard Duty Ball Knob Cylindrical Lock

• Latchbolt operated from outside by knob except when locked from outside by key.
• Latchbolt operated from inside by knob at all times.

Function:Classroom/Storage

ANSI:F84

Features: - UL listed for 3-hour fire door. - Exceeds ANSI/BHMA A156.2 Grade 2. - 10 standard functions. - Various strike and latch options to accommodate any opening. - Available in keyways of most major manufacturers. - Tactile abrasive coating option. - Antimicrobial coating option. - One (1) year limited warranty

Product Specifications

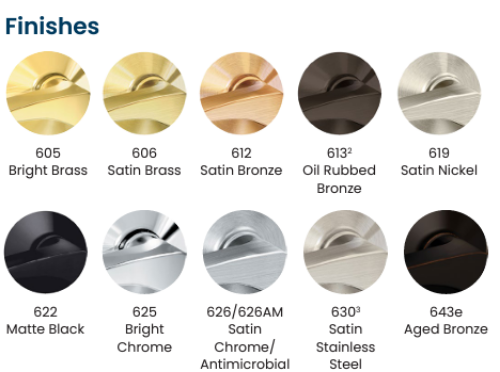

FOR DOORS:  1-3/8" to 1-3/4" thick. BACKSET:  2-3/8", 2-3/4", 5". CASE:  Steel, Yellow Chromate Plate. FRONT:  2-1/4" x 1-1/8" or 2-1/4" x 1"  - Stainless Steel or Wrought Bronze. STRIKE:  4-7/8" x 1-1/4" (ASA). T or FL Strike Optional.  - Stainless Steel or Wrought Bronze. UL F LATCHBOLT: 3 hours of fire testing qualified, stainless steel latch bolt. ROSE:  3" DIA. LATCHBOLT:  1/2" throw. Solid brass. Adjustable for beveled doors. HAND:  Non-handed. KEYS:  Two change keys per lock. KEYWAYS:  Available in keyways of most major manufacturers. CYLINDER:  Brass 6-pin cylinder keyed to 5 pins. - Standard High Security and UL437 Cylinders Available. TRIM:  Stainless Steel or Wrought Brass Knobs and Roses. KEYING: Can be MK, CMK, GMK, or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey systems of other manufacturers. FINISHES:  605 (US3), 613 (US10B), 630 (US32D). - Optional Antimicrobial Coating available. WARRANTY:  One (1) Year Limited Warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES: Certified to ANSI/BHMA A156.2, Grade 2. - UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0". - Meets requirements of the Buy American Act.

PDQSV148, PDQ SV148, SV148 PDQ, SV148PDQ, 630, US32D, PDQ SV148 630, US32D
