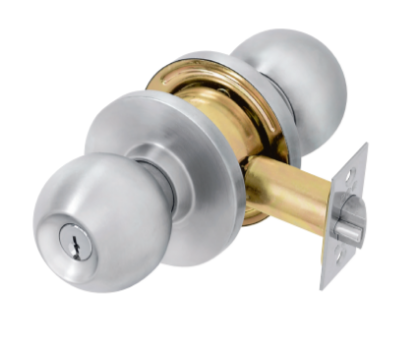

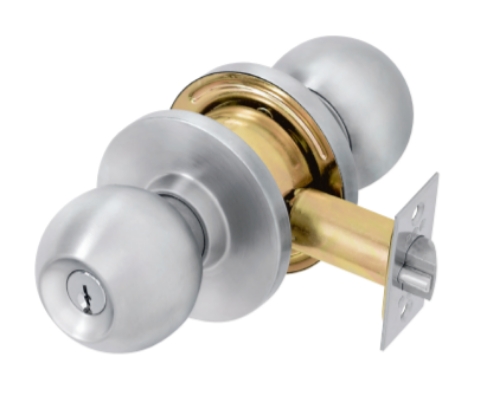

PDQ SX116 Entrance Grade 1 Heavy-Duty Ball Knob Cylindrical Lock - 32D - Satin stainless steel

PDQ SX116 Entrance Grade 1 Heavy-Duty Ball Knob Cylindrical Lock - 32D - Satin stainless steel

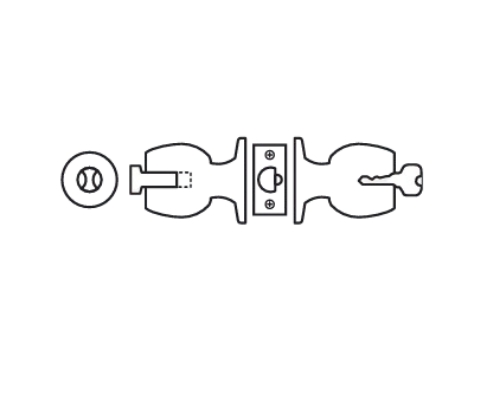

Function:Entrance

• Latchbolt operated by both knobs.
• Outside knob locked or unlocked by turn/push button.
• Inside knob always free.
• Pushing and turning button locks outside knob requiring use of key until button is manually unlocked.
• Pushing button only locks outside knob until unlocked with key or inside knob is turned.

ANSI:F109

Features: - UL listed for 3-hour fire door. - Exceeds ANSI/BHMA A156.2 Grade 1. - 5 standard functions. - Various strike and latch options to accommodate any opening. - Available in keyways of most major manufacturers. - Tactile abrasive coating option. - Antimicrobial coating option. - Five (5) year limited warranty

Product Specifications

FOR DOORS:  1-3/8" to 2" thick. DOOR PREP:  Fits Standard 160 or 161 Door Prep. BACKSET:  2-3/8", 2-3/4", 5". CASE:  Steel, Yellow Chromate Plate. FRONT:  2-1/4" x 1-1/8" or 2-1/4" x 1"  - Stainless Steel or Wrought Bronze. STRIKE:  4-7/8" x 1-1/4" (ASA). T or FL Strike Optional.  - Stainless Steel or Wrought Bronze. UL F LATCHBOLT:3 hours of fire testing qualified, stainless steel latch bolt. ROSE:  3" DIA. HAND:  Non-handed. TRIM:CQ ball knob. Stainless steel. KEYWAYS:  Available in keyways of most major manufacturers. CYLINDER:  Supplied standard to accommodate SFIC core. (Cylinder not included).KEYING:  Standard core is available and can be MK, CMK, GMK, or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers. FINISHES:  630 (US32D). WARRANTY:  Five (5) Year Limited Warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - Meets ANSI/BHMA A156.2 Grade 1 - UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

PDQSX116, PDQ SX116, SX116 PDQ, SX116PDQ, 630, US32D, PDQ SX116 630, US32D
