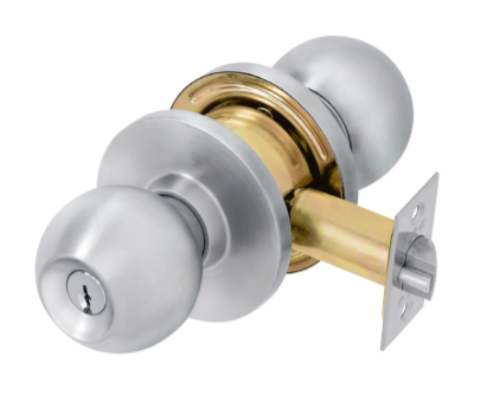

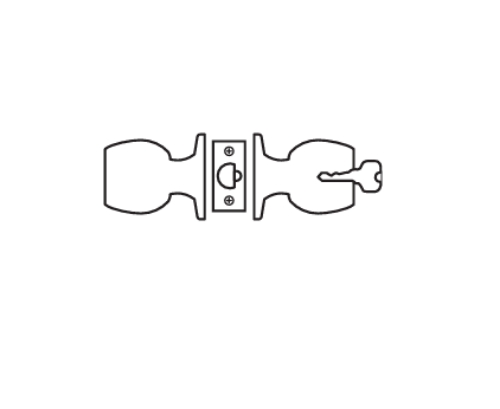

PDQ SX148 Classroom Grade 1 Heavy-Duty Ball Knob Cylindrical Lock - 32D - Satin stainless steel

PDQ SX148 Classroom Grade 1 Heavy-Duty Ball Knob Cylindrical Lock - 32D - Satin stainless steel

• Latchbolt operated from outside by knob except when locked from outside by key.
• Latchbolt operated from inside by knob at all times.
• Deadlocking (guarded) latchbolt

Function:Classroom ANSI:F84

Features: - UL listed for 3-hour fire door. - Exceeds ANSI/BHMA A156.2 Grade 1. - 5 standard functions. - Various strike and latch options to accommodate any opening. - Available in keyways of most major manufacturers. - Tactile abrasive coating option. - Antimicrobial coating option. - Five (5) year limited warranty

Product Specifications

FOR DOORS:  1-3/8" to 2" thick. DOOR PREP:  Fits Standard 160 or 161 Door Prep. BACKSET:  2-3/8", 2-3/4", 5". CASE:  Steel, Yellow Chromate Plate. FRONT:  2-1/4" x 1-1/8" or 2-1/4" x 1"  - Stainless Steel or Wrought Bronze. STRIKE:  4-7/8" x 1-1/4" (ASA). T or FL Strike Optional.  - Stainless Steel or Wrought Bronze. UL F LATCHBOLT:3 hours of fire testing qualified, stainless steel latch bolt. ROSE:  3" DIA. HAND:  Non-handed. TRIM:CQ ball knob. Stainless steel. KEYWAYS:  Available in keyways of most major manufacturers. CYLINDER:  Supplied standard to accommodate SFIC core. (Cylinder not included).KEYING:  Standard core is available and can be MK, CMK, GMK, or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing master key systems of other manufacturers. FINISHES:  630 (US32D). WARRANTY:  Five (5) Year Limited Warranty. CERTIFICATIONS, LISTINGS, COMPLIANCES:  - Meets ANSI/BHMA A156.2 Grade 1 - UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

PDQSX148, PDQ SX148, SX148 PDQ, SX148PDQ, 630, US32D, PDQ SX148 630, US32D
