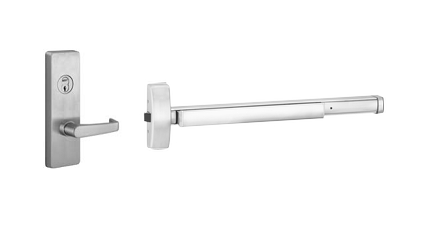

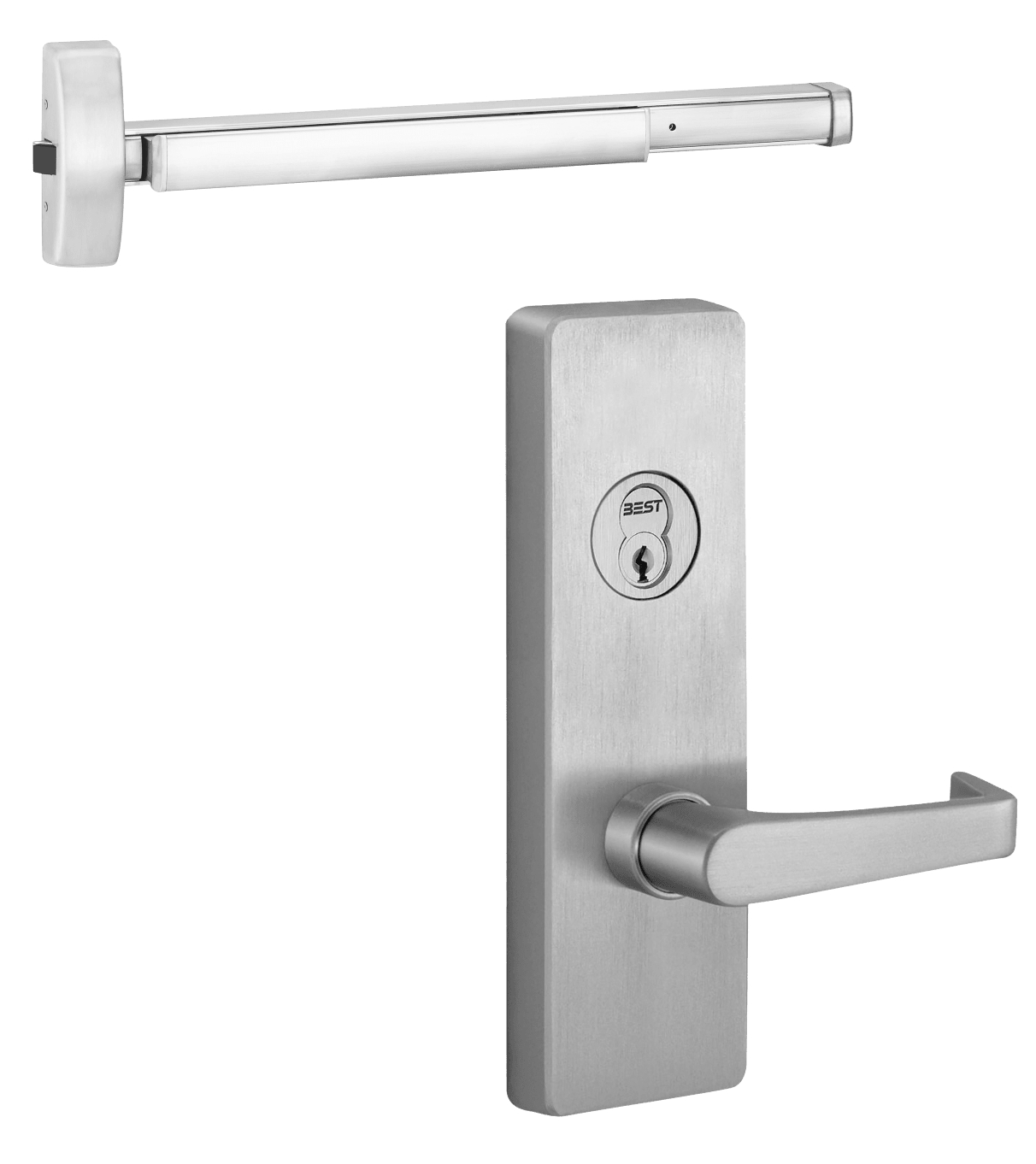

PHI Precision E2103-4908A Apex Electric Lock/Unlock Rim Exit Device, Key Retracts Latchbolt, With 4908A Trim

About this item

The PHI Precision E2103-4908A is an electric lock/unlock rim exit device from the Apex 2000 Series, paired with the 4908A key-retracts-latchbolt lever trim. It combines a 24VDC electric lock/unlock solenoid, a built-in SPDT monitoring switch, and a Grade 1 panic rim device in a single preassembled package. ANSI/BHMA A156.3 Grade 1 certified. UL listed for panic and fire exit hardware. Conforms to UL10C and UBC 7-2 positive pressure requirements. The inside touchbar always provides free egress. The 4908A lever trim controls exterior entry by key. Access control integration is handled by the electric solenoid. American Locksets is an authorized dormakaba PHI Precision dealer stocking the E2103-4908A with same-day shipping and free shipping on orders over $300.

PHI E2103 Electric Lock/Unlock Exit Device: How It Works

The E2103 is not an electric latch retraction (ELR) device. ELR retracts the latchbolt remotely. The E2103 electric lock/unlock function operates differently: the 24VDC solenoid electronically locks or unlocks the outside trim lever rather than the latch itself. When the trim is unlocked by the access control panel, the 4908A outside lever engages the latch mechanism and allows the door to open by key rotation. When the trim is locked, the outside lever is disabled and entry requires an electrical unlock command from the access control system.

The inside touchbar always provides immediate free egress from the interior at all times, independent of the electric state or power status.

Fail Mode: FSE Standard, Field Convertible to FS

The E2103 ships from the factory as Fail Secure (FSE). Power off means the outside trim is locked. Power on means the trim is unlocked for entry. This is the correct default for secured entry doors where a power failure must not create an unsecured opening.

The device can be field-converted to Fail Safe (FS) mode without returning to the factory. In FS mode, power on locks the trim and power off releases it, which is the correct configuration for fire egress doors and openings governed by life safety code requirements.

E2103-4908A Specification

• Function: Electric Lock/Unlock outside trim, ANSI Function 03 (key retracts latchbolt)

• Fail Mode: Fail Secure (FSE) standard. Field convertible to Fail Safe (FS)

• Voltage: 24VDC

• Solenoid Current Draw: 0.3 amps

• Monitoring Switch: SPDT, rated 2 amps at 24VDC. Monitors locked/unlocked status for access control panel integration

• Chassis: Investment cast steel, zinc dichromated

• Cover, Touchbar, Channel, Fillers, End Cap: Heavy wrought brass, bronze, or stainless steel. 628 aluminum finish devices include aluminum, brass, bronze, and stainless steel components

• Latchbolt: Stainless steel, deadlocking, 3/4 inch throw

• Strike: S300, investment cast stainless steel, black powder coated, furnished standard

• Touchbar Height: 39-15/16 inches from finished floor standard

• Dogging: 1/4-turn hex key dogging standard. Not available on fire-rated versions

• Handing: Reversible for all functions and trims. Standard packaging RHRB

• Door Width: 36 inch (for 2-7 to 3-0 wide doors), 48 inch (for 3-1 to 4-0 wide doors)

• Door Thickness: 1-3/4 inch to 2-1/4 inch

• Door Prep Coverage: ANSI A115.2 Type 161, A115.18 cylinder lock, and A115.1 Type 86 mortise lock preparation

• Cylinder: Rim type, not furnished standard. Specify when required

• Certifications: ANSI/BHMA A156.3 Grade 1. UL listed panic and fire hardware. UL10C / UBC 7-2 positive pressure compliant

• Retrofit: The 2100 Series is designed to retrofit other manufacturers' mounting hole locations. Specify "R" prefix (e.g., R4908A trim) when ordering for retrofit applications
