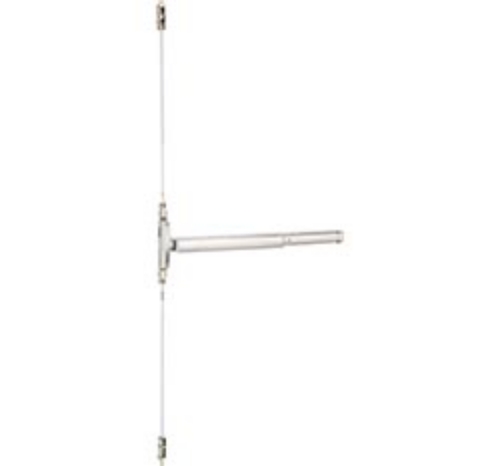

PHI Precision EFL2803 Apex Electric Lock/Unlock Concealed Vertical Rod Exit Device, Key Retracts Latchbolt, Fire Rated

PHI Precision EFL2803 Apex Electric Lock/Unlock Concealed Vertical Rod Exit Device, Key Retracts Latchbolt, Fire Rated

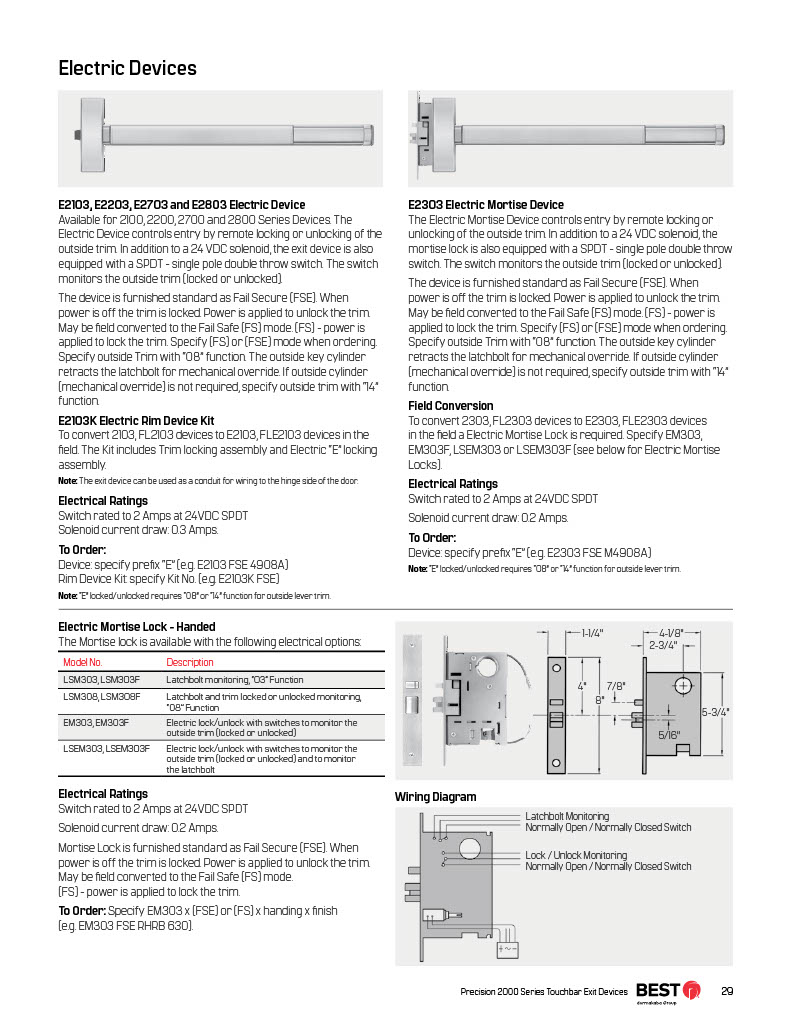

E2303 Electric Mortise Device:

The Electric Mortise Device controls entry by remote locking or unlocking of the outside trim. In addition to a 24 VDC solenoid, the mortise lock is also equipped with a SPDT - single pole double throw switch. The switch monitors the outside trim (locked or unlocked).

The device is furnished standard as Fail Secure (FSE). When power is off the trim is locked. Power is applied to unlock the trim. - power is applied to lock the trim. Specify (FS) or (FSE) mode when ordering. Specify outside Trim with 08 function. The outside key cylinder retracts the latchbolt for mechanical override.

Electrical Ratings:Switch rated to 2 Amps at 24VDC SPDT Solenoid current draw: 0.2 Amps.

Description and Features:

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model: Stanley-Precision E2303-605-36, E2303-606-36 , E2303-612-36 , E2303-630-36 , E2303-613-36, E2303-625-36  E230360536, E2303606-36 , E230361236 , E2303630-36 , E2303613-36, E230362536, E2303-605-48, E2303-606-48 , E2303-612-48 , E2303-630-48, E2303-613-48, E2303-625-48, E230360548, E2303606-48 , E230361248 , E2303630-48 , E2303613-48, E230362548, E2301-630, E2302-630, E2303-630, E2305-630, E2314-630, E2315-630
