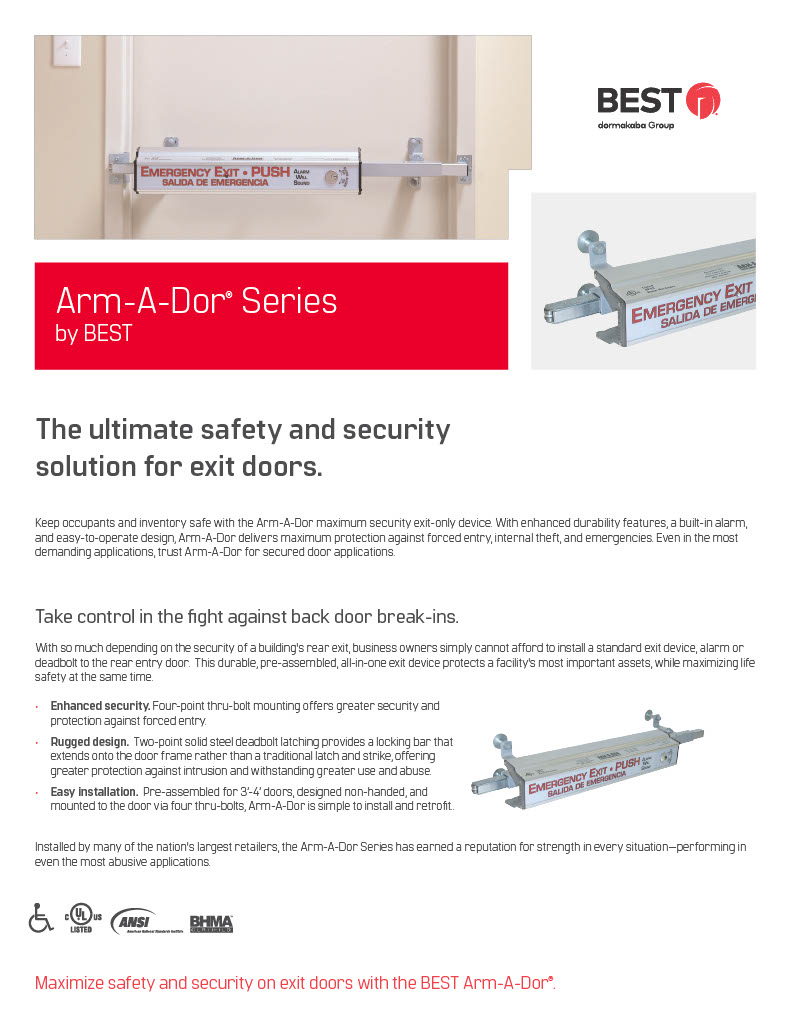

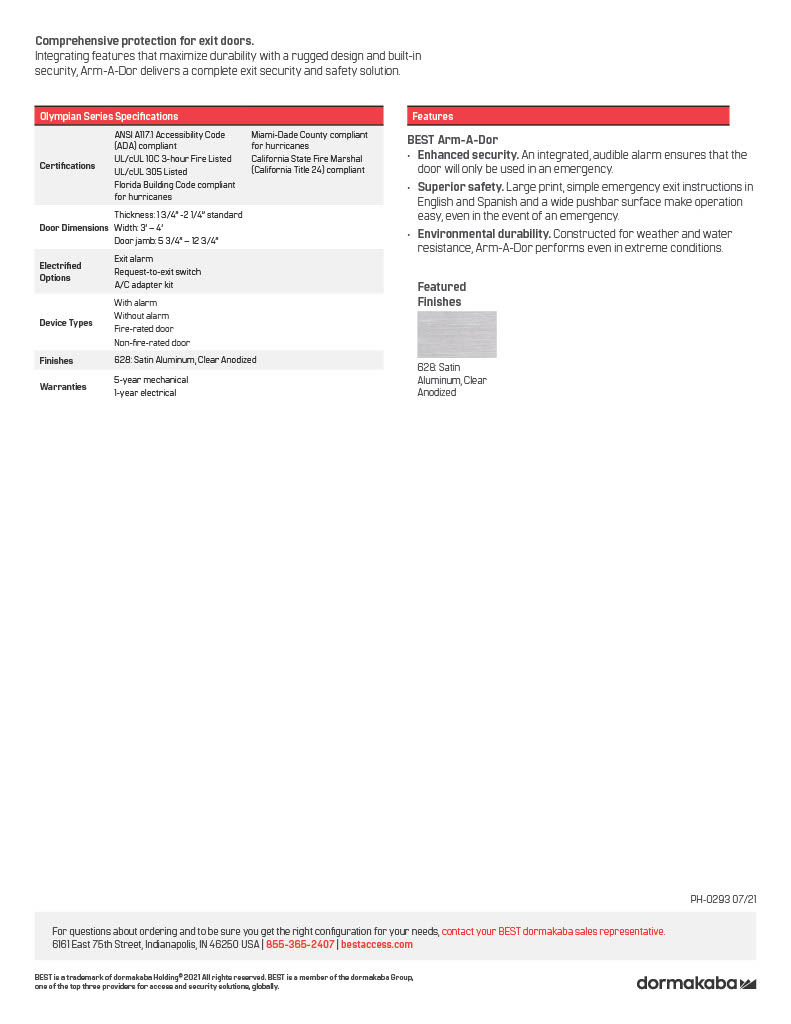

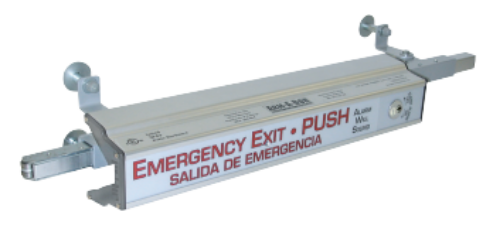

Precision A101-002-628 Arm-A-Dor Rim Exit Device W/ Alarm - Automatic Relock - For 3' to 4' Door Widths

Precision A101-002-628 Arm-A-Dor Rim Exit Device*W/ Alarm - Automatic Relock - For3' to 4' Door Widths - Aluminum*

Features:

Fits Door Widths:3’ TO 4’

Fits Jambs Up To:6 3/4"

Three Products in One:

 Locking Bar Security  Panic Exit Device with UL listing U.S. and Canada  Loss Prevention Alarm (when alarm equipped)Drop Bar Security:

 Provides resistance to forced entry attacks per UL1034 standard Locking members extend 1 1 /2" over frame on each sideCode Conformance:

 UL1034 Forced Entry UL 305 Panic Device Rating UL 10B, Fire Exit Hardware, 3 hrs. at 2000 F Dade County (Florida) Product Control Approved (Hurricane) NFPA 101 Life Safety Code UBC/BOCA ANSI 156.3 City of New York, Dept. of Buildings, MEA 292-96-EWorks with ANY Security System:

Alarm operated by standard or interchangeable core mortise cylinderOptional remote switch operates timed delay egress systems, cameras or other alarmsAlarmed Models:

 Battery operated – approx. 1-yr. life; two 9-Volt batteries included Low battery audible warning signal Loud alarm, 1 horn; 95 db @ 10 ft. Tamper Alarm Nuisance Alarm Re-arm reminder feature Optional AC adapter or hardwire kits Optional delay arming featureFlexible Installation:

 Quick Install models with pre-assembled 36" and 48" units Easy to follow six-step installation instructions Retrofit or new construction work  Non-handed Fits doors 36" to 48" wide Double-door applications work on fixed or removable center mullions or without mullion No special door preparation Works on any door or frame Shipped with required hardware for standard single door applicationsRelocking Choices:

 Automatic or manual modelsMechanical Efficiency and Durability:

 Roller design deadbolt means reduced friction and wear Touch-bar operates with straight push-through motion Weather and water resistant
