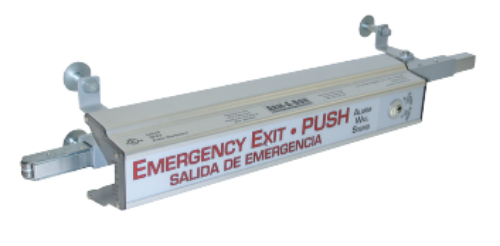

Precision A102-001-628 Arm-A-Dor Rim Exit Device - Manual Relock - No Alarm

Precision A102-001-628 Arm-A-Dor Rim Exit Device -*Manual Relock * - No Alarm - Aluminum

Features:

Fits Door Widths:3’ TO 4’

Fits Jambs Up To:6 3/4"

Three Products in One:

 Locking Bar Security Panic Exit Device with UL listing U.S. and Canada Loss Prevention Alarm (when alarm equipped)

Drop Bar Security:

 Provides resistance to forced entry attacks per UL1034 standard Locking members extend 1 1 /2" over frame on each side

Code Conformance:

 UL1034 Forced Entry UL 305 Panic Device Rating UL 10B, Fire Exit Hardware, 3 hrs. at 2000 Degree F Dade County (Florida) Product Control Approved (Hurricane) NFPA 101 Life Safety Code UBC/BOCA ANSI 156.3 City of New York, Dept. of Buildings, MEA 292-96-E

Works with ANY Security System:

 Alarm operated by standard or interchangeable core mortise cylinder Optional remote switch operates timed delay egress systems, cameras or other alarms

Flexible Installation:

 Quick Install models with pre-assembled 36" and 48" units Easy to follow six-step installation instructions Retrofit or new construction work Non-handed Fits doors 36" to 48" wide Double-door applications work on fixed or removable center mullions or without mullion No special door preparation

 Works on any door or frame Shipped with required hardware for standard single door applications

Relocking Choices:

 Automatic or manual models

Mechanical Efficiency and Durability:

 Roller design deadbolt means reduced friction and wear Touch-bar operates with straight push-through motion Weather and water resistant
