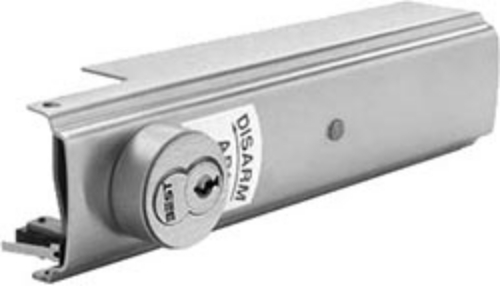

PHI Precision ALW Apex Alarm Kit, Wide Stile, Remote Powered

Available for all Apex Devices from 3-0 to 4-0 wide doors. Furnished with Touchbar decal which states:

ALW - Remote Powered 12 to 24 VDC at 0.25 Amp., a (2) wire power transfer is required, not furnished standard. Specify WH495 Wire Harness for External Wire features:

External Arm/Disarm (On/Off)
External Activation (to sound Alarm)

The Exit Alarm provides a simple way to audibly monitor the use of an exit device. The unit contains a Piezo Alarm which will sound when the touchbar is depressed. Alarm sounds at 80db at 10 feet.

It is also equipped with an LED indicator. The LED flashes GREEN for 20 seconds when the unit is arming and flashes RED every 20 seconds when the alarm is armed.

Note: Latch Bolt Monitoring (LS) or Door Position Switch (DS) .is recommended when using Alarm option with 2200 Series Surface Vertical Rod devices
