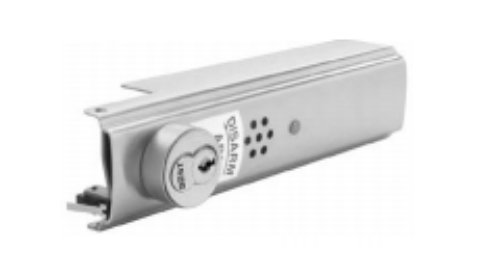

Precision NALK-630 Narrow Stile Exit Alarm Kit - Satin Stainless Steel

Precision NALK-630  Narrow Stile Exit Alarm Kit - Satin Stainless Steel

Available for all Apex Devices from 3-0 to 4-0 wide doors. Furnished with Touchbar decal which states:

"!! EMERGENCY EXIT ONLY!! PUSH TO OPEN  ALARM WILL SOUND"

 for Narrow Stile devices

Battery Operated, provided with a 9 Volt battery and has a audible low battery indicator.

The Exit Alarm provides a simple way to audibly monitor the use of an exit device. The unit contains a Piezo Alarm which will sound when the touchbar is depressed. Alarm sounds at 80db at 10 feet.

It is also equipped with an LED indicator. The LED flashes GREEN for 20 seconds when the unit is arming and flashes RED every 20 seconds when the alarm is armed.

The Exit Alarm requires a standard 1-1/4 Mortise Cylinder which is used as a key switch to perform the following functions:

 To turn on (Arm) - it will allow 20 seconds to exit before alarm sounds. Silence and reset the alarm after unauthorized egress. To turn off (Disarm) the alarm for continuous unmonitored egress. Engage mechanical Dogging for Non-Fire Rated Devices.
